Einleitung

This guide will help you replace the Hard Drive in your Gateway MA7 laptop. The hard drive for your laptop stores all of your computer's information. If your hard drive is corrupt it will need to be replaced in order for it to turn on. You can also replace the hard drive if you want to have more storage.

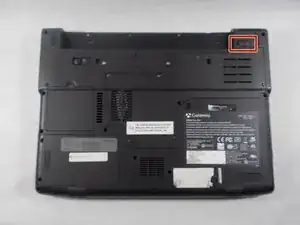

  1. ICmGgTIJpSbHKBKB
    • To prevent injury, make sure the laptop is unplugged and off before removing the battery.

    • To unlock the battery slide the switch to the right in the upper right hand corner.

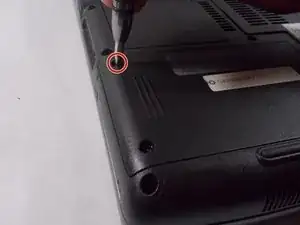

  2. ZIYJKgnNYwR6tnrl
    ZIYJKgnNYwR6tnrl
    XNUmJ5xCLDhD66UU
    5QnK1p4qBmXlpHE6

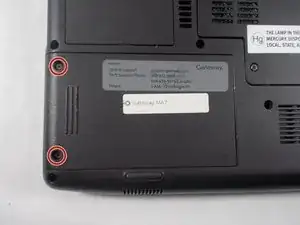

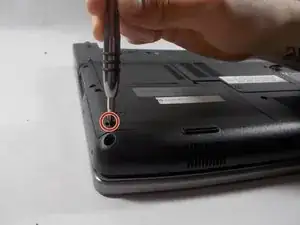

    • Remove the two 6 mm Phillips #0 screws from the back of the hard drive cover.

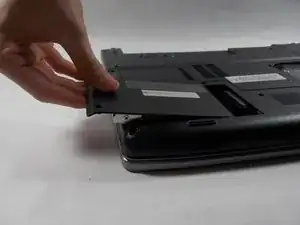

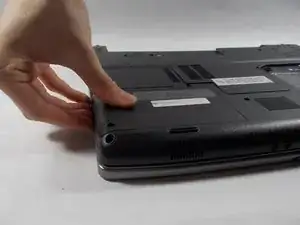

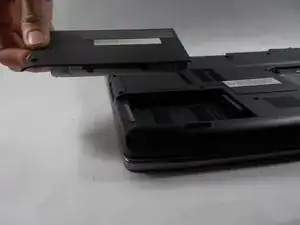

  3. PxIgOHtjNaLXgSMd
    PxIgOHtjNaLXgSMd
    cIXqRZfHwPTiKWuZ
    THaUoNRDRu41d4CC
    • Press down firmly on the hard drive and pull leftwards.

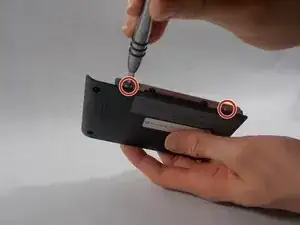

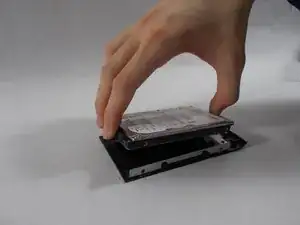

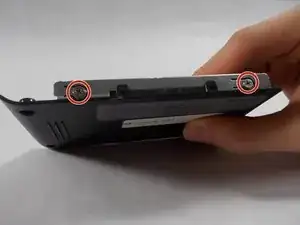

  4. yANBkvZC5RoKmHWL
    yANBkvZC5RoKmHWL
    rOqpyFEsyDygW1GM
    Eu5EYAptKEUHa3SJ
    • Remove two 4 mm Phillips #0 screws from the plastic hard drive cover.

    • Lift the hard drive up from the plastic cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
