Gateway MA7 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

More Random Access Memory (RAM) allows the laptop to run more programs simultaneously, and speed up certain processes. The Gateway MA 7 takes PC2-4200 DDR2 533Mhz 200PIN SODIMM RAM.

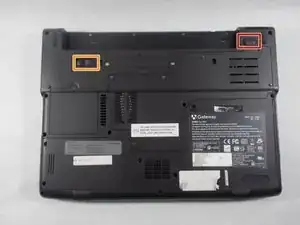

  1. A2xKRwCIPTvSZUCk

    • To prevent injury, make sure the laptop is unplugged before removing the battery.

    • Push the locking tab over to the right away from the battery to unlock it from the laptop.

    • Hold the additional locking tab to the left while pulling out the battery.

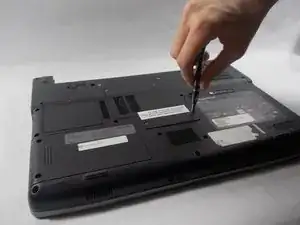

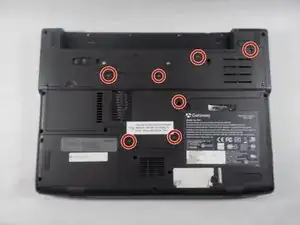

  2. KDTEBbrRJnA44TLX
    KDTEBbrRJnA44TLX
    IduOFK1VRgqLrQA6

    • Remove the following screws securing the plastic panel from the bottom of the laptop:

    • Seven 6 mm Phillips #0

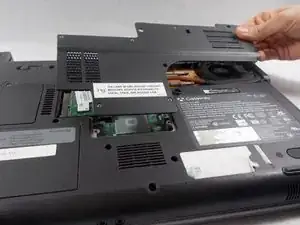

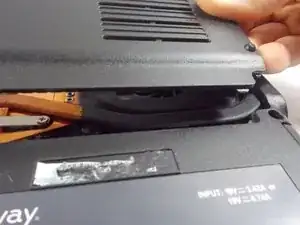

  3. GewwOwu6M25XSHTP
    GewwOwu6M25XSHTP
    yvuBIQSYQO6xsjpp
    JZEsDVqQH1bgjpJr

    • Pull upwards on the top of the plastic panel to remove it.

    • With the exception of the screw marked "K", all of the screws will remain connected to the plastic piece.

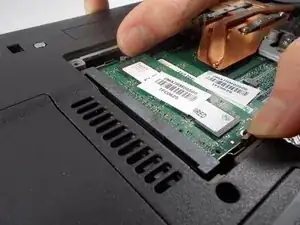

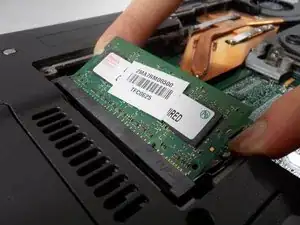

  4. Q5kijBTURNhMDopi
    Q5kijBTURNhMDopi
    lsigQFWQYPoEUypL

    • Push the two metal tabs (holding the module in place) apart in order to release it.

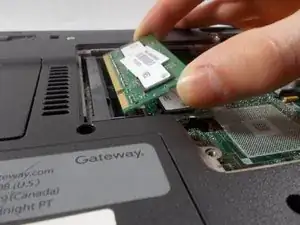

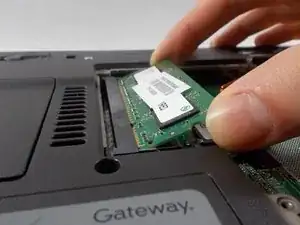

  5. USZSciCIWpRZFBJB
    USZSciCIWpRZFBJB
    QZeZnaSj3gNDw56x

    • Pull the ram out of the motherboard at a 45 degree angle.

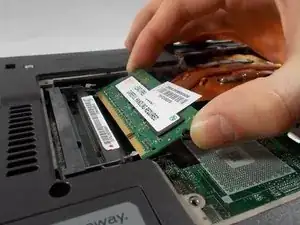

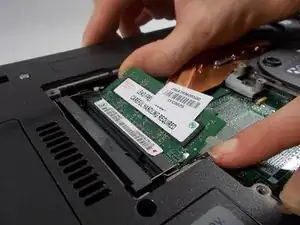

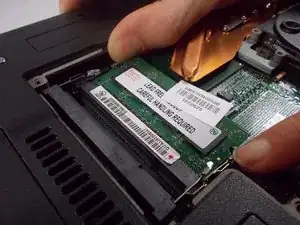

  6. pfOtma3cB3N4FFAy
    pfOtma3cB3N4FFAy
    mEJNHa5GgYGkEYsc
    63h42rEuJIQvOjfV

    • Repeat steps 4 & 5 for the other memory module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
