Gateway MD2614u RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

You are going to remove the back cover, locate the RAM, take out the RAM, and either replace it or reinstall it.

  1. GJBrNOTZkkT5ZiVR

    • Place the laptop so the back cover is facing up.

  2. JZIrJlkfyGBMKJMS

    • Remove the 8 screws from the back cover using the Phillips #00 screwdriver.

  3. 6XxpB5QCEnhIYtN1

    • Lift off the cover.

  4. MXAIEsRKIuXOuTHp

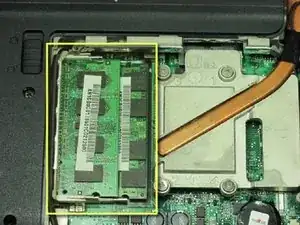

    • Identify the RAM, which is a stack of two green cards in the upper left-hand corner.

  5. Uq1UlttOTtRRuhbc

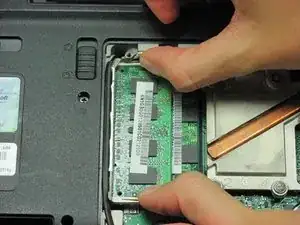

    • There are silver tabs on both sides of the ram. Simultaneously push the silver tabs outward.

  6. kP1eHsrgaDbjyaug

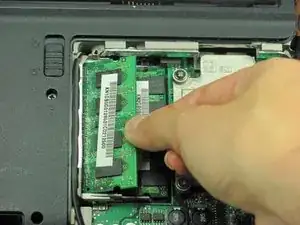

    • The card pops up 20 degrees and is loose enough to remove with your hand.

    • Carefully pull the card to the right horizontally.

  7. hOl1i1T2UrscJspe

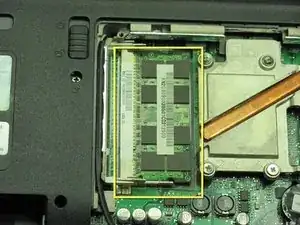

    • Follow the same steps for the second RAM card, which is under the one you just removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
