Gateway MD2614u Wireless Card Replacement

Geschrieben von: Toni Pipes

Kommentare: 0

Gateway MD2614u Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

In this guide, you will learn how to replace a Gateway MD2614u laptop wireless card. This replacement is meant to resolve a faulty wireless connection between your laptop and your router. There are different variations of Wi-Fi cards available on the market such as mini PCI-Express cards or M.2 cards with 2.5GHz/5GHz bands. Make sure to pick the one that corresponds to your specific needs and router speeds when replacing.

Symptoms may include slow internet connection, not being able to connect to new Wi-Fi broadbands, or weak connectivity issues. There are no special skills required to complete this repair besides a Phillips #00 screwdriver and your new Wi-Fi card. Remember to shut down and disconnect any external batteries or cords attached to the laptop before starting the procedure.

Werkzeuge

Phillips #00 Screwdriver

Schritt 1

Place the laptop so the back cover is facing up.

Schritt 2

Remove the 8 screws from the back cover using the Phillips #00 screwdriver.

Schritt 3

Lift off the cover.

Schritt 4

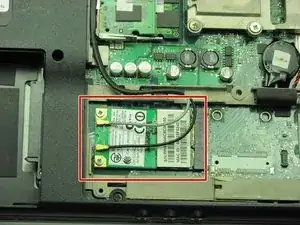

The wireless card is located to the right of the hard drive and below the RAM.

Schritt 5

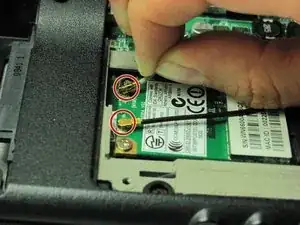

There are black and grey wires with gold heads attached to the top of the wireless card.
To remove these wires, turn the gold heads counterclockwise and pull up.
You will hear a snap when the heads come off.
It does not matter which wire you remove first, but do so one at a time.
