Gateway MS2285 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

This guide will teach you how to remove your RAM modules. Upgrading RAM is a common practice among users. One thing to note is that if you want to only remove the lower RAM module, you have to remove the top one first.

  1. pxYbLkQxWNhLBmEf

    • Turn the laptop over so that the underside is facing towards you.

  2. 4hVAPx6lhpCNIn1m
    4hVAPx6lhpCNIn1m
    3VSiKcPSoeXdsIIV

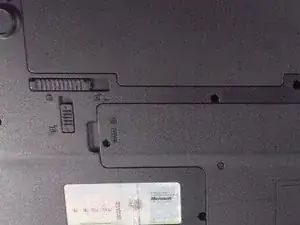

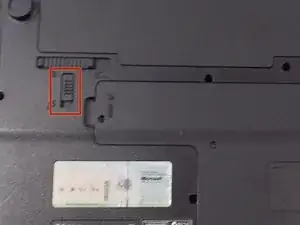

    • Slide the short slider one towards the unlocked lock symbol.

  3. R2eCtNHyLOyM6DNA
    R2eCtNHyLOyM6DNA
    lLlkWSpKl2Dkak6s

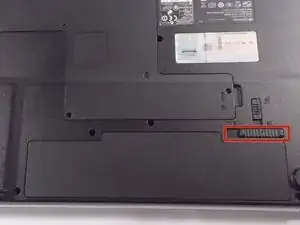

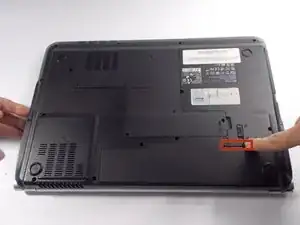

    • Slide the long slider towards the unlocked lock icon.

    • This slider is spring loaded and may require a little force.

    • If done correctly, a click will be heard and the battery will be slightly raised.

  4. PKKBmsnB6PfP4GMK
    PKKBmsnB6PfP4GMK
    kfNgG2cEgT6cLVL3

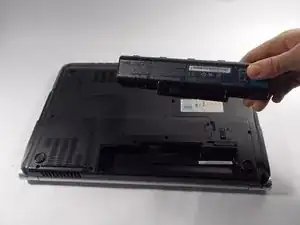

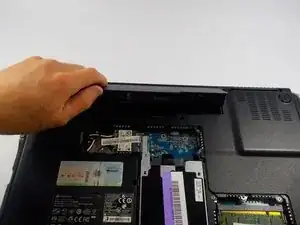

    • Grasp the battery's raised end and lift upwards.

  5. OuIFWytJIj1DcaRL
    OuIFWytJIj1DcaRL
    Mjh5ESBqmXkMtUnu

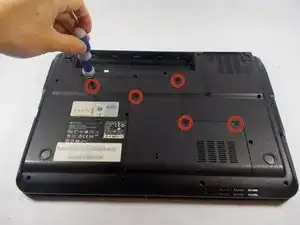

    • Use the phillips head screwdriver to remove the five screws holding the back plate.

    • The screws are counter-clockwise threaded.

  6. imlADFjGxwPeQHy4
    imlADFjGxwPeQHy4
    FCdhknZUnla1xBcL
    FIa6WIFZAYCjOft4

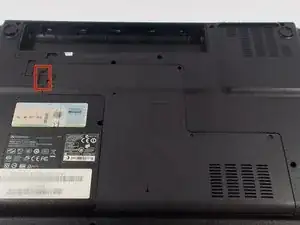

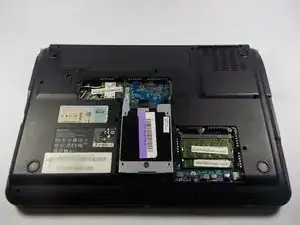

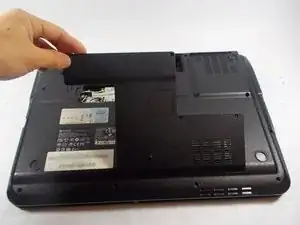

    • Place fingers under back plate via the indentation and lift upwards to remove.

  7. yL6YTGyfBxOWZBat
    yL6YTGyfBxOWZBat
    g2FDsUL1QQDDCMkf
    D6GMMYHlnGcWQK3L

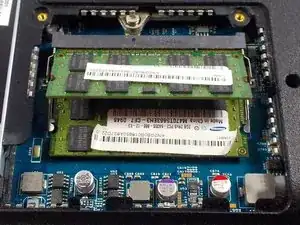

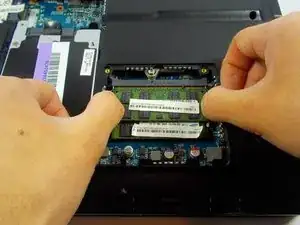

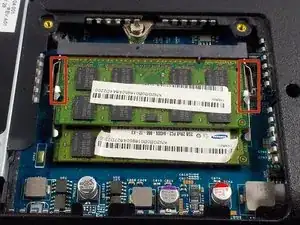

    • Push the upper RAM module's two pins outwards at the same time.

    • If done correctly, the module should have lifted.

  8. fXuKZEcwjbhhf41F
    fXuKZEcwjbhhf41F
    aKIMI4k5wtMPREA2

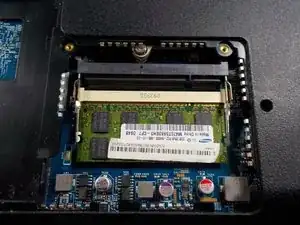

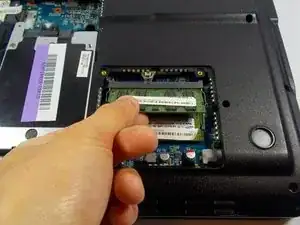

    • Grab onto the module and pull away in a straight direction.

    • Do not touch the gold connectors.

  9. mWBkVtOEEoP1yPlT
    mWBkVtOEEoP1yPlT
    w63r4fOTnLCZQWPD
    JbG1woHWRwTJG4Lo

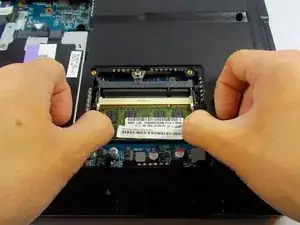

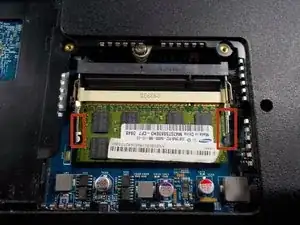

    • Push the lower RAM module's two pins outwards at the same time.

    • If done correctly, the module should have lifted.

  10. Rw14NFATRBBoETRc
    Rw14NFATRBBoETRc
    wROREEFYitkuMfUW
    EFS6rkTZXEQAOChG

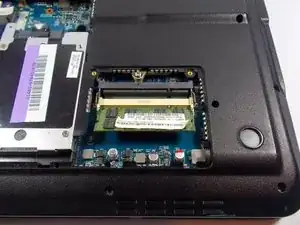

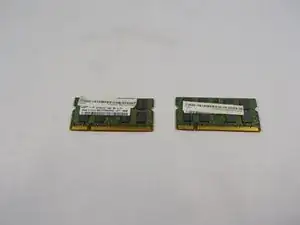

    • Like removing the upper module, grab the module and pull away in a straight direction.

    • Do not touch the gold connectors.

Abschluss

To reassemble your device, follow these instructions in reverse order.
