Gateway MS2370 RAM Replacement

Geschrieben von: Mathieu Bolduc-Clayton
  • Kommentare: 0
Gateway MS2370 RAM Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

25 Minuten

Einleitung

This guide shows the user how to properly remove the RAM from the Gateway MS2370 Laptop.

  1. vJst2HTWFMUkJpOl

    • Make sure the laptop is turned off and flipped over so that the bottom is facing up. Then, locate the battery clip as shown.

  2. PYadcH6QmlO1VU4a

    • Either using your fingers or a plastic spudger push the battery clip to the left to release battery.

  3. ZADa32LcCKeJifBj

    • Pull the battery from the laptop to remove it.

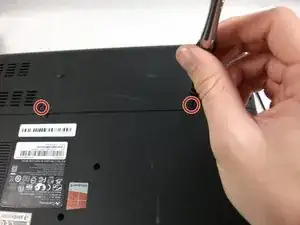

  4. 1ASSTNSTFZMhPwnY

    • Unscrew the three 10mm inch Phillips 01 screws on the back of your laptop.

    • Unplug everything from the USB and SD ports.

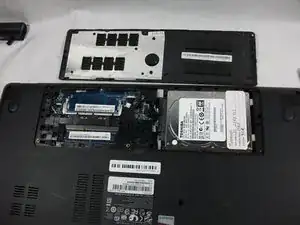

  5. PPnyNBESVoy1csDg

    • Remove the cover panel.

    • This exposes more screws that must be removed.

  6. yTV4MV6D5NC4sdfI

    • Unplug the two exposed cables from the motherboard.

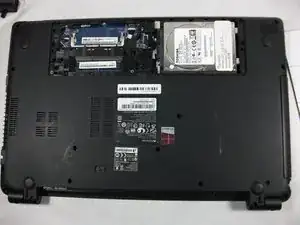

  7. NdjPwVSdIC6MjAws
    NdjPwVSdIC6MjAws
    hLYQNHmUfe3aqb3M

    • Unscrew the rest of the case screws which include several 10mm 01 Phillips screws and three 3mm 00 Phillips screws.

    • This marked screw will not fully come out. Just loosen it and leave it there it will not effect the rest of the replacement.

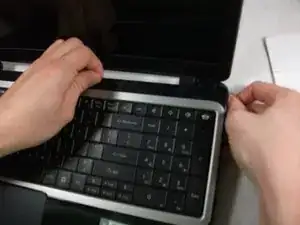

  8. gayZALHVdSFx1NCi
    gayZALHVdSFx1NCi
    Q2xWHaAJYruMMlh1

    • Pry the laptop case apart.

    • The disc drive in this photo was removed. You can remove it just by puling it out when the previous step is completed.

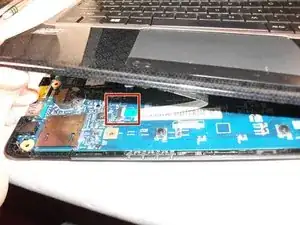

  9. ERRPOkGNvsBMZt6c

    • Unplug the track-pad and the keyboard ribbon cable by lifting up the grey flap and removing the cable.

    • This cable has a special connector the requires you to lift open a grey flap to unplug properly.

    • The keyboard plug is located at the center of the motherboard and can be unplugged like a normal cable.

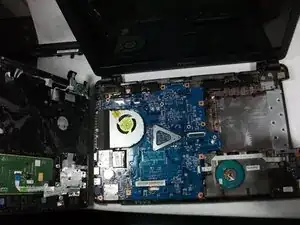

  10. vXPBlXcouDeKMYAa

    • Remove the top half of the case.

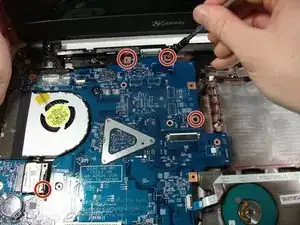

  11. oNqmSJeC1plPGBKv

    • Unscrew all 5 10mm inch Phillips 01 screws.

    • One more off screen

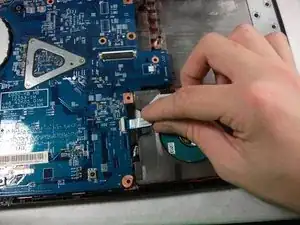

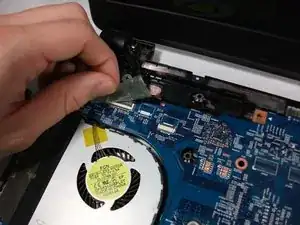

  12. MMQixv5jiCTSIT1j
    MMQixv5jiCTSIT1j
    W5dYKrFWj1ydOMih
    ULqiVtqKriSNPIfN

    • Unplug the ribbon cable connected to the USB Hub, the network card, and the monitor cable.

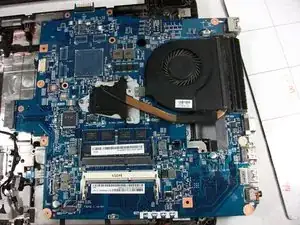

  13. OCyNSXvVtsAylZYM

    • Flip the motherboard over.

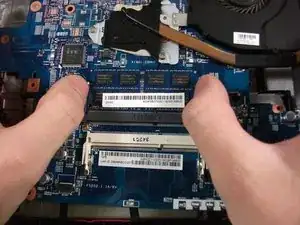

  14. XC5eISDVlGCssCXM
    XC5eISDVlGCssCXM

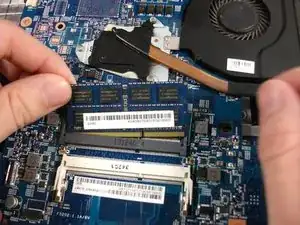

    UFwJasXUIRsgG6xF

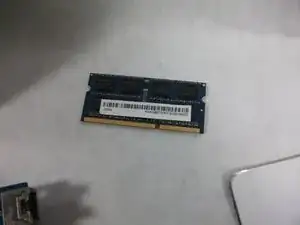

    yfrpXxi2hkfDRTYf

    • Using your two thumbs to pull outwards from the inside of the RAM slot to release and remove the RAM.

    • The last step of this replacement guide is not required to complete the fan replacement guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
