Gateway NE Series DC Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. hYswjv2Kj1y21OCu
    hYswjv2Kj1y21OCu
    4SKUWElQwlZ5o3A3

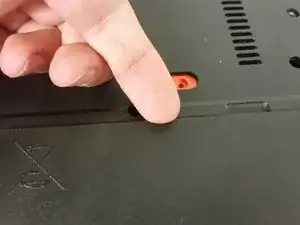

    • With the battery side of the laptop facing you, use a small-tip screwdriver or spudger to push the battery latch to the left.

    • Use your fingernail or a spudger to catch the battery after it lifts up. Pry the battery out. You're done!

  2. FOmvYqGi1BlsOQD2
    FOmvYqGi1BlsOQD2
    xiEHkqynAXaUX2Ks

    • Remove the two Philips screws securing the hard drive cover to the base.

    • Pry the hard drive cover off with a spudger.

  3. CsEnpOGmYsXldUj3

    • With the laptop's battery side facing you, pull the hard drive caddy's tab to the right.

  4. XdRJqIwsqSsoWeNI

    • This step is unnecessary if you are only taking the hard drive out for testing purposes or are removing the motherboard.

    • Remove the four screws securing the hard drive to the caddy.

  5. RXFXJsQIhCAj1RmB
    RXFXJsQIhCAj1RmB
    ahj4byfYUu2F2dUY
    SAC64rqLGUYmbQKs

    • The keyboard has no screws to remove.

    • Use a fine spudger to push all six keyboard tabs. On the first, you'll have to use a bit of prying to get under the keyboard. After that, get your fingernail under the keyboard, and pull gently as you go along the keyboard using the spudger to pop the other clips.

    • There is one un-pushable clip on each side of the keyboard. Don't try to push them. Instead, once you get the top of the keyboard up, pull the keyboard out of the clips.

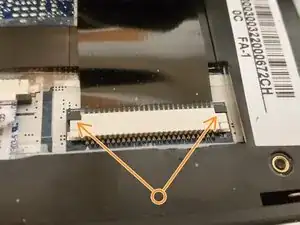

    • Gently push each side of the locking connector's lock towards the screen, and then pull the now-loose keyboard cable out. Set the keyboard aside.

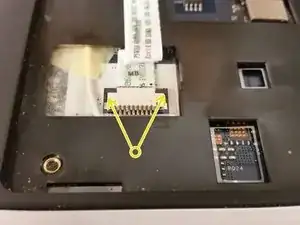

    • Gently push each side of the power button locking connector towards the screen, and then pull the cable out.

    • Do the same for the touchpad cable.

  6. efYrIDjkVBD1mtNJ
    efYrIDjkVBD1mtNJ
    1HQkY1O1oTGFDgkN

    • Flip the laptop over again.

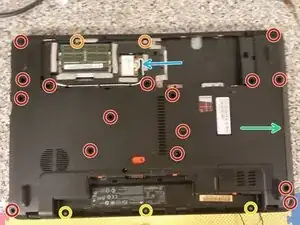

    • Remove the sixteen Philips M2.5x8 screws securing the palmrest.

    • Remove the two silver Philips M2.5x6 screws securing the palmrest.

    • Break out the Philips #0 bit, and remove the three silver Philips M2 screws securing the palmrest.

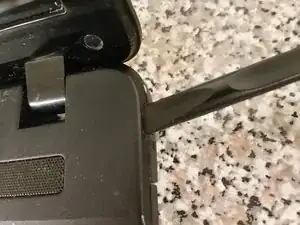

    • Use a spudger to separate the palmrest from the base.

    • Slide the optical drive out.

    • Remove the wireless antenna connectors, and then the wireless card.

  7. IIEuFWgtGwm4Amah

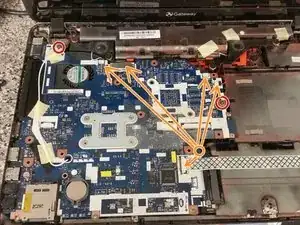

    • Back with the Philips #1 bit, remove the two silver M2.5x6 Philips screws.

    • Remove all cables from the motherboard, including pulling out the wireless antenna from its hole.

    • Flip the motherboard up. The DC jack is still connected to the board, so don't tug the board away just yet.

  8. JRshCFQl6yG6KWnE
    JRshCFQl6yG6KWnE
    HDoQPnSPhgEN1MkN

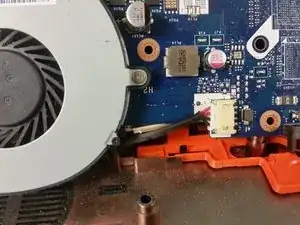

    • Pull back on the DC jack plug to remove it.

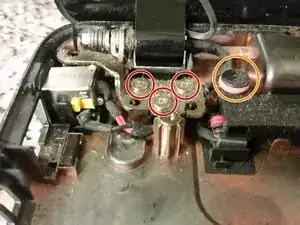

    • Remove the three M2.5x6 Philips screws securing the left hinge to the base. No need to remove the right hinge's screws.

    • Remove the two screws (one outside of picture) holding the left speaker.

    • Yank on the DC jack to free it. You're done!

Abschluss

To reassemble your device, follow these instructions in reverse order.
