Gateway NE52203u USB Port Replacement

Geschrieben von: Stephen Spees
  • Kommentare: 1
Gateway NE52203u USB Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 Minuten

Einleitung

So your laptop won't download data when you plug in a USB device? The problem is most likely a non-functioning USB port, and you'll have to replace it. This guide will provide you with the steps you need in order to replace your old USB port with a new one.

  1. QBXIFdF36LSXF5Cs

    • Flip the device over onto its backside in order to access the battery.

    Flip the device over to expose the backside to access the battery.

    Ashley Perkins -

  2. SYlOfpgGApPDmfOl
    SYlOfpgGApPDmfOl
    xLPFYmSPLmPBoguS

    • Locate the battery release latch and slide it over to the other side.

    • A small tool like a pen or screwdriver may be helpful in sliding the latch to release the battery.

  3. inAeORUlMqtIMwUH

    • Grab the newly ejected battery from the device to completely remove it.

    • When reinserting the new battery, make sure the prongs on the battery are aligned with the corresponding holes on the laptop.

  4. YNoH5pVjU6ropDpt
    YNoH5pVjU6ropDpt
    LQapPDykmexXBQUL

    • Remove 18 6.0 mm Phillips #00 screws from the bottom of the laptop.

    • Remove 5 6.0 mm Phillip #00 screws from under cover.

  5. nYvLYXdBD1CBCADI

    • Remove three 2.9 mm Phillips #00 screws from the battery compartment.

  6. ky2fBryfDRFZGpGe
    ky2fBryfDRFZGpGe
    1s4ZEdoMYjwh5VFu

    • Separate the bottom panel from the touchpad assembly by inserting a plastic opening tool between them on all four sides.

  7. uSMMKXj55J2RMKuL

    • Pull black ribbon wire from port using tweezers in order to completely separate touchpad assembly from bottom assembly.

  8. plrBeYiDNDqZMcVL
    plrBeYiDNDqZMcVL
    6x64NkTHBc62NlH3
    Rvy3p4lmMVqgQ4kx

    • Disconnect the two ZIF ports that attach the touchpad assembly to the motherboard.

    • First flip open the flap covering the ribbon using a spudger or fingernail.

    • Second gently pull the ribbon away from the port.

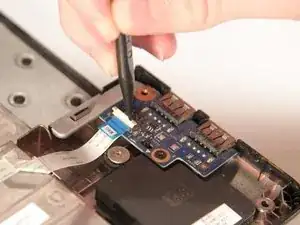

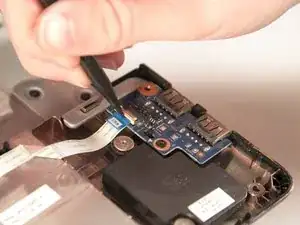

  9. vOVvNCpSWvvJnDO3
    vOVvNCpSWvvJnDO3
    6ZfLM3qEUepkWhpB

    • Using a spudger, pry the ZIF connector upwards.

  10. MVGu1ZLvTJfENGY2

    • Use your fingers to gently disconnect the ribbon wire from the USB circuit board.

  11. OKlCwaEBKYHZCTY6

    • Using a #00 Phillips head screwdriver, remove the 2.9 mm screw on the USB circuit board.

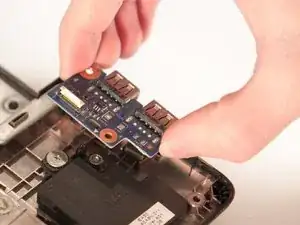

  12. S1VckZWvIaCgMGFl

    • Finally, remove the old USB port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
