Gateway NE56R27u Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

The main functionality of your Gateway NE56R27u depends on your ability to use the keyboard. Thus, if you find that your Gateway laptop is not typing properly, certain buttons no longer work, or you now have a short circuit due to damage, replacing your keyboard might resolve such issues. This will allow for a faster and easier operation of your device.

  1. exIMORKXLLKFj5to
    exIMORKXLLKFj5to
    6lPNprcRYGTBiIUZ

    • Using the spudger, push the orange tab to the unlock position.

    Do you have shots of before and after? For this kind of step, iFixit prefers flipbook style shots.

    Alex Watkins -

    You also used the screwdriver, not the spudger, in the image. Be sure to appropriately identify tools.

    Alex Watkins -

  2. GJgm5KPZTRTSZV31
    GJgm5KPZTRTSZV31
    XldfDsXDJnACBwTW

    • Lift the battery from its compartment.

    • When reinstalling, insert back end of battery first, then clicking into place.

    As before, include multiple shots to demonstrate how to do this. Also, since you’re not using the screwdriver, I would not include it in the background here.

    Alex Watkins -

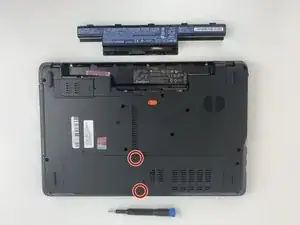

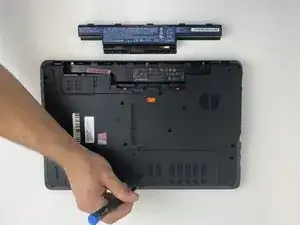

  3. 3y4avtC4qNOOHQLu
    3y4avtC4qNOOHQLu
    xPfSeNauyDfjr6ju
    M3YDSXOuCerFAoDW

    • Unscrew the two 7.9mm Phillips #0 screws that secure the service cover.

    Take pictures from first person perspective, rather than as if you’re watching the repair.

    Alex Watkins -

    Make sure to use appropriate bullets to match markup. What size are the screws?

    Alex Watkins -

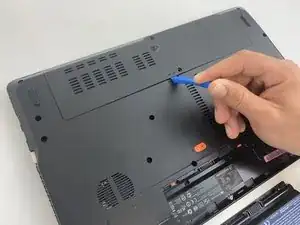

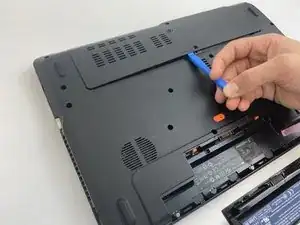

  4. XmX6KjVBAPoFTwHk
    XmX6KjVBAPoFTwHk
    Wq63n5RTOF1pk5N5

    • Use the opening tool to gently pry open the compartment covering.

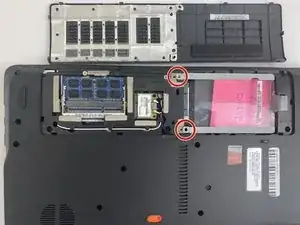

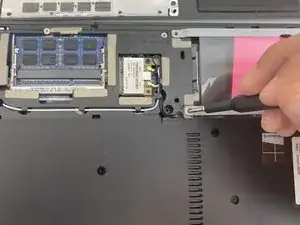

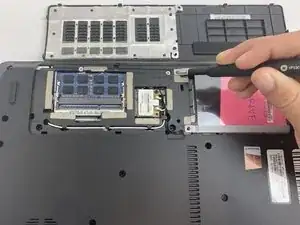

  5. Y1EVsiqlVlBJoxAd
    Y1EVsiqlVlBJoxAd
    qiRoM4XYOCFjJ2cQ
    VPbNKBaI1GJciom1

    • Unscrew the two 0.5mm screws from the hard drive brackets using the Phillips #0 screwdriver.

    • Pull the plastic tab attached to the hard drive to the right to remove the hard drive.

    • The hard drive plugs into the port on the left within the compartment. Be sure to gently remove the hard drive without damaging the port.

    For all screws, you need to include the measurements.

    Alex Watkins -

    Also, be sure to always use the appropriately colored bullets to match markup. I’m not marking additional instances of this issue, so be sure to check throughout.

    Alex Watkins -

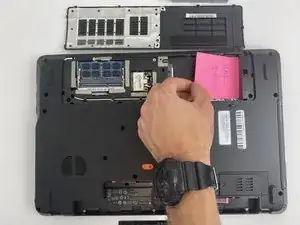

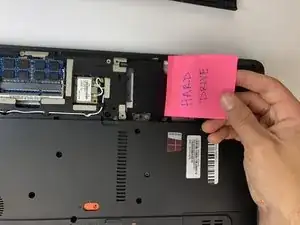

  6. WRoTg12DRXU2EbdE
    WRoTg12DRXU2EbdE
    JtsUBkhSsVvWGuQt

    • Remove the hard drive by lifting up the right side, releasing the hard drive from the compartment clips on the left.

    Can you add a final image of you removing the “hard drive” here?

    Alex Watkins -

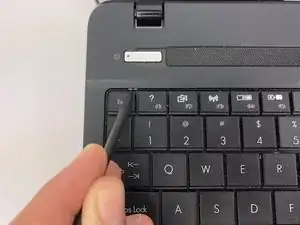

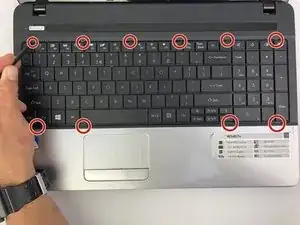

  7. eISxraRyDiYcIFLK
    eISxraRyDiYcIFLK
    iRgNemO1LBiDaNfW

    • Flip your laptop over to view the keyboard.

    • Using the spudger, push in the ten tabs at the edges of the keyboard.

    How many of the tabs are there? Where are they located? I would add a top down shot to mark up where all the tabs are located.

    Alex Watkins -

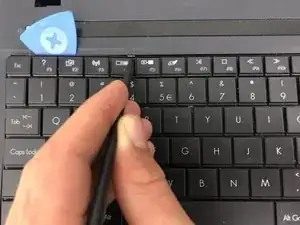

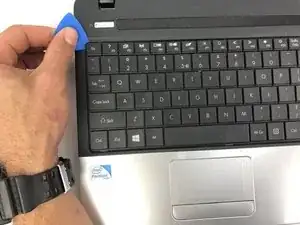

  8. RMBZIBNgwyYsDKGE
    RMBZIBNgwyYsDKGE
    QVEDKBT2FbtpVYlv

    • Using the opening pick, lift the edges of the keyboard.

    • Repeat around the edges of the device.

    • Lift up the keyboard to expose the cables underneath.

    I think that step 8 and step 9 could be combined here.

    Alex Watkins -

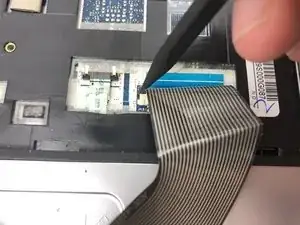

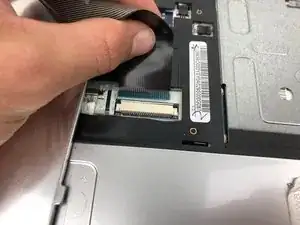

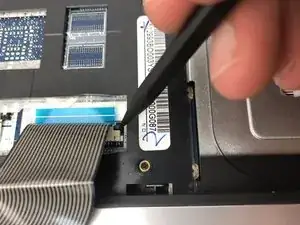

  9. 4gfwtyjPhbZVLUKK
    4gfwtyjPhbZVLUKK
    xZWBESJUYTAjNsZ2
    DC1CHoQISsRZABam

    • Release the clamp holding the mini-DIN cord by lifting the two black tabs on either side.

    • Gently pull the mini-DIN cord out of the clamp.

    • Remove the keyboard.

    Be sure each step is a command. What are you asking the user to do in the first bullet?

    Alex Watkins -

    The last picture seems to change the orientation, which is a little confusing for me. Try to maintain the same perspective.

    Alex Watkins -

Abschluss

To reassemble your device, follow these instructions in reverse order.
