Einleitung
There will be prerequisites that you need to be complete before displacing the Hard Drive. The prerequisites are available to you in the repair guide manual.
Werkzeuge
-
-
Remove the five identical 3/16" Phillips screws that secures the hard drive and memory cover using a Phillips #0 Screwdriver.
-
-
-

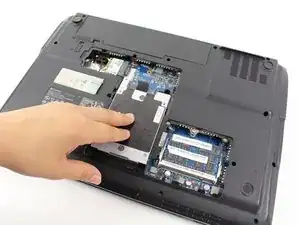

Lift up the base cover from the the top with your hands to a 90 degree angle.
-

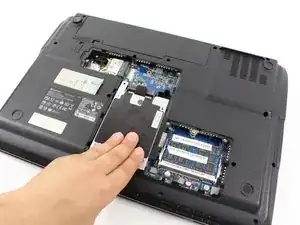

Remove the base cover and place it in a safe and dry place.
-
-
-
Remove the 1/4" Phillip screw located at the top right of the Hard Drive using a Phillips #0 Screwdriver .
-
-
-

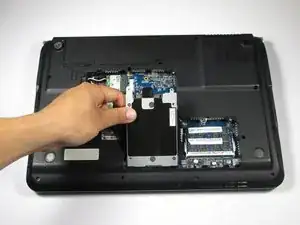

Remove the Hard Drive component from its compartment. To do so, slide the component downward away from the battery pack.
-

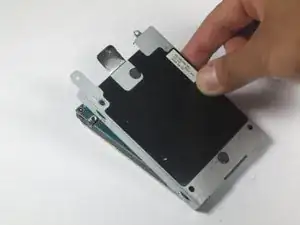

Lift the Hard Drive to a 90 degree angle and out of its slot.
-
Place the Hard Drive in a designated zone.
-
-
-

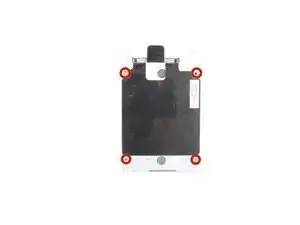

Remove the four identical 1/8" Phillip screws located in every corner of the Hard Drive using the Phillips #0 Screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
