Gateway NV55C49u RAM Replacement

Geschrieben von: Matthew
  • Kommentare: 0
Gateway NV55C49u RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

If your laptop is running slowly, or crashing unexpectedly, the issue could be with faulty or insufficient RAM. Use this guide to upgrade or replace the laptop’s RAM. The RAM replacement is fairly simple on this laptop because it doesn’t require a full disassembly.

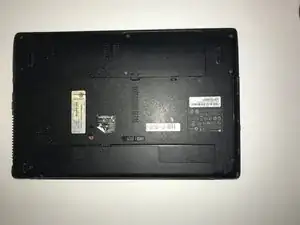

  1. SVSETcesIU6TMXpp

    • Flip the laptop bottom side up.

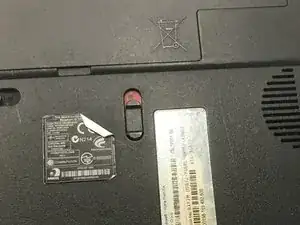

  2. MaeDxGAxmNZrLHWr

    • Slide the battery lock to show the red background.

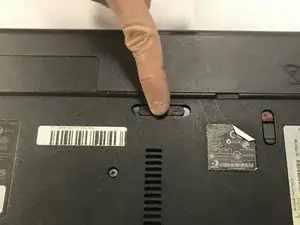

  3. v1KYqPniHRoRtoMD
    v1KYqPniHRoRtoMD

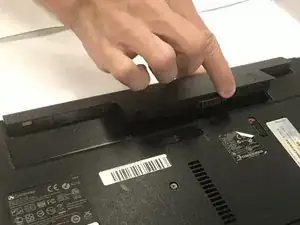

    Ta3rKGQ6RHXqfQSu

    • Push the battery slider to the other side. This will automatically eject the battery.

    • You can now remove the battery.

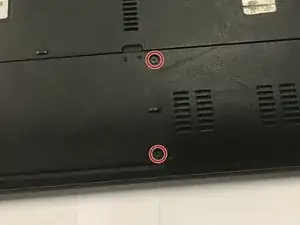

  4. fe5G4iHGUb2rFTie

    • Remove the two 6.0mm Phillips #00 screws from the back cover.

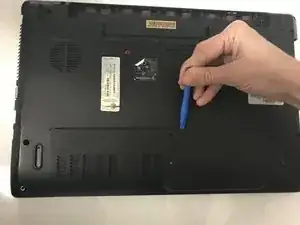

  5. G1ITRJhBsMj3CNBi
    G1ITRJhBsMj3CNBi

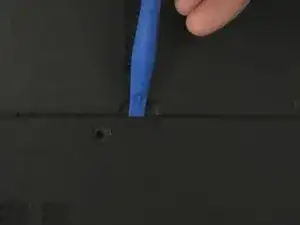

    e3ZmBVnslnbDoUxN

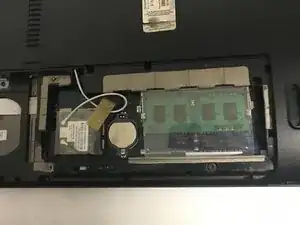

    sWN4KnJW1vTLhJG6

    • Remove the back cover by placing the plastic opening tool in the indention, and prying upwards.

  6. LmXsbCoCGXPSr1CA
    LmXsbCoCGXPSr1CA

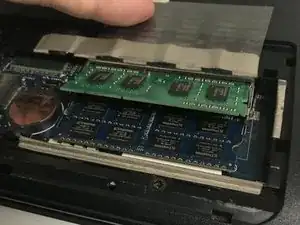

    OIPAbFbfM3DahmjL

    • Hold back the plastic that protects the RAM so you can access the clips underneath.

    • Gently push the holding clips outwards. The RAM will angle itself upwards.

    • Gently remove the RAM from the laptop

    • Make sure not to touch any part of the RAM except the sides.

    • When reassembling, insert the RAM into the connector, and then push it down until the clips lock it into place

Abschluss

To reassemble your device, follow these instructions in reverse order.
