Einleitung

    • At both sides of the bottom of the screen, there are screw covers. Use a flathead screwdriver to remove them.

    • Behind each of them will be a screw. Unscrew each screw.

  1. LAZDVFQ6jHlVGCHJ
    • Use a spudger to remove the bezel.

  2. SBDTne5A44YgElBc
    • At each corner of the LCD will be one screw to remove. Remove each screw, disconnect the webcam (if applicable), and pull back on the lid.

    • Don't forget to disconnect the webcam before pulling the lid back!

  3. kKDXCMUZ3bZQARZb

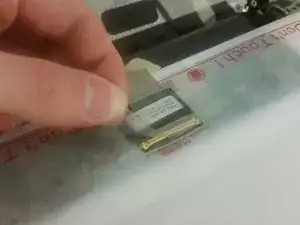

    • Separate all of the tape from the back of the LCD screen, and then pull straight back on the cable to remove it from the LCD.

  4. 1ekv3TVJJaWlW3OW

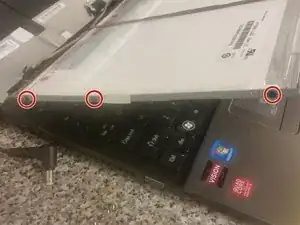

    • On each side of the LCD, there are three screws holding it. Remove all of them. You're done!

Abschluss

To reassemble your device, follow these instructions in reverse order.
