Gateway NV57H50u Wireless Network Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

To network card allows the device to access wireless networks. To access this part the rear cover will need to be removed.

  1. OCy5nKnuBRlLbRHE
    OCy5nKnuBRlLbRHE
    TlyoNBkXvOVNxPHp
    U4SMdCXqhtbmnZZB

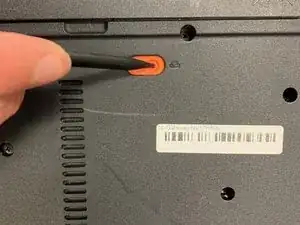

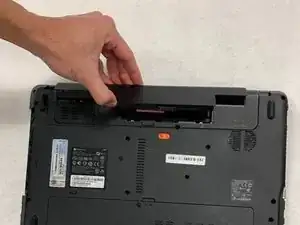

    • Push orange locking tab with spudger right, until battery lifts out of place.

    • Laptop should be unplugged from power supply before removal.

  2. tQE6bFVNC2XK2MMd

    • Unscrew the two 7 mm long #0 Phillips screws.

  3. AhKxpheUGR62WWwG

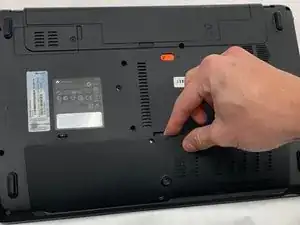

    • Lift and remove the cover panel via the indentation in the middle of the panel.

  4. xLRcsTrcBIPmDvSN

    • Dislocate the white wire by pushing upward away from the network card.

  5. rFtLPOYBunRbv4V2

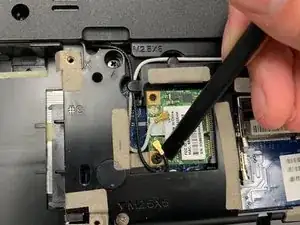

    • Dislocate the black wire by pushing upward away from the network card.

  6. GPVaIUcopW6gNxtS

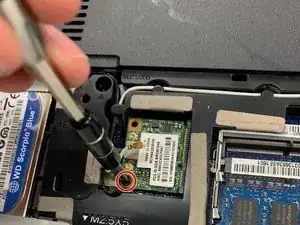

    • Unscrew the 3 mm long #0 Phillips head screw.

  7. RQhNiDaIfGKEUmgU

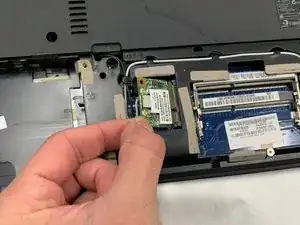

    • Pull the card outward to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
