Gateway NV59C66u LCD Display Replacement

Geschrieben von: Brian Walker
  • Kommentare: 0
Gateway NV59C66u LCD Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

40 Minuten

Einleitung

If your computer screen seems damaged or won’t light up at all, you may need to replace the LCD display. Here is a step by step guide to replacing your LCD display safely and in a timely manner.

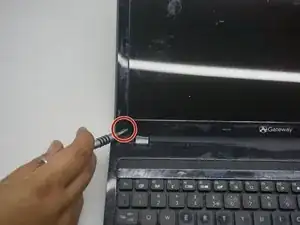

  1. qVHTGOVLxFMmDXTw
    qVHTGOVLxFMmDXTw
    gMMvqoeNHSbGicsJ
    NkiPEHXKZFHZwB5f

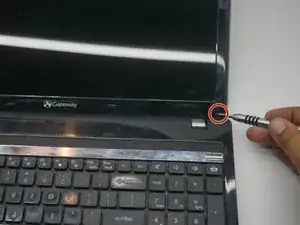

    • Remove the black covers over the two screen screws on the bottom corners and unscrew them with a Phillips #0 screwdriver.

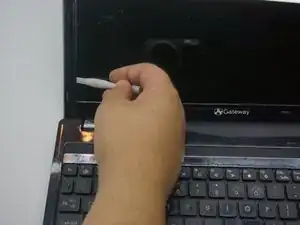

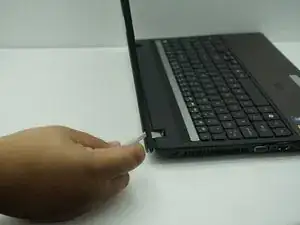

  2. XE2dAtSA2EJCyKSE
    XE2dAtSA2EJCyKSE
    2UaGQUevHIhPZHrf
    LnaahQMSuHm6Vh6t

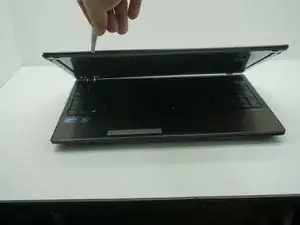

    • Now gently remove the screen cover by pulling it apart on all sides with a plastic opening tool.

    • The plastic frame surrounding the screen is very thin and can become brittle with age. Take your time when working the edges to prevent cracking the bezel.

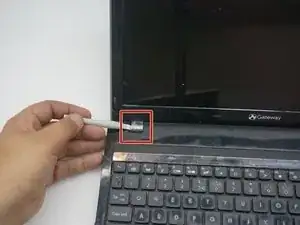

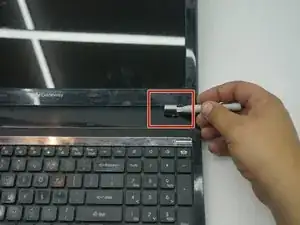

  3. QZVHkQY34tNPTHkK
    QZVHkQY34tNPTHkK
    tw4cDvpvvEjfoiak

    • Carefully pull the latches off with a plastic opening tool.

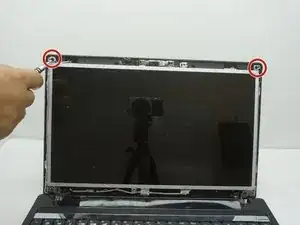

  4. RiNMR6qYJ1MAEkTS

    • Use a Phillips #0 screwdriver to remove the screws located in the top corners of the screen

    • make sure to keep all screws nearby and in a safe location so you don't lose them.

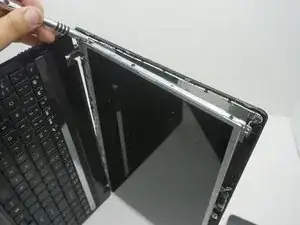

  5. 3FDDheM1WAyTmNcU
    3FDDheM1WAyTmNcU
    NYQdja5Qv2cr26Qx

    • Carefully pop the screen out but do not disconnect it from the cables just yet.

  6. wBpCwWVn5Jv1tVcJ

    • Be sure to support the screen so the cables are not pulled tight. Setting the computer on it's side can help with this.

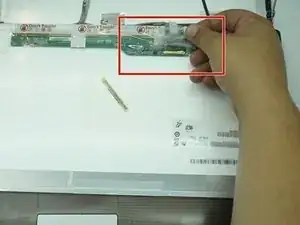

  7. RUYjIPaY46erpwEw
    RUYjIPaY46erpwEw
    2aGG6JCa6MDmeflm
    WtDREOAuSEolFYEV

    • Disconnect the LCD cables on the back of the screen and then remove the screen.

    • set the damaged LCD display to the side and grab the new LCD display.

    • Make sure to support the new LCD screen like you did the damaged one, and slowly reconnect the cables to the new display. Make sure the cables are in the right place.

    • set the new LCD screen in the computer make sure it is secure.

    • Screw in all the screws to hold the screen in place.

    • reset the plastic case to hold the screen in place.

    • Put all latches in the lock position and lightly press the plastic border to the screen to make sure it's in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
