Gateway NV59C66u Wireless Card Replacement

Geschrieben von: Jackson Gandee
  • Kommentare: 0
Gateway NV59C66u Wireless Card Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

40 Minuten

Einleitung

  1. fOcAPrEF5lOWApMw

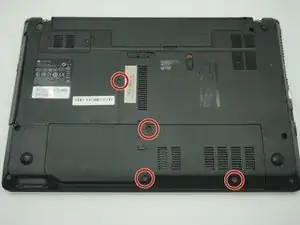

    • Remove the four Phillips #0 screws from the service cover on the back of the laptop.

  2. Ggs2Qp65twaCftoJ

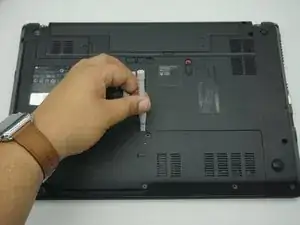

    • Gently remove the cover to gain access to the wireless card.

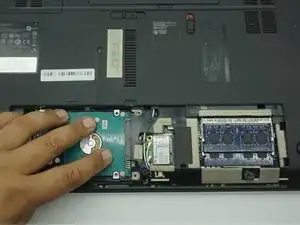

  3. vH5I2oqP2sQVlTtg
    vH5I2oqP2sQVlTtg
    WnsvmYAMeIF6JmKU
    mffv4ggxHryqlSCm

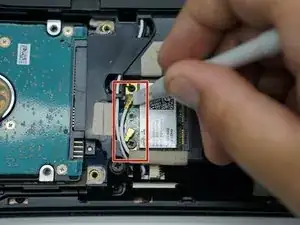

    • Pop the two coaxial antenna cables up from the wireless card with a plastic opening tool.

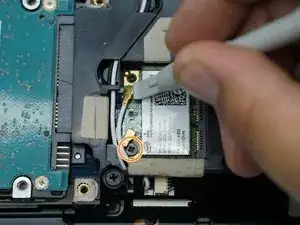

    • Unscrew the one Phillips #0 screw holding down the wireless card.

    • Remove the wireless card by sliding it out from its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
