Gateway P-6831FX Hard Drive Replacement

Geschrieben von: Chandler Jardin
  • Kommentare: 0
Gateway P-6831FX Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

The hard drive is a component that will act as storage for your device. This guide will go over how to remove and replace the hard drive for the P-6831FX.

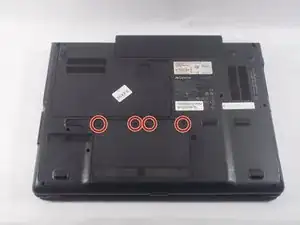

  1. yUYW1qIXcvIVTAXq
    yUYW1qIXcvIVTAXq
    EWU5XBAIRGaptKep

    • Turn your laptop upside down and remove the four Philips #0 (5mm) screws for the cover of the hard drive.

    • Make sure to unplug your laptop charger, as removing the hard drive while the device is charging may damage the hard drive and or the charger.

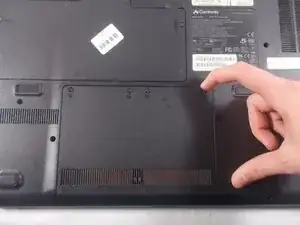

  2. SdfXeFFlVET6tyF2
    SdfXeFFlVET6tyF2
    4YWMvXOJOpsCbZHo

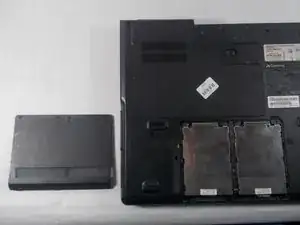

    • Gently pull the cover away from the device.

    • Set the cover aside for now, until reassembly.

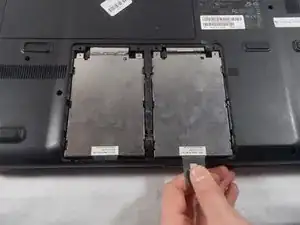

  3. weSLunESwQLYwSJF
    weSLunESwQLYwSJF
    PifatSvSr2pKRdck

    • Pull the plastic tab as shown to remove the hard drive from the device.

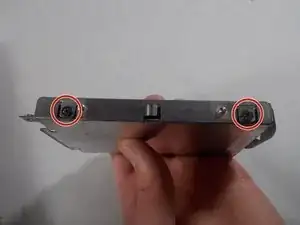

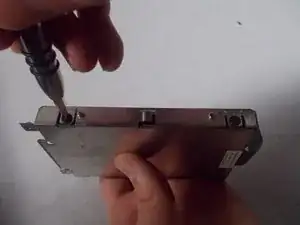

  4. ZnfVC5uDKd22n1jX
    ZnfVC5uDKd22n1jX
    xq5pxTctlwuWVqZV

    • Remove the four Philips #0 (3mm) screws around the case for the hard drive. There will be two screws and the left and right side.

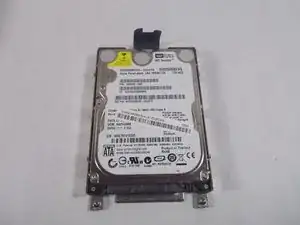

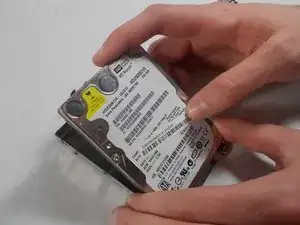

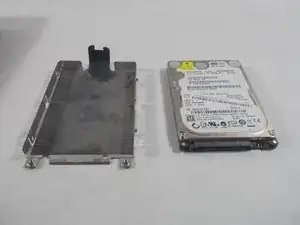

  5. wMahWn4BvYTkhaqm
    wMahWn4BvYTkhaqm
    UYoEUAHOUF6Ipqvy
    PNVXcYJgb2amXf3A

    • Remove the hard drive from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
