Gateway P-6831FX Heatsink Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The Heatsink is a component that will expel heat from a generating source for your device. This guide will go over how to remove and replace the heatsink for the P-6831FX.

  1. A4lZlmaJCI5Gabgo
    A4lZlmaJCI5Gabgo
    KAKiJCtLimVVkFQe

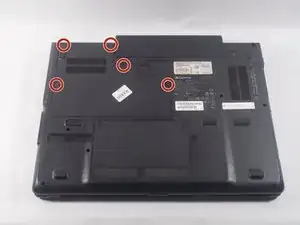

    • Turn your laptop upside down and remove the five Philips #0 (5mm) screws for the cover of the Heatsink.

    • Make sure to unplug your laptop charger, as removing the Heatsink while the device is charging may damage the Heatsink and or the charger.

  2. 1bfOKH2HeDrwUWXW

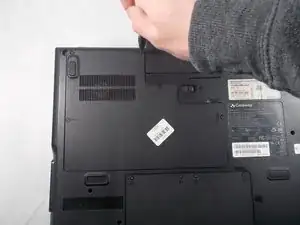

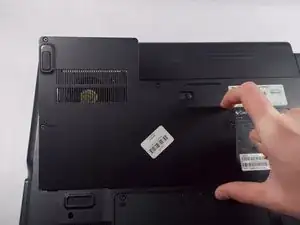

    • Gently pull the cover away from the device.

  3. MJiDycqZTIYOulbi
    MJiDycqZTIYOulbi
    Lb2H3xiSxVAnHlbH

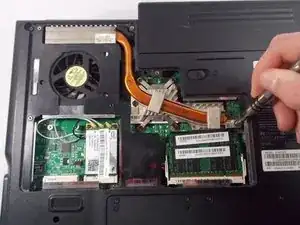

    • Remove the five Phillips #0 (5mm) screws around the Heatsink.

  4. E5fwePe2rC3xaGIn
    E5fwePe2rC3xaGIn
    efNi2CwNQ6RlMhX2

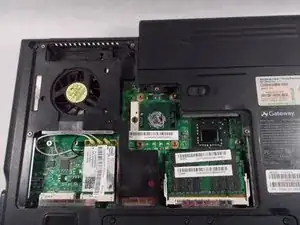

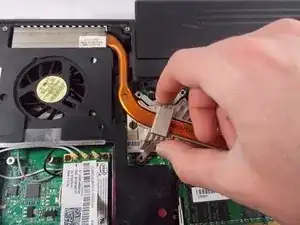

    • Gently pull the Heatsink up and away from the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.
