Gateway P-6831FX Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

The keyboard is a component that will allow you to type and input commands on your device. This guide will go over how to remove and replace the keyboard for the P-6831FX.

  1. Xxy2GqJFQlA4T5yF

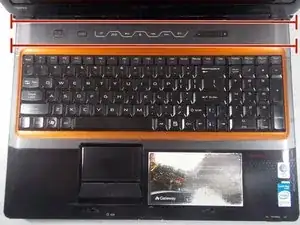

    • Open your laptop and lay it flat

    • Locate the speaker grill/interaction bar.

  2. DQIaPORHACOFveJq
    DQIaPORHACOFveJq
    MYUxfjfYL25AtwMS
    GeDKjbQQiRwEhJPm

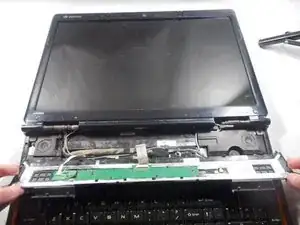

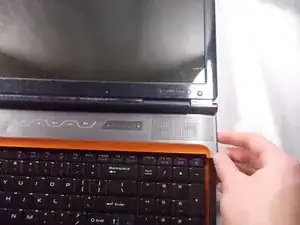

    • Remove the speaker grill/interaction bar by pulling up at both edges.

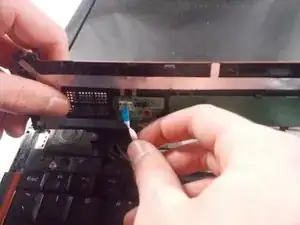

  3. Dx3lQBDkpPdQkOaN
    Dx3lQBDkpPdQkOaN
    oRsoeaADGCy41NG6
    nnFMwcHQ1OrpLgUy

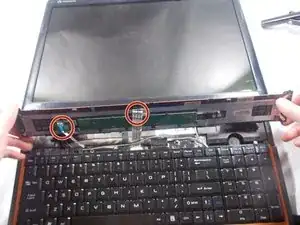

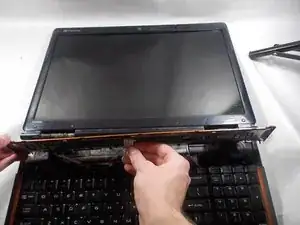

    • Detach the two ribbon cables on the underside of the keyboard.

  4. mCyIq5UHAWPxpU1v
    mCyIq5UHAWPxpU1v
    DNHflvJwOVegWagj

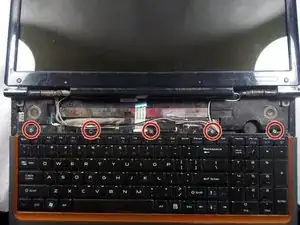

    • Remove the five Philips #0 (3mm) screws securing the keyboard in place.

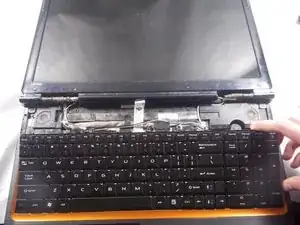

  5. mLQnCgCxWP5WWVZM

    • Pull the keyboard up and away from you.

  6. GKIPOQ5ZGVvNXdSw
    GKIPOQ5ZGVvNXdSw
    YBbiFUTRQEHINUhX

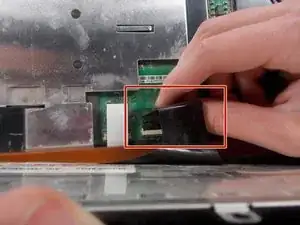

    • Remove the ribbon cable attached underneath to the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
