Gateway P-6831FX WiFi Card Replacement

Geschrieben von: Chandler Jardin
  • Kommentare: 0
Gateway P-6831FX WiFi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

The WiFi Card is a component that adds wireless connectivity to your device. This guide will go over how to remove and replace the WiFi Card for the P-6831FX.

  1. 6LqxOMFeeJsDdkS1
    6LqxOMFeeJsDdkS1
    ljOL3ZNRaKj1CPMh

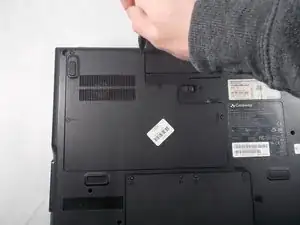

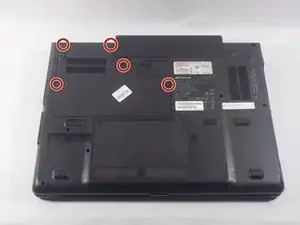

    • Turn your laptop upside down and remove the five Philips #0 (5mm) screws for the cover of the WiFi Card.

    • Make sure to unplug your laptop charger, as removing the WiFi while the device is charging may damage the WiFi and or the charger.

  2. HBNXkKWvKpiyvDoo
    HBNXkKWvKpiyvDoo
    WBo42oOIoSTf2sPb

    • Gently pull the cover away from the device.

  3. NJGcfjhFxKUxfsEh
    NJGcfjhFxKUxfsEh
    QXVnkDX24g6Ncxve
    LyGWERvNuhOvtXHt

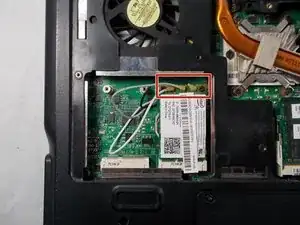

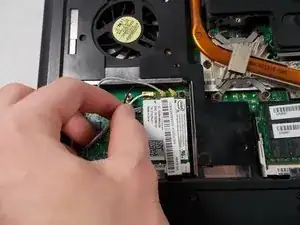

    • Remove the three wires above the WiFi Card.

    • Take note of the color for each wire and it's corresponding location.

  4. djGx115RpfTOAkAu
    djGx115RpfTOAkAu
    hwprhC3jddGpUVMA
    bFrTQuTebQXOPgFe

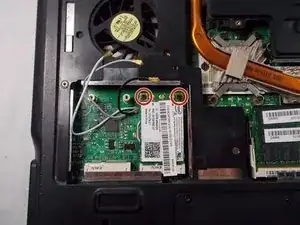

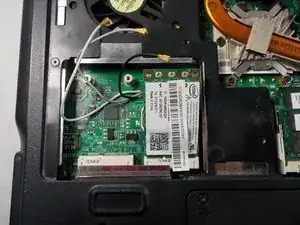

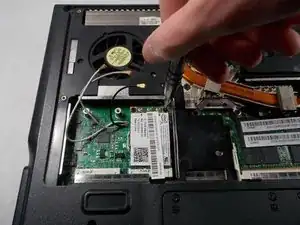

    • Remove the two Phillips #0 (2mm) screws above the WiFi card.

    • The WiFi Card will lift up once the screws are removed.

  5. GbHnekTMO16KJypN
    GbHnekTMO16KJypN
    cnqNYoVfGOCJREDg

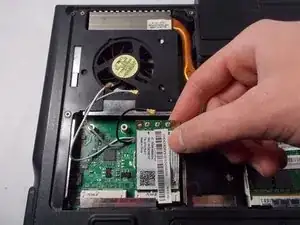

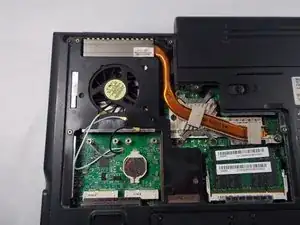

    • With the WiFi Card lifted up, gently pull the WiFi Card out of the socket and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
