Gateway P-7805u Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace your laptop's hard drive.

  1. jE4aJQCZMLA6D3A1

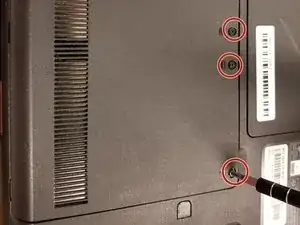

    • Unscrew all .5mm screws from the back rectangular panel. Use a J0 screwdriver.

    • Screws will not come out all the way out. Simply unscrew until they do not come out any further.

  2. MXKUdHZvWyDU1Kkr
    MXKUdHZvWyDU1Kkr
    IEAtF34nbZjqbscg

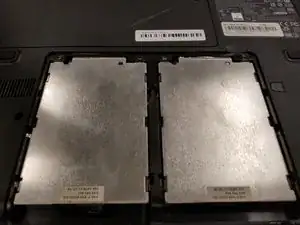

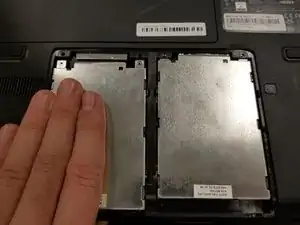

    • Firmly press with your hand on the silver surface and pull back, dislodging the hard drive from its port.

  3. ANMbAOvPc11j5XcL

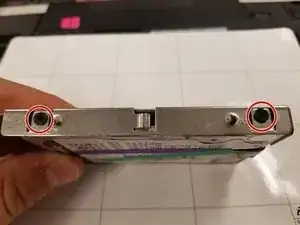

    • Remove the four 1.2mm screws attaching the case to the hard drive. Use the same J0 screwdriver.

  4. EjUpDPyrBiQxQONm

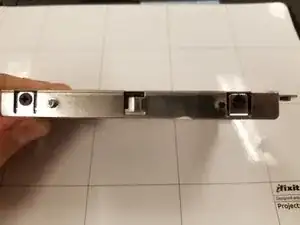

    • Pull out the old hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
