Einleitung

This guide will teach you how to remove your laptop's RAM. Upgrading RAM is a common practice.

  1. YDdrc4xEhkfWSLT4
    YDdrc4xEhkfWSLT4
    DYPBjSFQpVDGwBBv

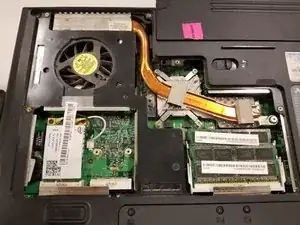

    • Use the J0 screwdriver to remove the five 2mm screws holding the back plate.

  2. mrZsiFVLGUU3Mggh

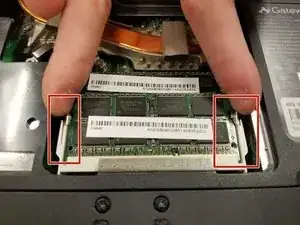

    • Push the upper RAM module's two pins outwards at the same time.

    • If done correctly, the module should lift.

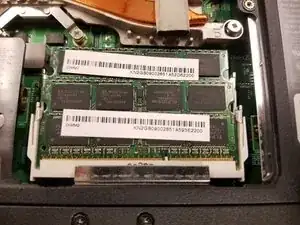

  3. DE16McnDsmsLNcBy
    DE16McnDsmsLNcBy
    nL1aHKqSCPuriXas

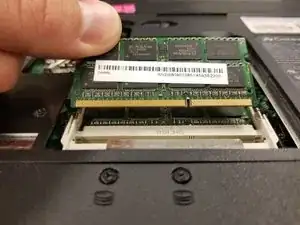

    • Grab onto the module and pull away in a straight direction.

  4. fNNF6qdmwEo1iWbo
    fNNF6qdmwEo1iWbo
    JUUub1StIqlomEBs

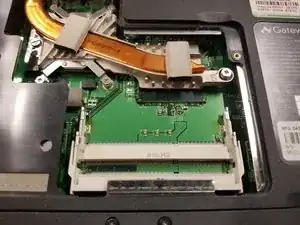

    • Push the lower RAM module's two pins outwards at the same time.

    • If done correctly, the module should have lifted.

Abschluss

To reassemble your device, follow these instructions in reverse order.
