Gateway SA1 Screen Replacement

Geschrieben von: Diego Carteno
  • Kommentare: 0
Gateway SA1 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 - 45 Minuten

Einleitung

Replace a broken screen in your Gateway SA1 laptop.

  1. S6lEYvUrYwibbAWp

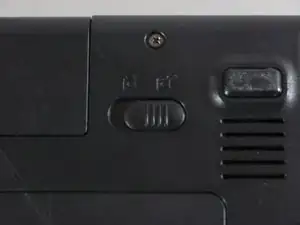

    • Move the latch to the right of the battery to unlock.

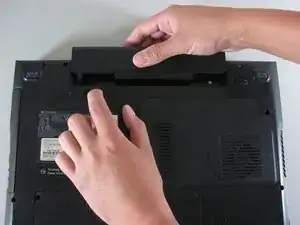

  2. KjtYYqwZCqFtLOIo

    • Slide the latch on the left directly below the battery to unlock and pull out the battery as shown.

    • The latch must be held in position to remove the battery.

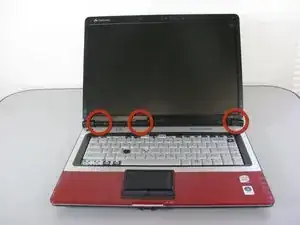

  3. LCfkBnTNChYVdYMZ
    LCfkBnTNChYVdYMZ

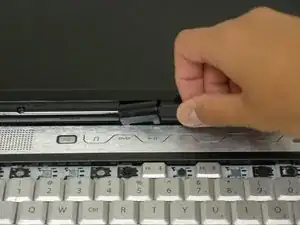

    gVpRrDpwsj1yGUDp

    • Remove the hinge covers by lifting each with the sharp point of the spudger.

    • Notice that the middle cover has a different shape and is more difficult to remove.

  4. YP4D3qTGeLYoMIUk
    YP4D3qTGeLYoMIUk
    LEybNoYHPUZHlgGh

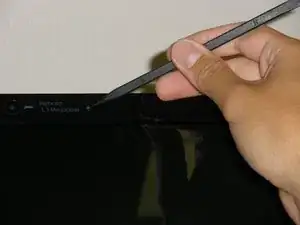

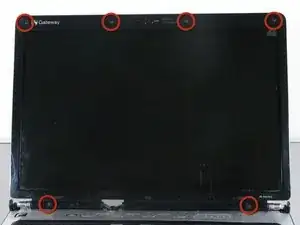

    • Remove the six screw covers on the front bezel with the sharp point of the spudger.

    • The bottom two are more difficult to remove.

  5. cY5WYZeYkfdfr1oK

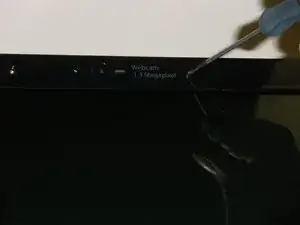

    • Remove the six 5.9 mm Philips screws securing the screen bezel.

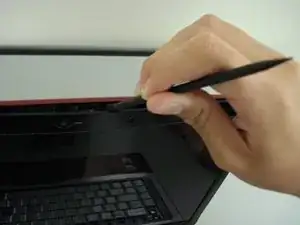

  6. Yew3BSYZGCoJZKVF
    Yew3BSYZGCoJZKVF
    GDguQULjHDZSKJxR
    b5BZBZGXIRE5ghoF

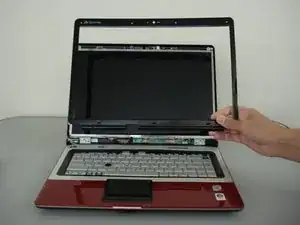

    • Remove the front bezel by prying it off with the wedged end of the spudger.

    • Verify that your spudger does not touch the LCD.

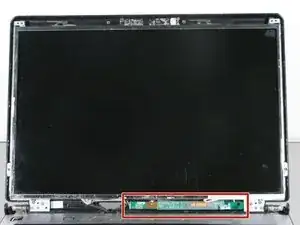

    • The screen inverter is now exposed below the LCD.

  7. pf2AyhhWTxiRVTmE

    • Remove the single 3.8mm Phillips screw mounting the screen inverter to the computer.

  8. xgc2vfEYaxVSXmT1
    xgc2vfEYaxVSXmT1
    1ZPxXQxFlrLjQvmc

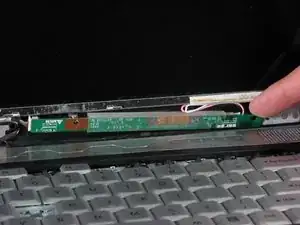

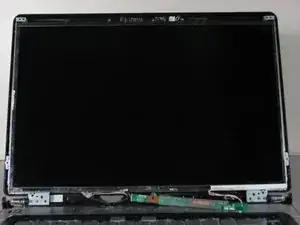

    • Use your finger, or the spudger, to pry the inverter board out.

    • This exposes the wires behind it.

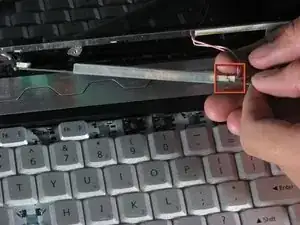

  9. 1YjjUawcYCXV4Jfx

    • Unplug the LCD back light cables from the right side of the screen inverter.

  10. O14XLW4jFfpOxnTK
    O14XLW4jFfpOxnTK
    fqf2lFGvUtZDHBWY

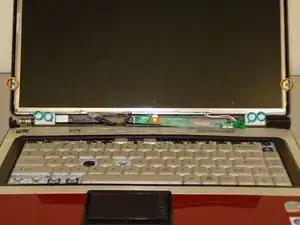

    • Remove the six screws that mount the screen to the hinge mounts.

    • Two 2.5 mm Phillips screws.

    • Four 3.8 mm Phillips screws.

  11. lY4GvfHSv5IhiJGx

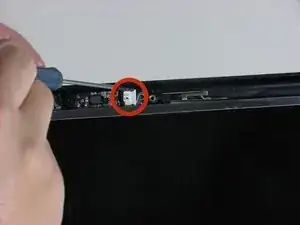

    • Unplug the cable from the webcam board.

    • Be gentle, do not use excessive force or you may break the connection.

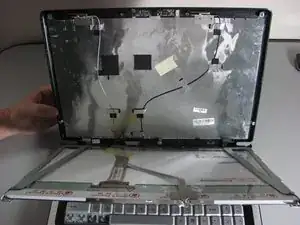

  12. P3EWVmjvFMBN45ii

    • Separate the screen from the display cover.

    • Do not touch the back of the screen.

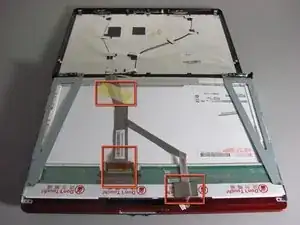

  13. QcgkXfFHy3j2BJJT
    QcgkXfFHy3j2BJJT
    RXPRPDMBw1MSxwps

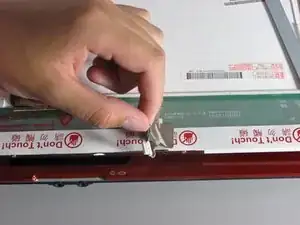

    • Remove the three tape strips that hold down the cables.

    • Be careful not to tear any of the tape. The piece holding down the webcam wires is especially delicate.

  14. 6jWSKh3uK36VVfGP
    6jWSKh3uK36VVfGP
    EFepPgHXZFUT2Xhl

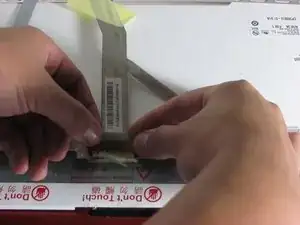

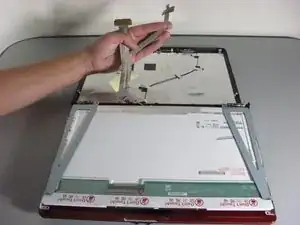

    • Unplug the display data cable from the screen connector.

    • This connection is very fragile; do not use excessive force.

    • The screen should now be free from all wire connections.

  15. lFMZGJQDFDSgOTVT

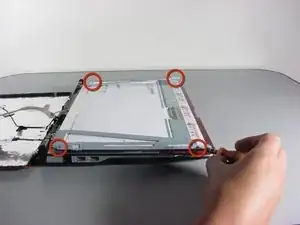

    • Remove the four 2.8 mm Phillips screws that secure the screen to the mounting bracket using a screwdriver.

    • There will be two screws on either side of the mounting bracket.

  16. evmyWUnlT4WRxNAd

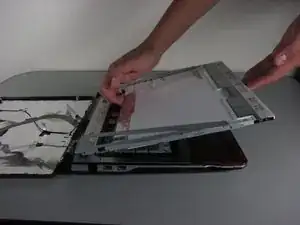

    • You can now remove and replace the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
