Gateway Solo 1200 Diskette Drive Replacement

Geschrieben von: Diana Farris
  • Kommentare: 0
Gateway Solo 1200 Diskette Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 30 Minuten

Einleitung

Follow this replacement guide to replace a malfunctioning diskette drive.

Floppy disks are used to install software, access data, and run applications. They are integral to the maintenance and upkeep of your device. If your Gateway Solo 1200 is failing to read floppy disks, there could be an issue with your diskette drive. Use this guide to replace the diskette drive in Gateway Solo 1200.

  1. mWDFCi31eOCOdk3I
    mWDFCi31eOCOdk3I
    tPNVNikNJK3mWAgu
    SEVKbMSYLcVSKc2M

    • Turn off your laptop and disconnect it from AC Adapter before use.

    • Locate the battery latch on the bottom of the laptop.

    • Release the latch by pressing it with your thumb and sliding it to the right.

    • Slide the battery out of its compartment.

    • Discharge your laptop by pushing the power button after removing the battery.

  2. C3aRAqOYKfmRRJB4
    C3aRAqOYKfmRRJB4
    bGiA2uif2YHlnoKb

    • Turn the device so the back is facing you.

    • Unscrew the 2 mm screws with a Phillips #0 screwdriver.

    • Unscrewing these back screws partially releases the keyboard.

  3. E5TrPCG2I4WBqsiD
    E5TrPCG2I4WBqsiD
    qQ5YB3QQpLIRumkC

    • Open up the device so the keyboard is visible.

    • Locate the front panel with the power button above the keyboard.

    • Remove the panel by gently pulling on it.

    • The panel should pop out with little force.

  4. kucrcZvV6jPtuJKB
    kucrcZvV6jPtuJKB
    pAdJdQMLQmUiZRTu
    d14MBSCtZslEjdRU

    • Gently lift the keyboard panel up.

    • Flip the keyboard panel over to reveal the underside.

    • Gently tug on the ribbon cable at the bottom of the keyboard panel to release the keyboard.

  5. HsnWsTrWIcpJZJPL
    HsnWsTrWIcpJZJPL
    CMITPTDQkkHfnXPE
    ICyZwgULAa6QBDIJ

    • Remove both monitor hinge covers at the base of the screen by unscrewing the 2 mm screws with a Phillips #0 screwdriver.

    • Locate the visual output cord on the exposed left hinge connecting the monitor to the laptop.

    • Gently tug on the visual output cord to remove the screen.

  6. DeWLPPLmX232FJdx
    DeWLPPLmX232FJdx
    MraN5MMwO1vbDVMR
    MhvVlH5TjY3hARRI

    • Once the screen is removed, locate the keyboard frame screws.

    • Unscrew the outer frame and gently pull it away from the device.

    • Gently tug on the trackpad connector underneath the keyboard frame to completely remove it.

  7. 2pjEvmnxJGwccNaQ

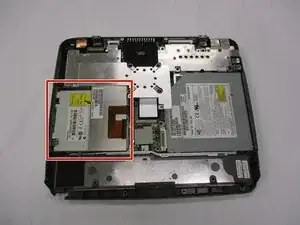

    • Rotate the device so the battery compartment is located at the bottom.

    • Locate the diskette drive directly above the battery compartment on the left side.

  8. MGGrv5YJW2CGeKLf
    MGGrv5YJW2CGeKLf
    SJYmhQMk4RVFlTi4
    ecvpqRcQpYw2a1CY

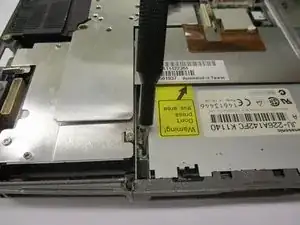

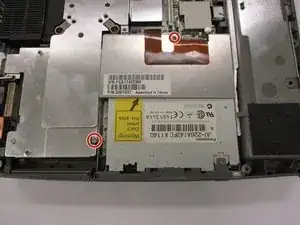

    • Turn the device so the battery compartment is now located on the right side.

    • Locate and unscrew the two screws securing the diskette drive.

    • The first screw is to the left of the diskette drive, near the edge of the laptop. The second is above the diskette drive, near the center of the diskette drive.

  9. IWOJqoF1ctI3SiKB
    IWOJqoF1ctI3SiKB
    5sv6xxqC1Mia632F

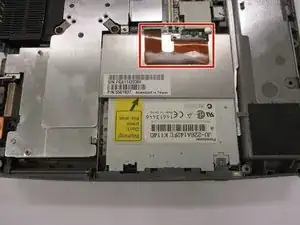

    • Locate the ribbon cable at the top of the diskette drive.

    • Gently pull ribbon cable to detach diskette drive from the motherboard.

  10. J3IJDWBuhVltaDll

    • Once screws have been removed and ribbon cable detached, gently slide the diskette drive out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
