Gateway W350I Display Replacement

Geschrieben von: Samuel Newton

Kommentare: 4

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

45 Minuten

Einleitung

This repair will be needed in circumstances where the screen on your laptop stops working properly. If software adjustments do not fix the issue, replacing the display with a new screen should correct the display issue.

Werkzeuge

Schritt 1

Turn the laptop upside down and position it as shown in the image.

Schritt 2

Slide the locking switch towards the open lock picture.
Hold the release switch in the unlocked position while simultaneously pushing the battery away from the laptop.
Once the laptop is disengaged, completely remove the battery from the laptop.

Schritt 3

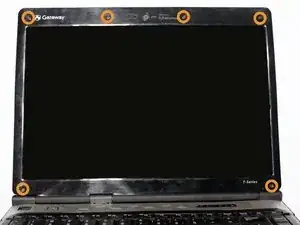

Pry the six black rubber protectors out of the screw holes.
Remove all six of the 4mm Phillips #0 screws that were covered by the rubber protectors.

These pictures look like they might be out of order. The second picture looks like the screw has been removed.

Proofread the text in the first bullet point of this step.

I don't see the rubber protectors that you mention.

Dan Brown - 30/10/14

Schritt 4

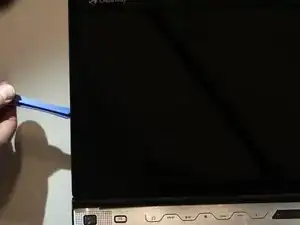

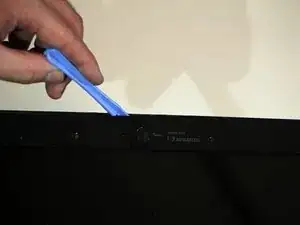

Separate the plastic screen casing from the laptop lid by inserting a plastic opening tool. Complete this step around the top and along both sides of the screen.

I'm not quite sure what I'm supposed to be seeing in the second picture. Where/what are the clip connectors that you mention?

Dan Brown - 30/10/14

Schritt 5

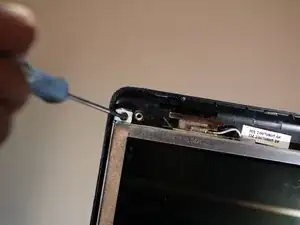

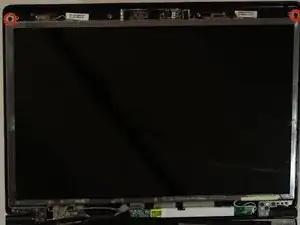

Remove the two 4mm Phillips #0 screws located at the top that fasten the screen bracket to the laptop.

Schritt 6

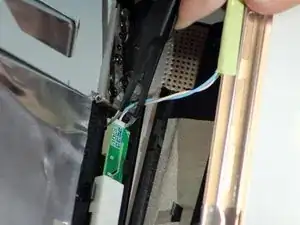

Separate the bracket and the screen from its original position within the lid of the laptop.

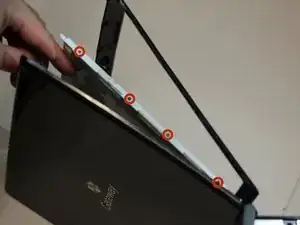

Remove the four 4mm Phillips #0 screws on the sides of the bracket that hold the LCD screen.

Schritt 7

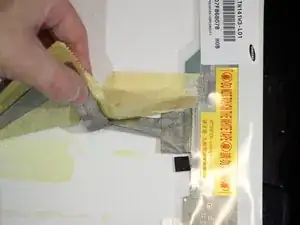

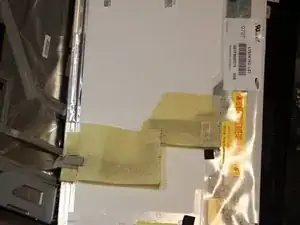

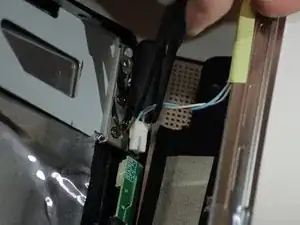

Detach the video cable that is attached to the laptop from the back of the screen.
Be careful while removing the video cable as it is very delicate.

I could use clarification as to why steps 7 and 8 are here. The introduction suggests that this guide shows how to replace the screen, so why would I need to do these as well?

Dan Brown - 30/10/14
