The motor is one of the most important parts in the RC car as it turns the car's wheels. If your car's wheels are not turning, you can follow these steps to replace the motor.

Note: This guide will involve soldering. For information on how to solder, please visit iFixit's Soldering Skills page.

  1. EwZfZrP1vybdJJyG
    EwZfZrP1vybdJJyG
    v6tUiWqYBejY1LtZ
    iIbU5GLGWHdkAQZq

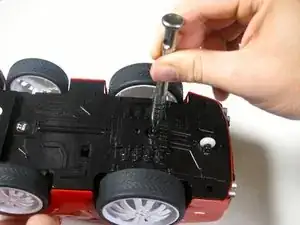

    • Remove the 5mm Phillips #0 screw from the bottom of the car, located between the rear wheels.

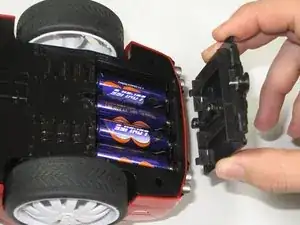

    • Gently lift the battery cover from the car to expose the batteries.

  2. FW3LCfdgxBrqEcgb
    FW3LCfdgxBrqEcgb
    VJXClp2aiiOVdemi

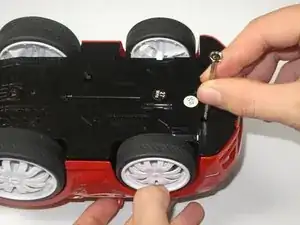

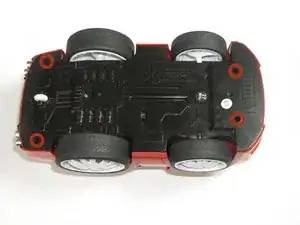

    • Flip the car over and remove the four 5mm Phillips #0 screws that hold the shell to the car chassis.

  3. utrySo6CaYeuHiQJ

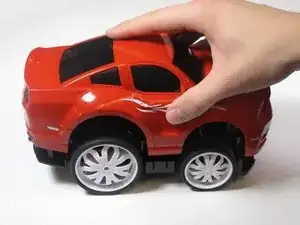

    • Flip the car over again to its upright position and vertically lift the shell from the car.

    • During re-assembly, make sure the shell is correctly aligned. If it is not aligned correctly, it may rub on the wheels, possibly preventing them from turning.

  4. 2WkInoRghBLNYcQT
    2WkInoRghBLNYcQT
    xHGwYNKwQYVfTWsU
    • Unscrew and remove the 5mm Phillips #0 screw located at the center of the wheel while holding the wheel still.

    • Slide the wheel off of the axle.

    • Repeat the previous steps for the other rear wheel.

  5. DSZbaeqtI3NK3JST
    DSZbaeqtI3NK3JST
    xjBHIThqBIXRPoHY
    • Remove the eight 5mm Phillips #0 screws located on the top of the motor/circuit board enclosure.

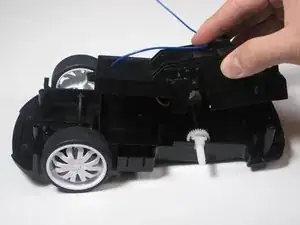

    • Vertically lift the motor/circuit board enclosure from the car chassis.

  6. Og1YL3KdYWSMyyaO
    Og1YL3KdYWSMyyaO
    E6EMBcslx5HPUE3h

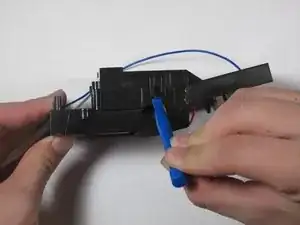

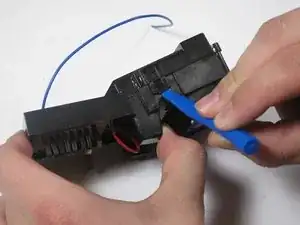

    • Using a small plastic opening tool, gently pry the clips to release the tabs on the circuit board casing. The clips can be located above where the rear wheels used to be.

    • Lift the clips just enough to release them from the tabs. If they are pried too far, they may snap off.

    • There is a clear gear grease inside the enclosure.

  7. YmBpvq4n2UN1mG1G
    YmBpvq4n2UN1mG1G
    yY3QbPFgoWTa6HVf

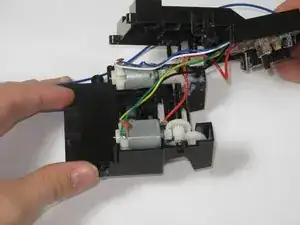

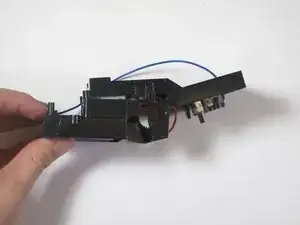

    • Lift the circuit board casing from the enclosure to reveal the motors, gears, and circuit board.

    • During re-assembly, make sure the wires are not pinched between plastic dividers in the enclosure as this may damage them.

  8. p3OC5WiJEG5BbCHp
    • Using the copper solder wick, remove the solder from the two wires at the points where they connect to the motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
