Einleitung
After calling your service provider, if you are having bad cellular reception or other service issues, use this guide to replace the antenna.
Werkzeuge
-
-

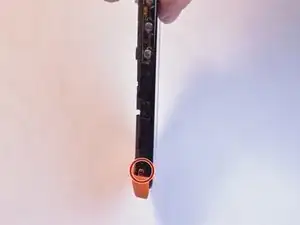

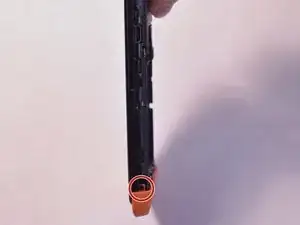

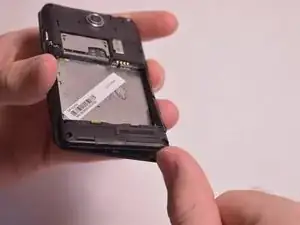

Insert the plastic opening tool into the seam between the front of the device and the rear cover.
-

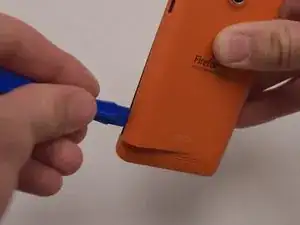

Slide the plastic opening tool from the bottom of the phone to the top.
-

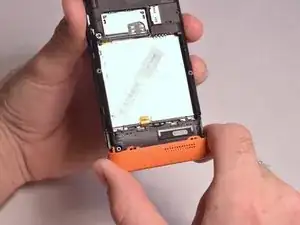

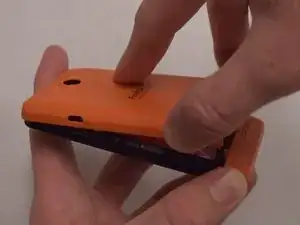

Use the plastic opening tool to free all the clips attached to the phone.
-
-
-
Insert the plastic opening tool into the groove between the bottom of the phone and the battery.
-
Lift the battery with the plastic opening tool and finish removing battery by hand.
-
-
-
Remove the following screws securing the back plate to the device:
-
Two silver 2mm T3 screws
-
Five black 3mm T3 screws
-
-
-

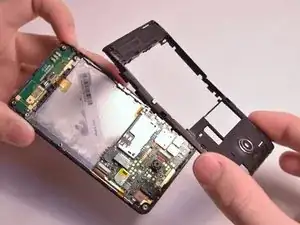

Slightly lift up the bottom corner of the backplate.
-

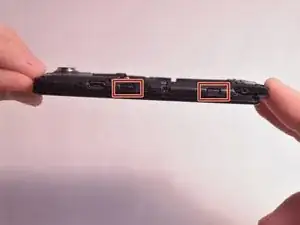

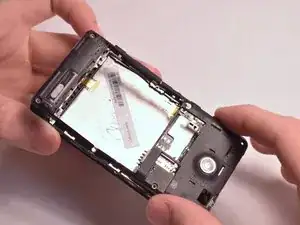

Release the four clips on both sides by pulling them away from the device.
-
-
-

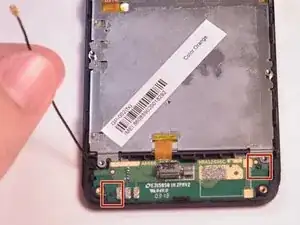

Unfasten the black wire from the metal clamps by hand and lift the black wire away from the device.
-

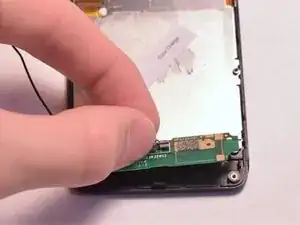

Unfasten the plastic clamps attached to the antenna.
-
-
-

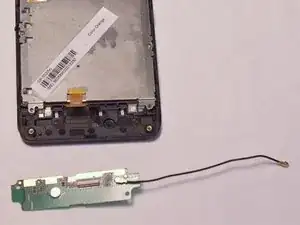

Gently lift the antenna and flip it over to reveal a ZIF connector on the back.
-

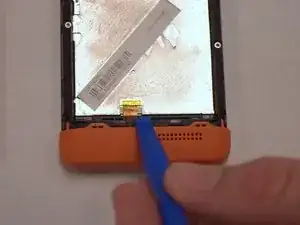

Flip up the small retaining flap on the ZIF connector and pull the ribbon cable out.
-
To reassemble your device, follow these instructions in reverse order.
