Einleitung

This guide will explain how to replace the power supply cable of the General Electric Bagel Switch 4-Slice toaster.

  1. yYG5e6KMn5JJPURF

    • Unplug the toaster from the electrical outlet.

  2. YnZFC354yFFr5PLU
    YnZFC354yFFr5PLU
    P1QXfOj3Ytp2qaxl

    • Remove the two levers and four dials by pulling them out directly towards you.

    • Removing these components may require some force, but they will release.

  3. WYilsX3sSJRQQoSX

    • Look for the plastic clips on the back side of the toaster.

    • Disconnect the small plastic clips on the back of the toaster. Use Philips head Screwdriver to do this step.

    • Now, carefully remove the toaster casing.

  4. sPHIXJCUQuNfOVPJ

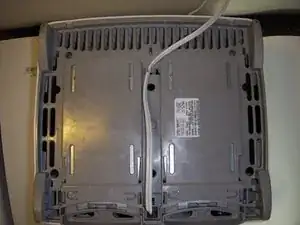

    • Flip the toaster over so that the bottom plate is facing up.

  5. Z4qAJcVoGA33EYhm
    Z4qAJcVoGA33EYhm
    nMuIIFFdv5NSlNYV

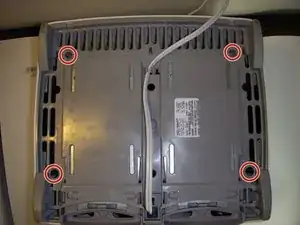

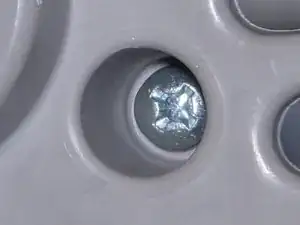

    • Remove the four screws from the bottom of the toaster.

    • Carefully separate the bottom plate from the metal components inside the toaster.

  7. BehUnEbUCHSNSMRK

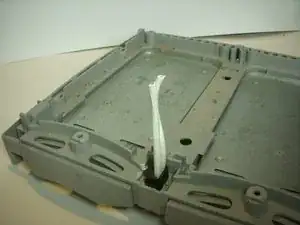

    • Using wire cutters, cut the power supply cable close to the base of the toaster, leave about 2 inches of wire.

  8. lM2fFnCJQYmCb4Pd

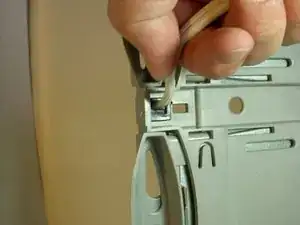

    • Pull the power supply cord through the bottom plate of the toaster.

    • Insert the end of the new power supply cable through the hole in the bottom plate.

  10. od6m23CRT3QCjDDt

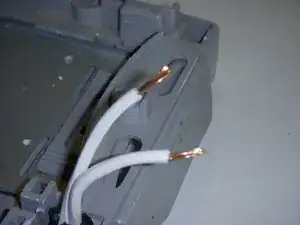

    • Strip about an inch of the wire insulation (casing) off the ends of both the new power supply cable, and the old power supply cable that is still attached to the toaster.

    • Splice the stripped ends of wire together using a wire cap.

Abschluss

To reassemble your device, follow these instructions in reverse order.
