General Electric Create Jason Wu LCD Screen Replacement

Geschrieben von: Kailee Poe
  • Kommentare: 0
General Electric Create Jason Wu LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will demonstrate how to remove the LCD screen and replace it with a new one.

  1. LPaD2dNPuX1RcAuP
    LPaD2dNPuX1RcAuP
    tHHAskkpqaA2VjQ6
    YAAvxE1TGvMJs5OF

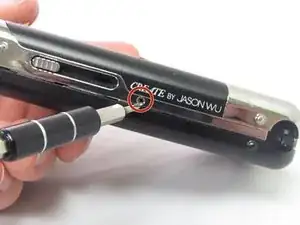

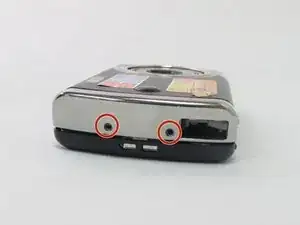

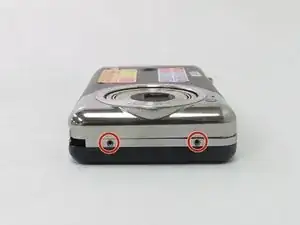

    • Begin by removing the 5 screws (located: 2 screws on either side and 1 screw on the bottom) using the PH000 head in the Precision Phillips Screwdriver.

    • These screws were missing in our example. These screws should have been small Phillips PH000 screws 1.5mm in length.

    • These screws are very small. To keep from losing any pieces, place all small metals on a magnetic project mat.

  2. qD1s4RZDYSOkeuwU
    qD1s4RZDYSOkeuwU
    xXMU3DDpGP3eo1vy

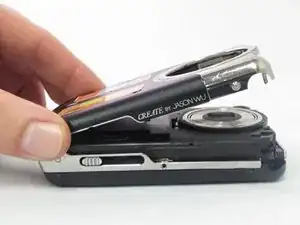

    • After the screws are removed, pull the front casing up and away from the camera.

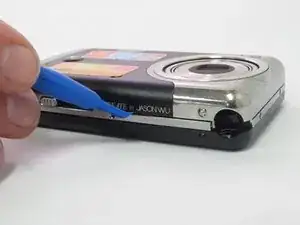

    • If the casing is difficult to remove, use a plastic opening tool to gently pry up on the front as shown.

  3. rqDHefVW5vorurcM
    rqDHefVW5vorurcM
    ffOHmUxH1cZfCc6c
    bjbtiHsdPWFYvsDH

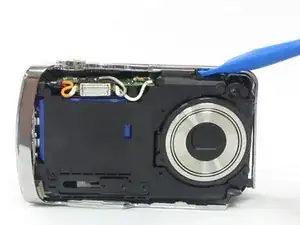

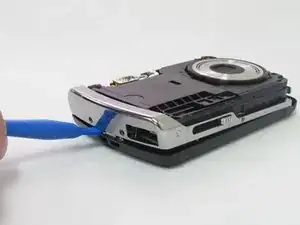

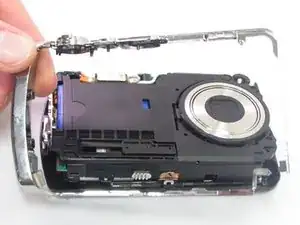

    • Using your hands or an opening tool, pry off the silver frame, taking special care at the top of the camera where the buttons are as it is a little harder to pry off.

    • If the back casing is loose from the camera body, it may be easier to perform step 4 first, then accomplish this step. Proceed as your unit allows.

  4. LLAyANGqvCoAToCc
    LLAyANGqvCoAToCc
    xG5swHhEwJchCEUQ
    hS5VltOdTZIOVUDk

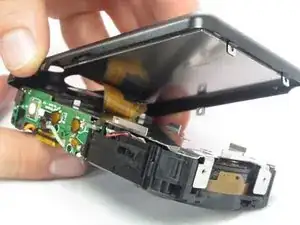

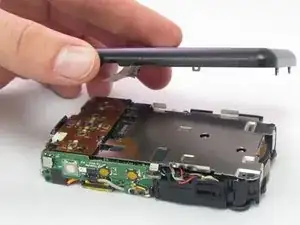

    • The last part of the casing to disconnect is the back that houses the LCD screen.

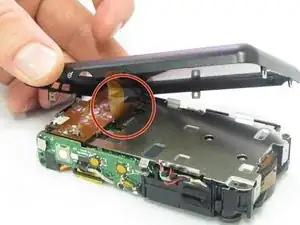

    • The screen is attached by a connection ribbon. Gently pull the casing and screen away from the camera body to disconnect the casing.

    • The LCD screen is held onto the back casing by a small amount of adhesive. This may come loose during this process. Do not worry if they become separated.

    • This plug and the connection ribbon are fragile, try not to tear the connection ribbon when disconnecting.

  5. kLqTgFFeHgMLnpfM
    kLqTgFFeHgMLnpfM
    aQc4VtSDMAyNlspZ

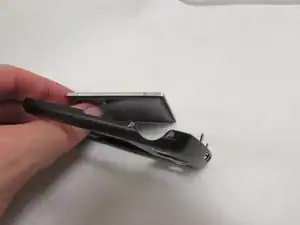

    • With the back casing that you just separated from the camera, use your finger to push the LCD screen from the frame.

    • The LCD screen is secured to the frame with a thin layer of adhesive, not much force is required to removed the screen from the back casing.

    • Before replacing the back casing with the new LCD screen, please be sure it is secured into the casing with new adhesive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
