General Equipment Augers M330H 2012 Throttle Cable Replacement

Geschrieben von: DAVID
  • Kommentare: 2
General Equipment Augers M330H 2012 Throttle Cable Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

  1. SQYAMiRfkossRWao

    • Loosen the cable clamp screw, and the cable adjusting screw. You will want to hold the swivel with a wrench, or pliers when loosening the cable adjusting screw.

  2. 1WYL1CsqELJUdc4h

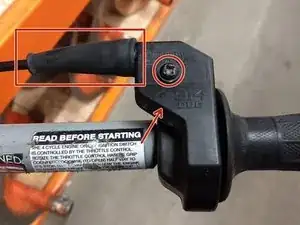

    • Slide the boot off of the throttle cable end. Remove the cover plate screw, and remove the cover plate by lifting or gently prying at the arrow

  3. 1qZQDRNiA5yrBATi

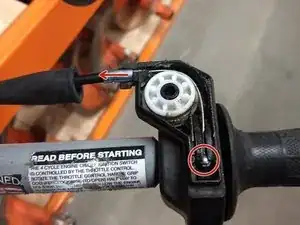

    • pull out on the sheath to remove it from the housing. Lift up on the cable to release the ball from the groove. Remove the boot from the old cable to be reinstalled on the new cable.

  4. 2oCkIPjnZPfqBY4V

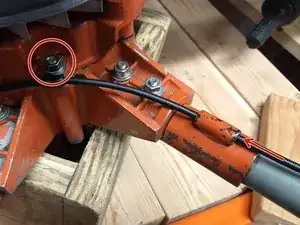

    • Use a 1/2" wrench or socket to remove the nut from the clamp. slide the cable through the guide in the direction indicated. open the clamp and remove from the old cable to be installed on the new cable.

Abschluss

To reassemble your device, follow these instructions in reverse order. Place the boot on the new cable after putting the cable through the guide sleeve. Re-install the clamp in the middle of the cable last, once you have both ends secured.

Tinte & Feder

DAVID

Mitglied seit: 24/07/20

230 Reputation

2 Kommentare

what’s the guard piece that holds the throttle cable and next to the carburetor called?

KEVIN -

I just called it the Throttle Plate. The Honda GXV160 parts page refers to the whole mess as the “primary control assembly”, and the cover over the outside as the “control protector”.

DAVID -
