General Pipe Cleaners Drain Cleaner EJB 2014 Motor Assembly Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
General Pipe Cleaners Drain Cleaner EJB 2014 Motor Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 15 Minuten

Einleitung

Use this guide to replace the motor assembly in a General Pipe Cleaners Drain Cleaner EJB 2014.

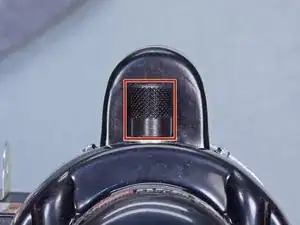

  1. CCBkCPkUbgywXJKp

    • Before you begin, make sure the drain cleaner is disconnected from power.

    • Loosen the belt guard knob enough to be able to slide the belt guard toward the front of the drain cleaner.

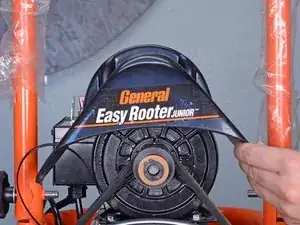

  2. EwjI1EKeHYSYeBR6

    • Slide the belt guard toward the front of the drain cleaner and off of the motor.

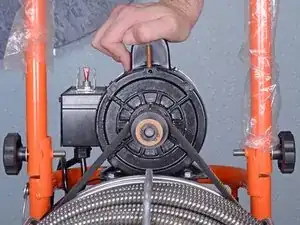

  3. U2woP3rjJWTCVQ2O
    U2woP3rjJWTCVQ2O

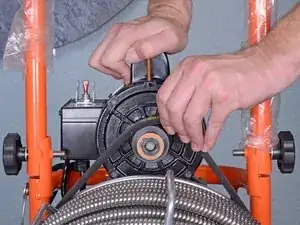

    dXGGQDwfgJ1ysBWT

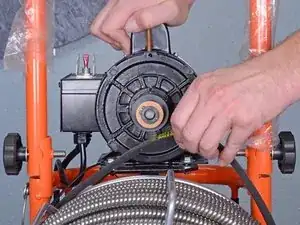

    IiFWPE6OiGHnENfh

    • Push down on the motor to take tension off of the belt.

    • The motor mount is spring-loaded to keep tension on the belt.

    • Lift the belt off of the motor pulley and remove it from the motor.

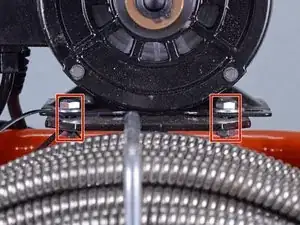

  4. h2ErTu1IQR6dMAVv
    h2ErTu1IQR6dMAVv

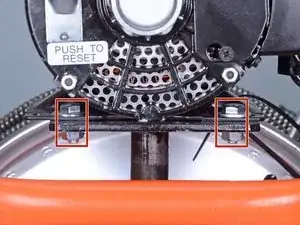

    Wc1tDkBM1YBPCAHh

    • Use two 1/2 inch wrenches to remove the four nut and bolt sets securing the motor to the drain cleaner.

    • During reassembly, make sure that the belt pulley on the motor is lined up with the belt groove on the cage before tightening the bolts.

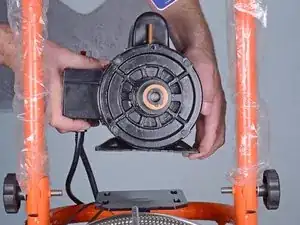

  5. IUrTThYycyjX6aJ6

    • Remove the motor assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
