General Pipe Cleaners Drain Cleaner PMEBO 2016 Reverse Switch Replacement

Geschrieben von: Adam O'Camb
  • Kommentare: 0
General Pipe Cleaners Drain Cleaner PMEBO 2016 Reverse Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 30 Minuten

Einleitung

Use this guide to replace the reverse switch in a General Pipe Cleaners Drain Cleaner PMEBO 2016.

  1. SKAPK61UEcnXWWnk

    • Before you begin, make sure the drain cleaner is disconnected from power.

    • Use a Phillips #2 driver to remove the two screws securing the control box cover.

  2. ZGRopeTVnyWlIyJB

    • Remove the control box cover.

  3. YdUjPbvtExssNDSh

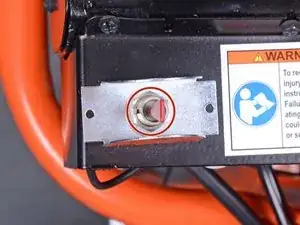

    • Use a 9/16 inch deep socket and ratchet to remove the nut securing the reverse switch.

  4. aHMMQw3RtVWLvRJL

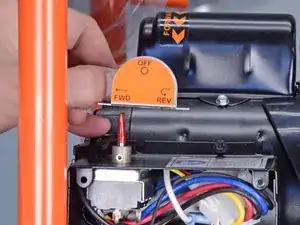

    • Remove the reverse switch guard.

  5. fpXDYVVXpSCr6vJs
    fpXDYVVXpSCr6vJs
    jZ1FwaYGFfJEcyFF

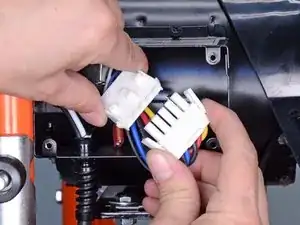

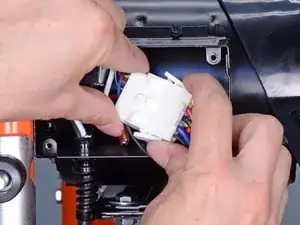

    • Squeeze the tabs on either side of the reverse switch connector.

    • Pull the two halves of the connector apart to disconnect it.

    • Take note of where everything is connected in the control box before disconnecting anything else.

  6. CDQYDDwCVG5xhSuV
    CDQYDDwCVG5xhSuV
    blvH6qkmyRHXBSCT

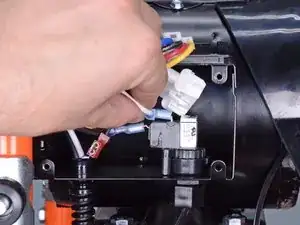

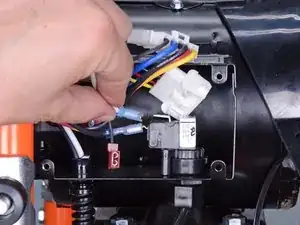

    • Pull the white cable straight off of its spade connector on the power switch diaphragm.

  7. mh5QARJvw3jNvJYk
    mh5QARJvw3jNvJYk
    lreTPWuGCYCOPvCy

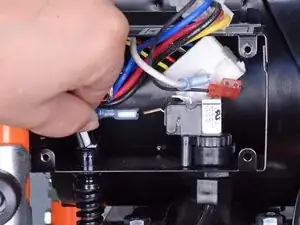

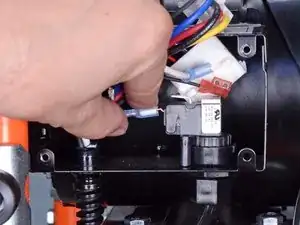

    • Pull the black cable straight off of its spade connector on the power switch diaphragm.

  8. YomLE4RggWy4SwIV
    YomLE4RggWy4SwIV
    6jgNgbIe1pxku5eA
    fa3PaP2CBIOrCs5U

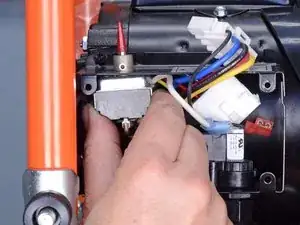

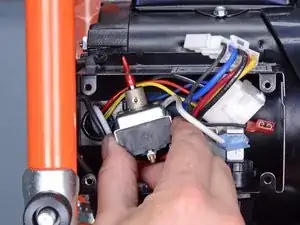

    • Slide the switch assembly down out of its hole in the control box and pull it out of the control box.

    • Be careful not to snag the switch on any cables during removal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
