Giant Reign 2 Wheel Spoke Replacement

Geschrieben von: Sterling Grande
  • Kommentare: 1
Giant Reign 2 Wheel Spoke Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

20 - 30 Minuten

Einleitung

Have you lost or broken a wheel spoke? This guide will show you how to replace it.

  1. Zv2AcRGgOXcvEwJT

    • Using the 4mm Allen wrench, partially unscrew the 4 (22mm) hex screws on the front of the axle casing to allow the axle to slide freely.

  2. AsZuUyDcLWWIuZUq
    AsZuUyDcLWWIuZUq
    BvHpoIpBAH5lGged

    • Using the 8mm Allen wrench, loosen the axle screw until 1/2 of the axle screw is visible.

    • Push the axle screw to reveal the axle rod on the other side.

  3. QUAqqfYHwHWBYbIM

    • Using the Allen wrench, finish unscrewing the axle screw and pull it out.

    • Hold the wheel when pulling out the axle rod so that the bike does not fall.

  4. mr5PahAaSaX3kGpi

    • Pull the wheel from the fork.

  5. mirdGEN3fOXFkNLd
    mirdGEN3fOXFkNLd
    hoQGJZoXxF2he1lB
    pOLThvXIq3jW1wNO

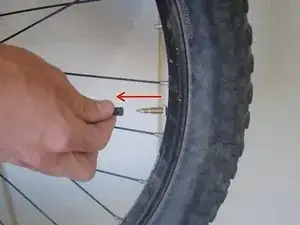

    • Twist and pull off the cap covering the tire valve

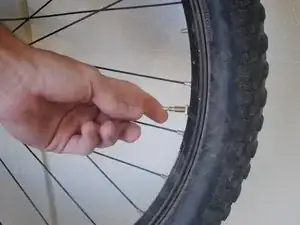

    • Twist off the spacer that holds the valve in place.

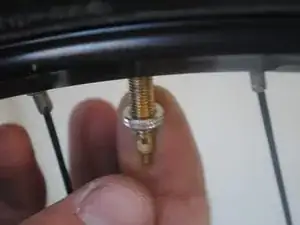

    • Push valve in toward wheel to release air pressure.

  6. hGSTdZVHNqassJDp
    hGSTdZVHNqassJDp
    5lrUbMYFhSthH3FX
    J2UHBtKWNQVlulLC

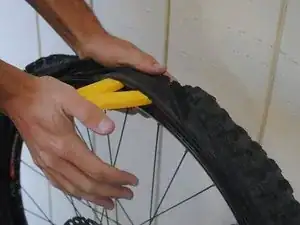

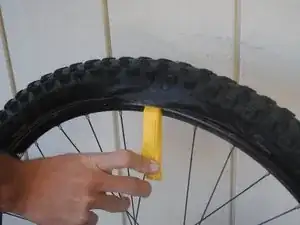

    • Insert one tire lever between the tire and the rim.

    • Push down on the tire lever until the edge of the tire is higher than the edge of the rim.

    • Insert a second tire lever next to the first.

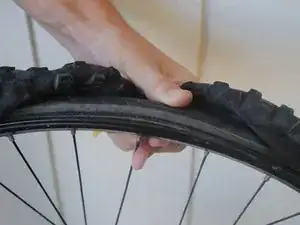

    • Slowly slide one tire lever around the rim until the tire is released from the rim.

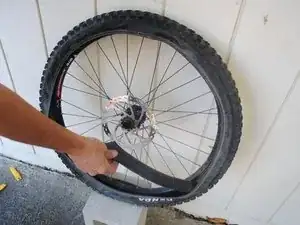

  7. RXpXCAKOQ5P1ZwrN

    • Using your hand, pull the tube completely out of the tire.

  8. UmhZM2qvCP6reXGX

    • Use an 8mm Allen wrench to unscrew the 6 (4x10mm) screws on the brake rotor.

    • Pull brake rotors off both sides of the wheel.

    Anything is possible for bike fasteners but disc brake rotors are most commonly bolted down with T-25 torx, not Allen. When reattaching disc rotor bolts bolts should be installed in a cross pattern (like drawing a star). Additionally you should refer to manufacturer specs for torque specs to tighten the bolts. Usually ~6NM for SRAM, ~4NM for Shimano.

    Edward O'Brien -

  9. mj6MPwXIsKgbTKLs

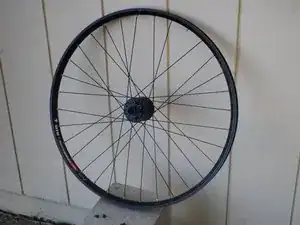

    • Pull the tire from the rim.

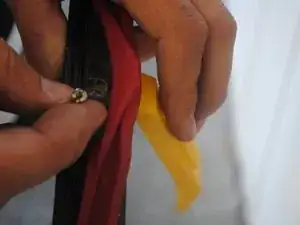

  10. yPId4tAOjqeNMCGR

    • Using a tire lever, push the rim tape aside to reveal the spoke nipple.

    • Using your fingers, pull off the old spoke nipple.

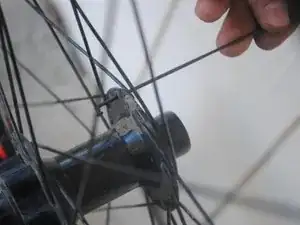

  11. SEAjALIOtssuNejW

    • Push out the old spoke from the hub.

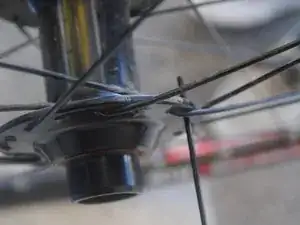

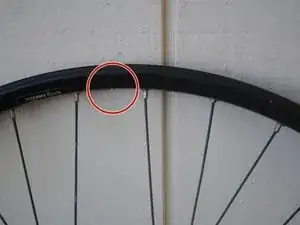

  12. yXaIAv5dfCvIXrar
    yXaIAv5dfCvIXrar
    lUkb6x1OZiiQARog

    • Insert a new 250mm spoke into the hub.

    • Align the spoke with the spoke nipple in the rim.

    • Try to keep the spoke as straight as possible when threading it around the other spokes. Slight bends will be taken out when it is tightened.

  13. rhKvIvrSwTTgDrDV

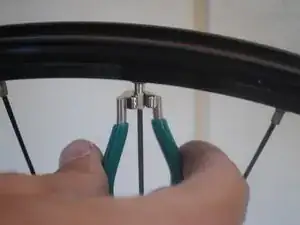

    • Using an SW-1 spoke wrench, tighten the spoke.

Abschluss

To reassemble your device, follow these instructions in reverse order.
