Giant Talon 29er Chainring Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 30 Minuten

Einleitung

This guide will show how to remove, disassemble, and replace the chainrings from the crank arm on a Giant Talon 29er bicycle. The chainrings should be replaced when the chain starts to skip teeth while riding.

  1. oGNOPirHAET5bYF4
    oGNOPirHAET5bYF4

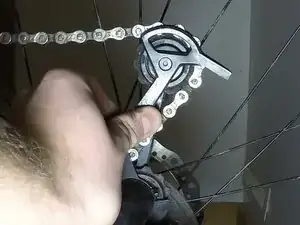

    YLnwxvMPS6uYATix

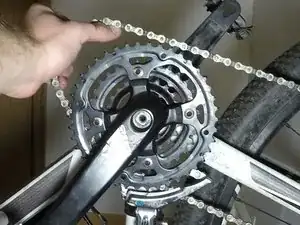

    Te5u1omSiVVQW5AL

    • Push the chain tensioner towards the front of the bicycle to release the tension on the chain.

    • Unroute the chain from the chainrings.

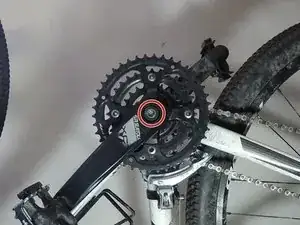

  2. CYOojtbOSaFm2Mks

    • Remove the 8 mm Hex screw from the crank arm.

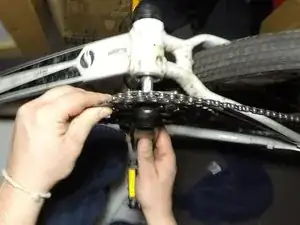

  3. GWhEJwpiHrrMGtLu

    • Remove the crank arm and chainrings by pulling the crank arm away from the bicycle frame.

  4. Rmjyv6uIFMbKU4OA

    • Remove the four 5 mm Hex screws that mount the crank arm to the chainrings.

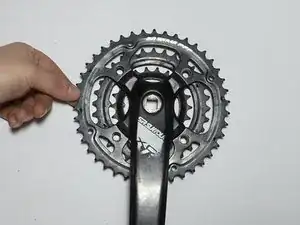

  5. GpFvKWXMNSWxt5Hb
    GpFvKWXMNSWxt5Hb

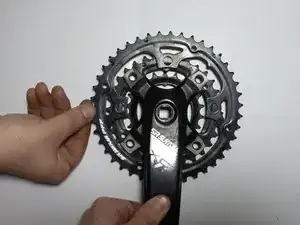

    VfhOwiHDKFBaMyGw
    b2xJsmpmWDCQEPFM

    • Rotate the largest chainring 45 degrees in either direction.

    • Remove the crank arm from the chainrings.

Abschluss

Reassemble your bicycle with the new chainrings by following these instructions in reverse order.
