Gigabyte P34G Battery Replacement

Geschrieben von: yeunghayden
  • Kommentare: 12
Gigabyte P34G Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

The battery supplies power to the laptop, so it is essential for the battery to be in good condition for optimal performance.

Make sure you are grounded before starting. To ground yourself, simply touch a metal object that is in contact with the floor for a few seconds.

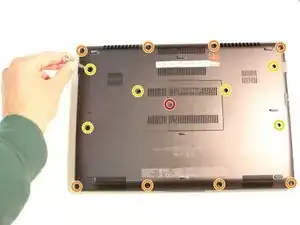

  1. XWpOdNhfKuWbCyBm

    • Remove all 15 screws on the underside of the laptop using a Phillips #0 screwdriver.

    • There are three different sized screws.

    • x1 9.8mm Screw

    • x8 5.6mm Screws

    • x6 5.0mm Screws

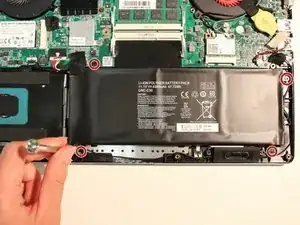

  2. GCdVhJoRV4sltL3i

    • Remove the four 4.5 mm screws using a Phillips #0 screwdriver.

    • Save the screws in a safe place for reassembly later.

  3. gsFO1ONYP6VQSaH4

    • Pull the wires down towards yourself to gently detach the connector from the main drive.

    • Save connector for reassembly later.

  4. RQtXtodH5y1n35Z3

    • Carefully lift the battery for removal and discard properly.

    • Replace with new battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

yeunghayden

Mitglied seit: 01/05/15

841 Reputation

12 Kommentare

Does anyone know where to find a replacement, or if you can fit the version 1 of this computer with a larger capacity battery from version 2?

tadej rezar -

Over at https://www.mysn.de/detail.asp?bestellnr... (don't mind their stock picture), they still sell the battery for the C404 (which is identical to the P34G v2). I just bought a new 61.25 Wh GNC-J40, manufactured in 2016/07.

M D -

Will it run without the battery or is it a required part of the circuit? I have a P35G V2 and I only use it plugged in anyway.

jens_lipponer -

The battery in my P34G v2 is pretty solidly stuck to the chassis. I don't really want to pull on it too hard but is this normal?

Donald Macaulay -

@jens_lipponer Yes it runs without the battery fine. I have my battery disconnected as it is really swolen and the laptop boots without a problem.

Donald Macaulay -

Which model do you have? I took out the battery from mine and is not working.

Fernando Grana -

Hey, just wanted to add that I just bought a GNC-j40 battery for my p34g v2 to replace the GNC-h40 battery it came with and so far it is working + I can fit a hard drive alongside the ssd, while only going down from 63.64wh to 61.25wh. Worth it in my opinion for the extra storage. If you have more questions feel free to ask me here or on my youtube channel: www.youtube.com/qwertypop I might post a video of installing the battery there, not sure yet. The gnc-j40 doesn't come with the skrew holes that the h40 has (I just bought the j40 from china on ebay, so maybe that's why), so I had to hold it in place with some DIY stuff.

qwertypop -

Useful to know qwertypop, thanks. My GNC-j40 is just clearing French customs so will be doing this in a few days.

David Houston -

Guide worked fine, thanks. Slight difference: my P34W v3 bought in Aug 2015 in UK was fitted with GNC-J40, so did not have the screws in step 2. It was secured by sticky pads. I carefully prised it out and replaced the pads on the new battery pack, they still felt sticky enough to hold it in place. And would recommend lining up the 2 back screws near hinges first when replacing as they were difficult to seat with others in place.

David Houston -

I have a SabrePro 15. The battery was very swollen and making the case expand a lot, breaking the touchpad too. A techie removed the battery for me, and the laptop works now but only when plugged in. I emailed support, but they seem to have ignored me for 2 weeks already, so I can’t source a replacement battery.

I’m buying a UPS as a quick-fix to at least stop the laptop from turning off every time there is a 1/2 second power outage.

Baby How-To -

Thanks for the tutorial. I followed it, and after changing the battery, my laptop doesn’t turn on, even with only power adapter, I’ve tried removing the battery and removing CMOS battery, pressing power button for 20+ seconds, but nothing seems to work. What can I do now?

Andres Wilches -

Hello the guide is perfect!

but i have a problem, the new battery replacement show 100% charged but when i unplug the ac adaptor the pc shutdown …without the battery it work normaly . It's the second battery replacement i do because the first was doing the same…What can i do ? i don't know where is the problem.

Ki Ko -
