Gigabyte P35K Laptop Hard Drive Replacement

Geschrieben von: Wilson Fletcher
  • Kommentare: 1
Gigabyte P35K Laptop Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

40 Minuten

Einleitung

This guide will help you replace the hard drive in a gigabyte laptop if the main hard drive has failed or you are looking to upgrade it. If you have your original install disk, or a disk imaging software, you can use this to place windows back on the new hard drive. If not, you will need to purchase a new copy of windows to place on the replaced hard drive.

  1. hRyvITAkmdyXcERU
    hRyvITAkmdyXcERU
    K1JlsVdV3SBHXsD1
    4Me16Lu24CDoWZ56

    • Touch grounded metal objects occasionally with a clear path to the ground, such as a metal radiator, to ensure that static electricity does not build up and discharge, damaging electronic components.

    • Work on a clean hard surface to minimize static buildup.

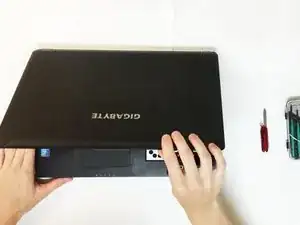

    • Fully power off the laptop.

    • Close the lid.

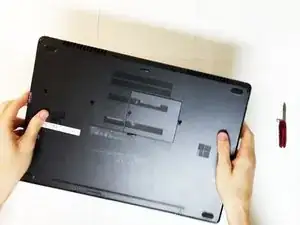

    • Flip the laptop over.

  2. D3BtgLdqFmKHgUIG
    D3BtgLdqFmKHgUIG
    ip1bpAaJyfFJXFdv

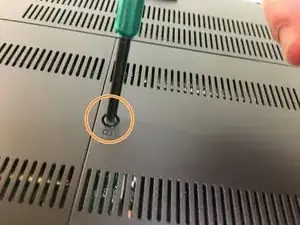

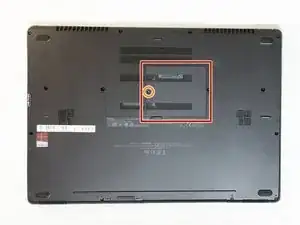

    • Locate the small plastic back plate.

    • Remove the small 4.0mm screw holding the small plastic back plate in place.

  3. fHbFBYEk1ySNOrF3
    fHbFBYEk1ySNOrF3
    XK5bdTZ4YAYqTVGS
    TLhXNTf6FPMp5LAu

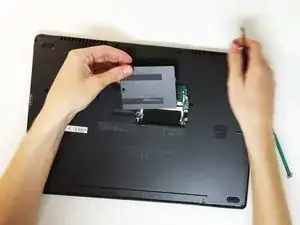

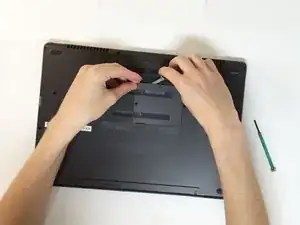

    • Remove the small plastic back plate.

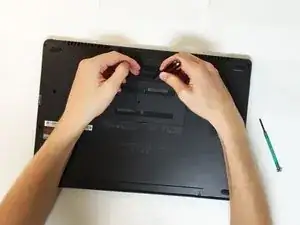

    • Use a small flat head tool or knife to lift the plastic back plate and then use your hands to gently remove the plastic plate.

    Do you know where I could buy a replacement back plate to cover the ram compartment? I seemed to have lost mine. Thanks!

    Alex Gaudet -

  4. c2pCvqKsakFqmBdf
    c2pCvqKsakFqmBdf
    uHFxpSEHhZhZQReQ
    qIjLHHk5QWtNDx1S

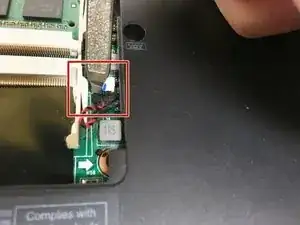

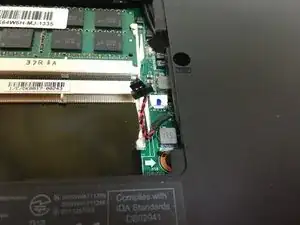

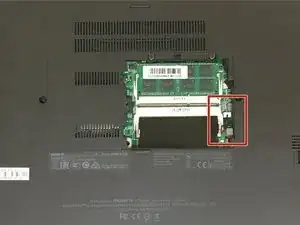

    • Disconnect the small red and black cord connecting motherboard to the case using a small flathead screwdriver.

    • This cord is located under the back panel which was removed in the previous step.

    • Do not pull directly on the wires, instead gently pry the connector apart.

  5. sej5CHFnDnwCGEam
    sej5CHFnDnwCGEam
    M4UXRXbOPJrMonFu

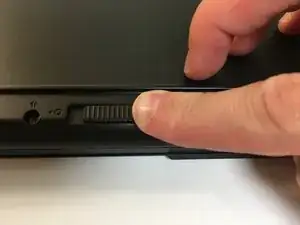

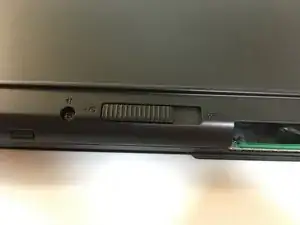

    • Slide the switch on the base of the laptop from locked to open.

  6. ZBkspSdETWE1KgXg
    ZBkspSdETWE1KgXg
    LSwRkuqodxUncPFO

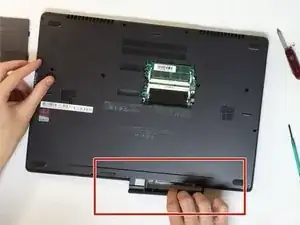

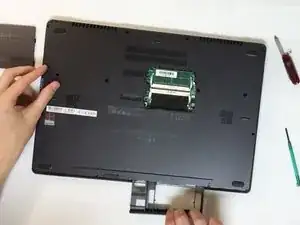

    • Remove the removable drive bay or CD drive, whichever one is currently present in the laptop.

  7. ctRNhNEorjxLNvMX
    ctRNhNEorjxLNvMX
    kpfTDf3rMTPoiZFc

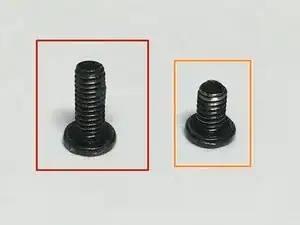

    • Remove the 8 longer 7.0mm screws from the top and bottom of the laptop.

    • Remove the 6 shorter 5.0mm screws from the middle of the laptop.

  8. OgXDbaCEp1HdpDnT
    OgXDbaCEp1HdpDnT
    cVoGXOgiXiJbS4bs
    BUAWmgfQDqPWFpXH

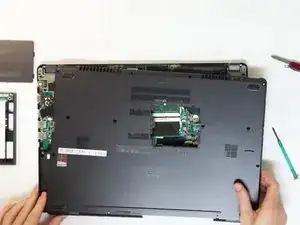

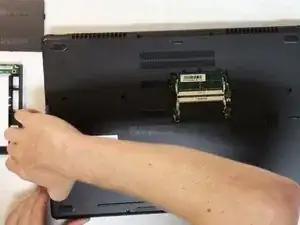

    • Beginning from the hole created by removing the drive bay in step 6 and moving in a counterclockwise direction, begin separating the base by gently prying between the seam separating the base from the mother board, using either your fingernail or a small flathead tool.

    • During this process you may hear small pops which is just the plastic releasing from the motherboard.

  9. 1TOlpZRhP1Xis2WG
    1TOlpZRhP1Xis2WG
    gblMEjHyx5WAK5Fk

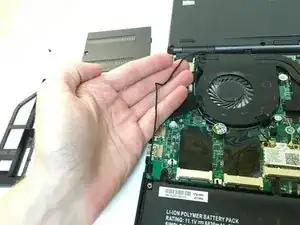

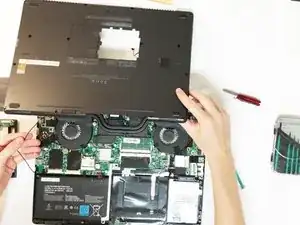

    • Carefully place base plate aside, ensuring not to disconnect the wire which runs from the motherboard to the baseplate.

    • There is no need to disconnect the cable connecting the motherboard to the base of the computer as it is long enough to not interfere with the rest of the guide.

  10. xK3HSqvT4DqhO6gD
    xK3HSqvT4DqhO6gD
    iAnWXvZbCtYE1IlS
    jlJRh1cfW4Hk4UQd

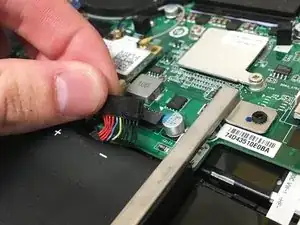

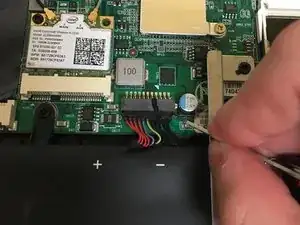

    • Disconnect the battery from the motherboard by gently prying the plastic connector apart

    • Do not pull directly on the battery wires, first disconnect the plastic connector.

    • You do not need to remove the battery from the laptop, just make sure the connector is disconnected.

    • This is done to avoid electric discharge and possible damage to internal component.

  11. KvlnXWyTqBn4CodI

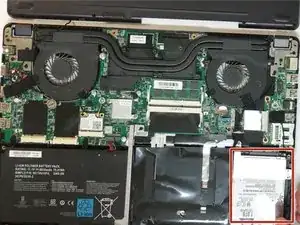

    • Locate hard drive in the bottom right of the laptop.

  12. EnVb5qeGLR3swNUw
    EnVb5qeGLR3swNUw
    jbX3A42R1AgWVfwl

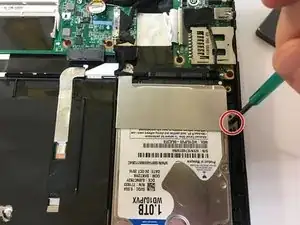

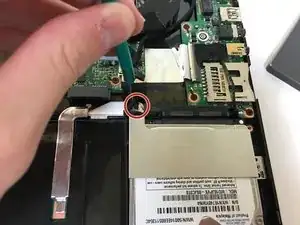

    • Remove the two screws holding the hard drive in the laptop.

    • There is still a SATA cable holding the hard drive in the laptop so be careful after removing the screws.

  13. IDGeIQhApEFKn5f3
    IDGeIQhApEFKn5f3
    j63TJAbcZJY2uOmS
    rlJRA3lQDXYMYHS4

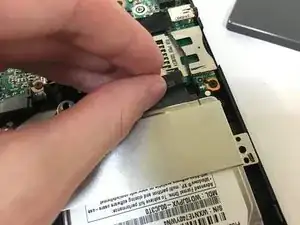

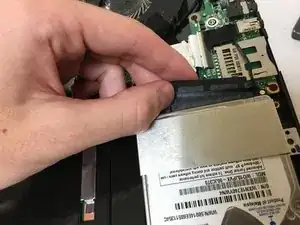

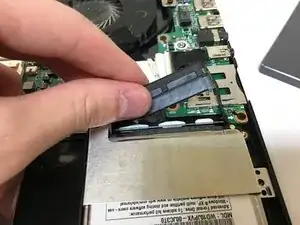

    • Remove the SATA connector by gently prying the far right, and then the far left of the connector until it slides out of the hard drive.

  14. KgKRpeHOSfqRFdQy
    KgKRpeHOSfqRFdQy
    ltAqUsIwPTX5THKx
    eKtGwcIdYjpkAOAv

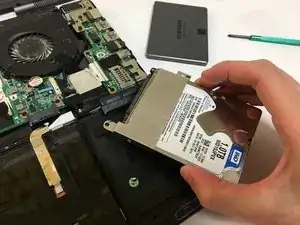

    • Remove the hard drive from the laptop by picking it up.

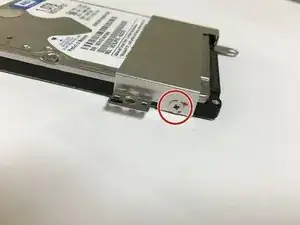

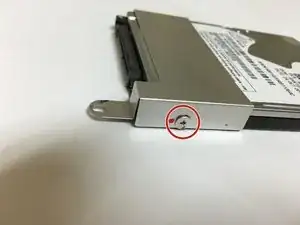

    • Un-screw the metal holder by removing two more screws, one on either side of the hard drive.

  15. 5k5mM5RHmBGf6TIO

    • If replacing with an identical hard drive, repeat all the steps backwards and if necessary, reinstall windows.

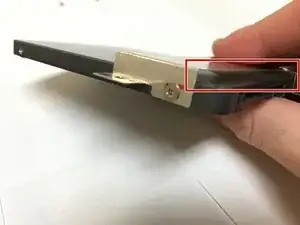

    • If replacing the hard drive with a solid state drive, there may be a small gap between the metal holder and the top of the SSD, but this is normal.

Abschluss

To reassemble your device, follow these instructions in reverse order.
