GoPro HD Hero2 SD Board Replacement

Geschrieben von: David Hodson
  • Kommentare: 0
GoPro HD Hero2 SD Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

This guide is a prerequisite to removing the rear case and the SD board.

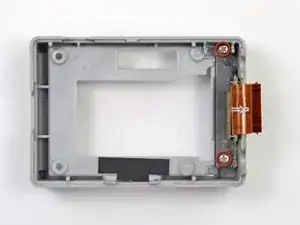

  1. l6qvHbllaThS3WeQ

    • Remove the two 5.8 mm Phillips #00 screws securing the SD board cover to the rear case.

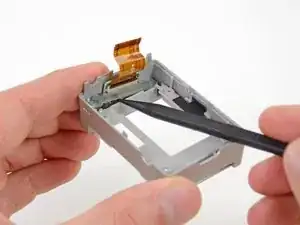

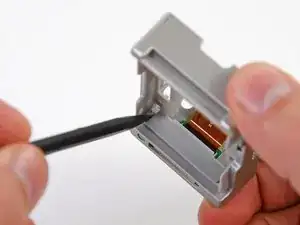

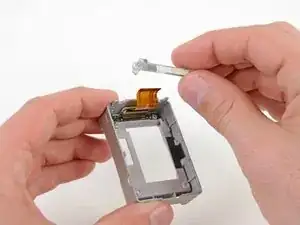

  2. PRlQt3SFyTiblNGn
    PRlQt3SFyTiblNGn
    BBXFAjcpYlILJQ5j
    2OyxXIKy1JTQOPoE

    • Turn the rear case over so that the SD card slot is facing you.

    • Use the tip of a spudger to push the bottom of the SD board cover up and out of the rear case.

    • Turn the rear case back over.

    • Lift the SD board cover out of the rear case with the tip of a spudger and remove it.

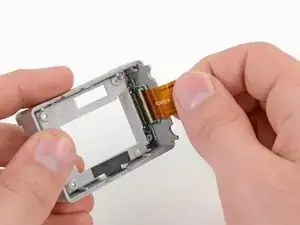

  3. vMVfNvPACoNaRJMh
    vMVfNvPACoNaRJMh
    MI11Oj4sBODURSVD

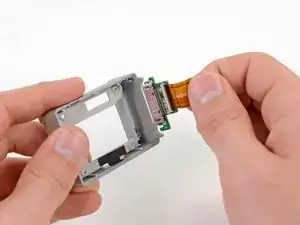

    • Grasp the SD board ribbon cable gently and pull the SD board out of the rear case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
