Einleitung
If you have tried troubleshooting your camera and concluded the reason is because of a dysfunctional component inside the camera, then use this guide to take your first step towards repairing your device!
Werkzeuge
-
-

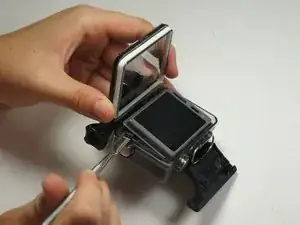

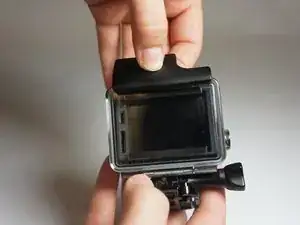

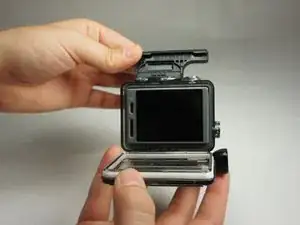

Pop up and pull back on the clip to remove the screen cover and expose the back panel with the touchscreen.
-
-
-

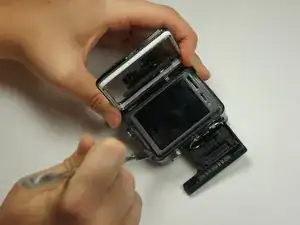

Use the metal spudger to pry around the perimeter of the panel.
-

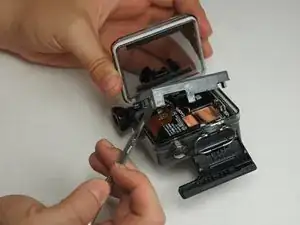

Pry the panel upwards by inserting the metal spudger into the corner crease between the panel and camera shell.
-
-
-
Pry around the panel to ensure it is not attached to the device.
-

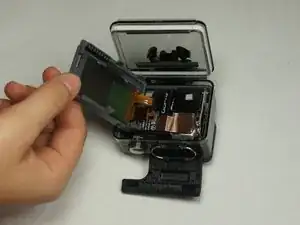

Move the panel to the side so you can access the internal components.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
