Einleitung

Use this guide to replace the LCD housing on your GoPro Hero3 Silver.

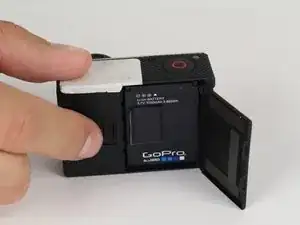

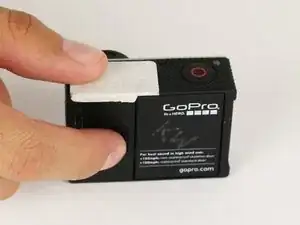

  1. QdMGnFPjPexIVCQT
    QdMGnFPjPexIVCQT
    eal1RmUTUZpAqoYl
    • Pull back on the tab on the back of GoPro to open the battery cover.

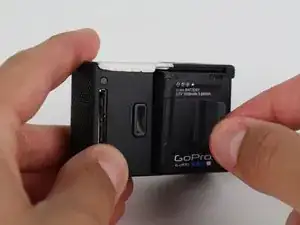

  2. yv6X4FnK3cUQJpKB
    • Pull the battery out using the tab.

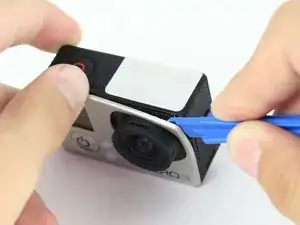

  3. fllTHFYVlQTYo6ci
    fllTHFYVlQTYo6ci
    nVrXdYjGxiQBeEwf
    • Use the plastic opening tool to remove the faceplate.

    • There is some adhesive and clips so be careful and the faceplate should pop right off.

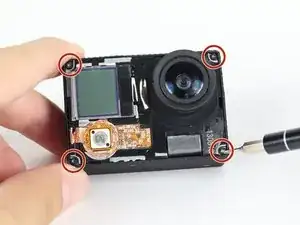

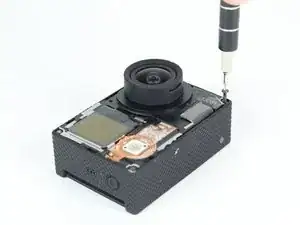

  4. GuwOhWRoDbah41vi
    GuwOhWRoDbah41vi
    M2bDAtx1gWJDLakC
    • Now that the faceplate is off, it is time to remove the 4 screws on each corner.

    • Use the T4 tool bit from the iFixit toolkit in order to remove the 4 screws on each corner.

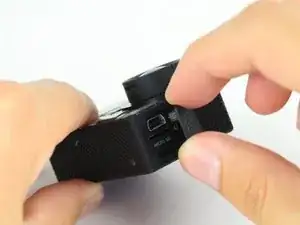

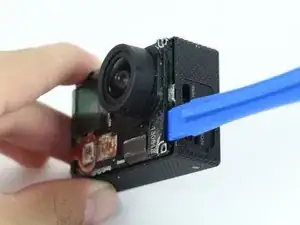

  5. rTSZa2TsCQBPWw34
    rTSZa2TsCQBPWw34
    eBjyvphaOdahYUeh
    • Note: Make sure you remove the door cover of the USB, mini HDMI, and SD port before. Separating the motherboard will be easier.

    • Using the plastic opening tool, slowly pry open the motherboard assembly.

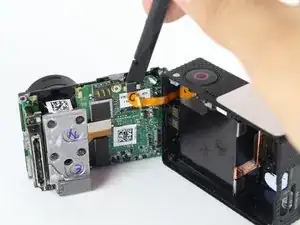

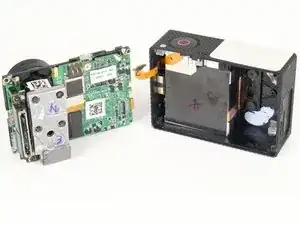

  6. CCoT6A2RNVaGGkHs
    CCoT6A2RNVaGGkHs
    s2nDrZD3J4oZLCAG
    • Use the spudger to gently pry off the connector of the housing to the motherboard.

    • You should now have the motherboard assembly and the housing separated.

    At this point you can easily change the LCD assembly by unplugging the ribbon and removing the existing screen. No need to proceed further if you're only replacing the screen.

    Nick Goulet -

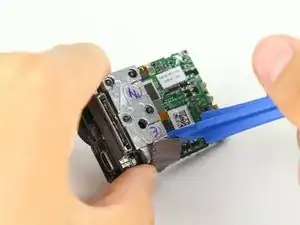

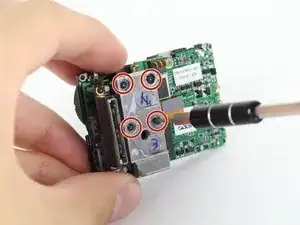

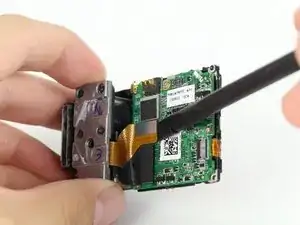

  7. whxyKcTsx55CUHor
    whxyKcTsx55CUHor
    uTsnMCNUSdUBwtPe
    AsgUqMVeR2WA2jSS
    • Use the spudger to remove the heat shield tape and detach the image sensor from the motherboard.

    • Using the T4 Torx toolbit, remove the 4 screws that connect the sensor to the lens.

    • Remove the silver connector of the image sensor from the motherboard using the spudger to pry it off.

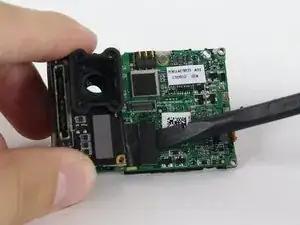

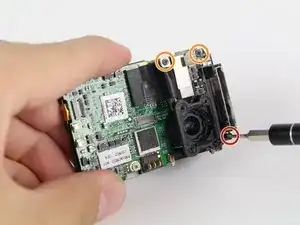

  8. 1XqvNRHgrKeQVkGN
    1XqvNRHgrKeQVkGN
    wnxlJSTPWqfWynmu
    PeNM6KIdcLRV3bPf
    • The media adapter is attached to the motherboard via 3 screws:

    • x1 T4 Torx

    • x2 Phillips #00

    • There's a little silver bracket that is held down by the Phillips #00 screw so be careful not to lose it.

    • With a little prying, use the spudger to detach the media adapter's connector from the motherboard.

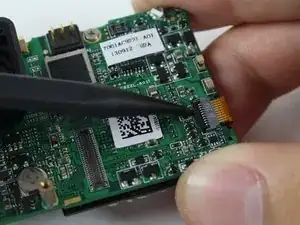

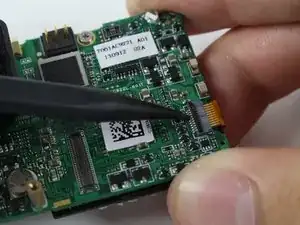

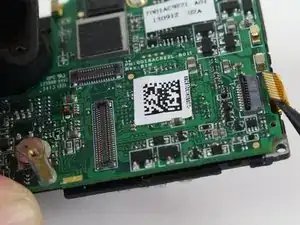

  9. T16toZwYMZBdPgHa
    T16toZwYMZBdPgHa
    ZR4XJQbnS6txruIZ
    qnGcfFfGeZ4QWmIb
    • Use the spudger to lift the black tab up to unlock.

    • Then remove LCD screen connector by sliding out.

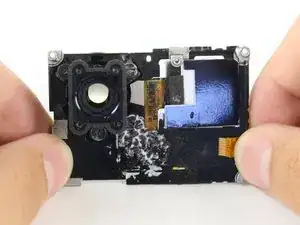

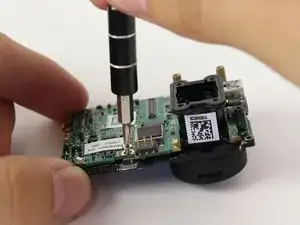

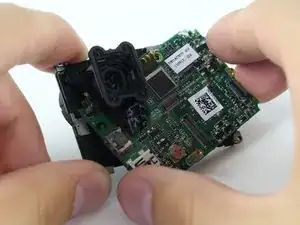

  10. dLem5FAHnfw6jX21
    dLem5FAHnfw6jX21
    u5GBnYLF1nHDJqTU
    UEanmRPjSanVRrJF
    • Using the Phillips head bit, remove the silver screw near the the top edge of the board.

    • Separate the LCD assembly by pulling away the motherboard.

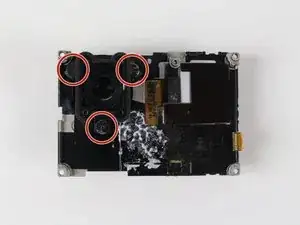

  11. 6yEZOQCxXTp4qx5Z
    6yEZOQCxXTp4qx5Z
    FYIeSkwGUqHJQ2db
    • There are 3 Phillips #00 screws holding the lens onto the LCD housing that need to be removed.

    • Our screw on the top right is stripped, which is why it looks different. However, they will all look the same in your device.

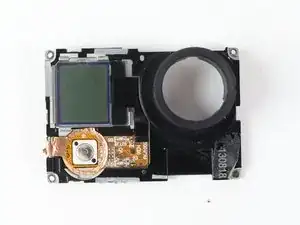

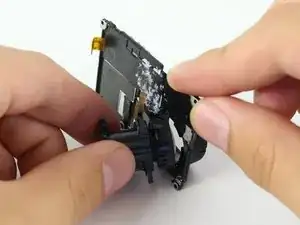

  12. hEKkVEtqICEt2EJP
    hEKkVEtqICEt2EJP
    4xofeooLZdioMmNZ
    • Carefully remove the camera lens from the LCD Housing.

    • Now you have the LCD housing removed!

Abschluss

To reassemble your device, follow these instructions in reverse order.
