Einleitung

  1. QdMGnFPjPexIVCQT
    QdMGnFPjPexIVCQT
    eal1RmUTUZpAqoYl
    • Pull back on the tab on the back of GoPro to open the battery cover.

  2. yv6X4FnK3cUQJpKB
    • Pull the battery out using the tab.

  3. U6ZLbJotkACNuTuL
    U6ZLbJotkACNuTuL
    VMsCwuRw63DPpg3A

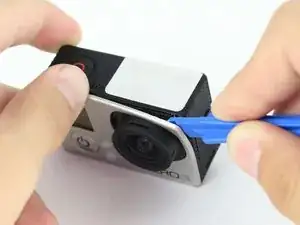

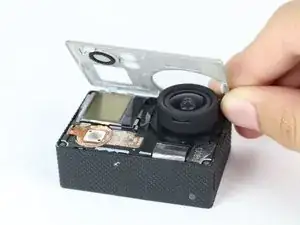

    • Use the plastic opening tool to remove the faceplate.

    • There is some adhesive and clips so be careful and the faceplate should pop right off.

  4. WYimQcmICD4mxiUu
    WYimQcmICD4mxiUu
    4SFiAxhsDDVKKNkC

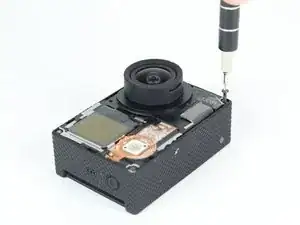

    • Now that the faceplate is off, it is time to remove the 4 screws on each corner.

    • Use the T4 tool bit from the iFixit toolkit in order to remove the 4 screws on each corner.

  5. fGFwhKuE6eueoxGL
    fGFwhKuE6eueoxGL
    CQEZYslpFlwrJ6QY

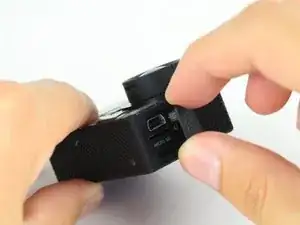

    • Note: Make sure you remove the door cover of the USB, mini HDMI, and SD port before. Separating the motherboard will be easier.

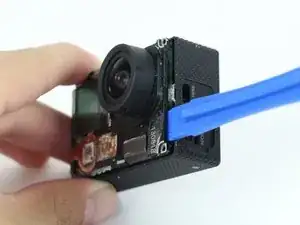

    • Using the plastic opening tool, slowly pry open the motherboard assembly.

  6. odHrUlcYOcSWoKpq
    odHrUlcYOcSWoKpq
    VCSZcKyXegIldKyE

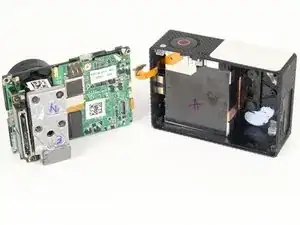

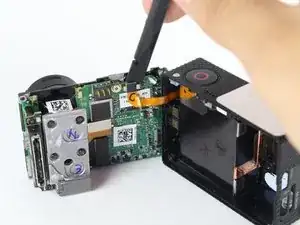

    • Use the spudger to gently pry off the connector of the housing to the motherboard.

    • You should now have the motherboard assembly and the housing separated.

  7. QC3yftQeSeCZrpQQ
    QC3yftQeSeCZrpQQ
    BrVZLPMX24F2HPXW
    ulIrADWYVBUE5uVP

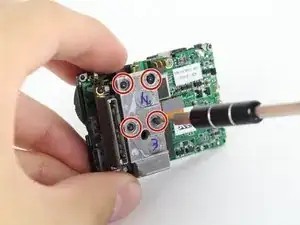

    • Use the spudger to remove the heat shield tape and detach the image sensor from the motherboard.

    • Using the T4 Torx toolbit, remove the 4 screws that connect the sensor to the lens.

    • Remove the silver connector of the image sensor from the motherboard using the spudger to pry it off.

  8. SD5f1NlBcpCTsYYT
    SD5f1NlBcpCTsYYT
    1DqHahJmVHAN1sjw
    1MFftuHYYshEgvDb

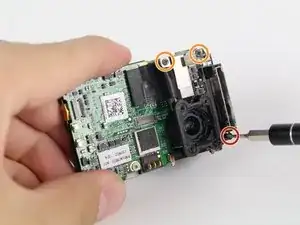

    • The media adapter is attached to the motherboard via 3 screws:

    • x1 T4 Torx

    • x2 Phillips #00

    • There's a little silver bracket that is held down by the Phillips #00 screw so be careful not to lose it.

    • With a little prying, use the spudger to detach the media adapter's connector from the motherboard.

  9. hh5vIB6TlvuXRM1C
    hh5vIB6TlvuXRM1C
    YEmUdsbTICc1kjZj
    iTfRfwPuCncEPvFY

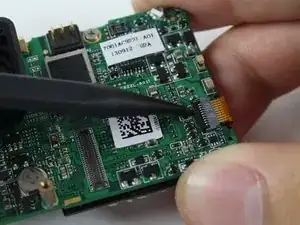

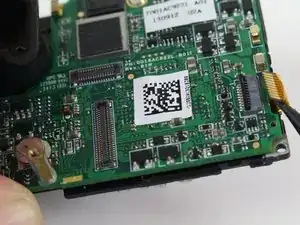

    • Use the spudger to lift the black tab up to unlock.

    • Then remove LCD screen connector by sliding out.

  10. aRB46MjDACLXeP1j
    aRB46MjDACLXeP1j
    A2cPsCCoHTxbvPkC
    YF2XweDNBmYX4kQP

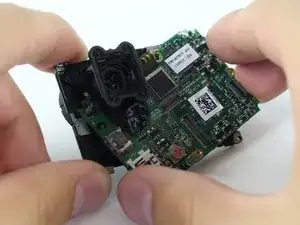

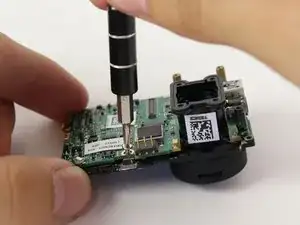

    • Using the Phillips head bit, remove the silver screw near the top edge of the board.

    • Separate the LCD assembly by pulling it away. You should have the bare motherboard!

    hello , what type of motherboard should buy for this model Hero 3 Silver ? thanks

    neacsuraduf -

Abschluss

To reassemble your device, follow these instructions in reverse order.
