GoPro Hero4 Black Camera Sensor Replacement

Geschrieben von: Jeffrey Goethe
  • Kommentare: 14
GoPro Hero4 Black Camera Sensor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 25 Minuten

Einleitung

This guide will show how to replace the camera sensor. The camera sensor collects light to create the image. If your pictures are blurry or low on brightness, the camera sensor may need a replacement.

  1. Ad6RKFvVK1EuCJCA
    Ad6RKFvVK1EuCJCA
    AwnGRbTI1iXlvZOw
    2IgKYe2mHSVjYEtP

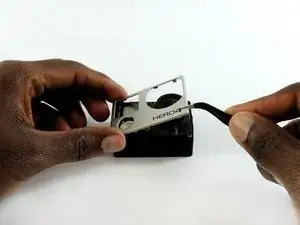

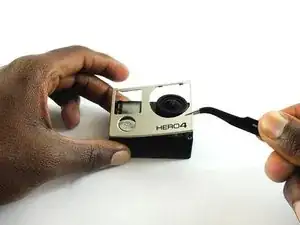

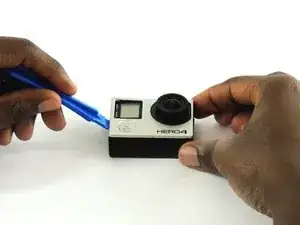

    • Remove the faceplate by carefully prying around the edge using a plastic opening tool. Loosen the clips on the edge, then pull the faceplate off.

    • Use the tweezers to lift the faceplate from the rest of the device.

    • The power button on the front of the GoPro may pop off. Ensure to align it properly during reassembly.

  2. 3dRO6AHP5BsDgpCX
    3dRO6AHP5BsDgpCX
    1Jt5QZUvVuxhAvbh

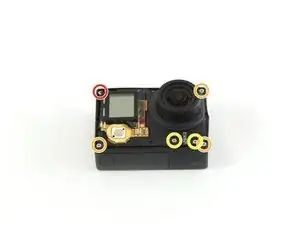

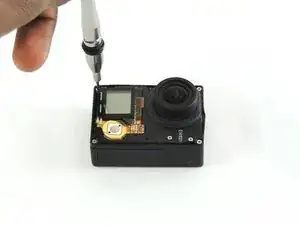

    • Using a #00 Phillips head screwdriver, remove the following screws:

    • One 4.6 mm screw

    • Three 8.2 mm screws

    • Two 6.1 mm screws

    Any more detailed specs on these screws available? Need to but a replacement set, where to buy? How can I find them, size of the head, and the depth etc! Thanks!!

    bredekorsmo -

    Please note the 4.6 mm screw goes aver the battery door not next to the screen.

    Peter Murphy -

    +1 on the 4.6mm screw being bottom left not top left

    Piers Goodhew -

    ´+1, broke my shell because of this.

    Sara Väinölä -

    There is absolutely no need to remove those 2 screws under the lens… -.-

    Krzysztof Gallus -

  3. waYvGOsr3maDBtKY
    waYvGOsr3maDBtKY
    tNkFMdWsAoJmfsLl

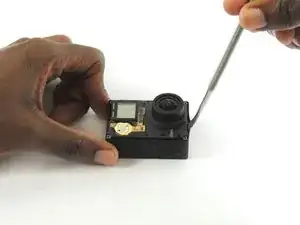

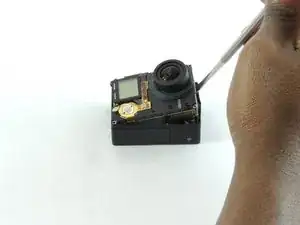

    • Insert a metal spudger between the back plastic housing and the camera board assembly. Working around the edge to be careful of the inner components, carefully remove the camera.

  4. FqANrFFnGecKWn5M
    FqANrFFnGecKWn5M
    bAVcUhNIFMsKANof
    XnLdBPQidvnpP5Sg

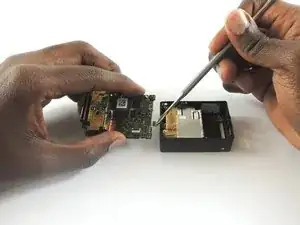

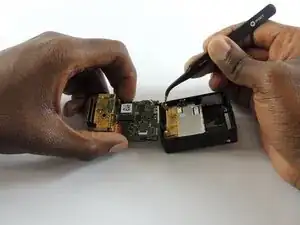

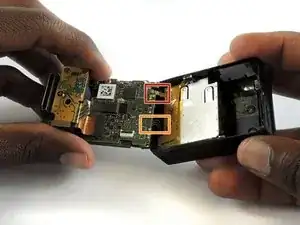

    • Using tweezers, remove the ribbon strip by pulling on it. This will remove the connection.

    • Push down on the three wires with the metal spudger and the clip will disconnect from the motherboard.

    • The clip must be pulled up and away from the motherboard. Attempting to slide it out will damage the clip.

    • During reassembly, remove the black tape on the ribbon cable, turn the camera upside down so you can see the port, and reinsert the cable with tweezers. It's a lot easier!

    Removing the tiny gold ribbon strip and the wires from the right hand side as shown in the image is an unnecessary step to change out the lens. In fact it is recommendable to NOT remove these, especially the gold ribbon strip that is shown in the red box. It is very difficult to get this ZIF cable back in place once it has been removed. Simply open the camera carefully so as not to pull on this cable and the wires and proceed with the other steps.

    Greg Ryder -

    I agree that the 2 cables shown above do NOT need to be removed in order to replace the image sensor. Just keep the internal assembly (circuit boards) close to the black housing and at a 90 degree angle. Don’t put any strain on the cables though! You can still access the 4 screws holding the sensor board in place as well as pull up the connector attaching the sensor to the mainboard. You’ll save a lot of time (and headache) by leaving those cables attached.

    Mark Shelton -

    If you are having trouble connecting the Ribbon cable in particular, use tape to hold buttons in place, remove battery housing & connect the cables up to the battery housing. Then carefully reinsert the battery housing, lay the motherboard down on the casing slightly overhanging the socket end to get to the screw holes.

    Peter Murphy -

    Oh my god ! this ribbon strip is the devil ! I turn mad !!!!!!!

    kreypo -

    those ribbon-ports have a lever to release and secure ribbon. DO NOT PULL directly nor insert ribbons without pulling levers up. once they are on right place, push levers down again (one for each ribbon)

    Carlos Ponce -

    I failed on reinserting the ribbon cable here. The “ZIF” port under the LCD was seemingly glued shut, and I ended up damaging the cable trying to reinsert it. I recommend trying one of the approaches above, including leaving these cables connected or removing the battery module from the case to make this step easier.

    Sparr Risher -

  5. wh5JI4XVDGXonYoi
    wh5JI4XVDGXonYoi
    Kgau2LkCDcVLm2bF
    Mr6XYqPShsbPHOlk

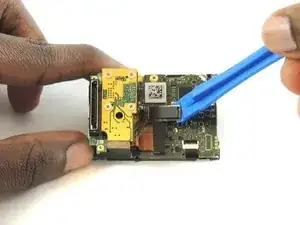

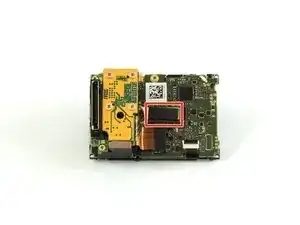

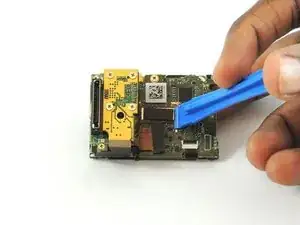

    • Using a plastic opening tool, separate the camera sensor's connector from the motherboard.

  6. a5kPpldElNcZINu2
    a5kPpldElNcZINu2
    XnFLqH6wcuCs41pl
    UNtMD24Qr3YnFWrJ

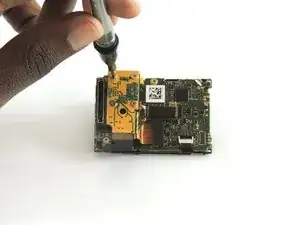

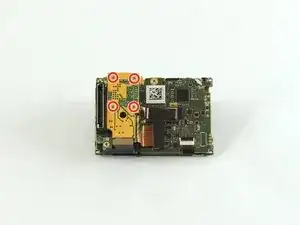

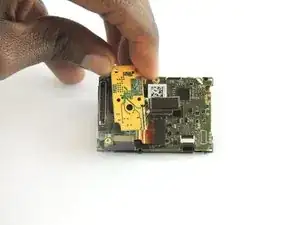

    • Using a #00 Phillips head screwdriver, remove the four 3.0mm screws holding the camera sensor.

    good job!

    only it’s unnecessary to unscrew the couple of 6.1 mm screws of yellow circles in this kind of fixing, but dissipator remain in position, with another screw on the other side.

    Daniele Ribolla -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jeffrey Goethe

Mitglied seit: 20/02/17

665 Reputation

2 Kommentare

not easy to return the ribbon back to its place! it’s easier to throw your gopro after doing this.

popoypoi22 -

Hi, is the sensor for black and silver same? Thank you

Jakub Kunický -
