GoPro Hero5 Black Battery Housing Replacement

Geschrieben von: Christopher Adams
  • Kommentare: 7
GoPro Hero5 Black Battery Housing Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

15 - 20 Minuten

Einleitung

In this guide, you will be removing the battery housing from the back housing. The GoPro Hero5 Black is waterproofed with plenty of adhesives. By completing this guide, you will have to remove the adhesive and your GoPro will no longer be waterproof.

  1. wqVqafNBoLH1PmBZ
    wqVqafNBoLH1PmBZ
    CZnGNSxZUJh4YPa5
    ZNDmoBFQyQGj1xqA

    • While pressing the button on the bottom of the GoPro, slide the battery door to the side to pop it open.

  2. BVGCiQtBPYK4HA2f
    BVGCiQtBPYK4HA2f
    C2DcclxGxAIWYt4O
    CKDEXUHbcni5lDfs

    • Grab the plastic flap on the battery and pull the battery out.

  3. 5ANYshnWRnqSX2WV
    5ANYshnWRnqSX2WV
    WEDIOBobFpV3eIIE

    • Pull and twist the lens cover right or left until it pops off.

    • The lens cover is secured tightly and might be difficult to twist off.

    レンズを回すには爪などをレンズカバーと本体との隙間に入れて、手前に引き出してから回転させます。

    Taizo Yamamoto -

    Go around the gap between the lens cover and camera body with a thin spludger to open a small gap and the cover will twist off easily.

    Paul -

  4. LIUybTfceCOWdd12

    • This step is not necessary but will make the process of removing the faceplate much easier.

    • Refer to the iOpener instructions for how to heat up and use the iOpener.

    • Apply the heated iOpener to the front of the GoPro for a few minutes to melt the adhesive under the faceplate.

    • The heated iOpener is very hot and can burn your hands. Avoid burns by using towels or gloves to hold the iOpener.

  5. FWDKpAyGtEigTFmN
    FWDKpAyGtEigTFmN
    asUlRbMfROnKRWke
    LMXH5rEmOLDalNRj

    • Starting with the edges, use the spudger to pry off the faceplate.

    • The faceplate is held down with adhesive and may take a while to get off.

  6. rvOjAToNgLq6baHA
    rvOjAToNgLq6baHA
    3YOvo3BuwPdI32Ty

    • Remove the six T3 Torx screws.

    Where can I get the screw driver

    subashzeeq -

    Mine are actually T4 screws.

    John Hahn -

  7. ISictWQTJWObHcFc
    ISictWQTJWObHcFc
    M2unCn3HEFa1WluF
    kdOxtbvIRwPEO6SQ

    • Be careful when pulling open the motherboard assembly as it is still connected to the back housing by four cables. The cables may break if stretched.

    • Using the spudger, slowly pry open the motherboard assembly from the LCD side of the GoPro.

    Little FYI ; pry slightly on the side with the LCD. Once it pops, work the other slightly. Then pull the board up and out but remember the cables. THE PICTURE ABOVE WHERE THE METAL SHIELD IS IS THE CAMERA LENS! CABLES ARE ON THE SIDE WHERE YOU BEGIN PRYING.

    stevan othon -

  8. 1hDFQUQ3oKUtS3kj
    1hDFQUQ3oKUtS3kj
    VCGi2IEPP1xFdrUE
    ZnF3wAUGgTQfYWSv

    • Use the flat end of a spudger to pry the three ribbon cables connected to the side of the motherboard.

  9. BG6KZncfTxdJkVG4
    BG6KZncfTxdJkVG4
    WIBHeXUkOKClQhZU

    • Use the flat end of the spudger to pry the battery housing power cable straight up from its socket on the motherboard.

    Does anyone know which are the specs of the connector/socket? Thanks

    Pietro De Caro -

  10. 6ZIMZxYiMZCMDYVp

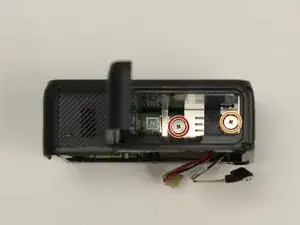

    • Remove the 3mm #000 Phillips screw.

    • Remove the 2mm #000 Phillips screw.

  11. lbKjqZLdauyYhWo3

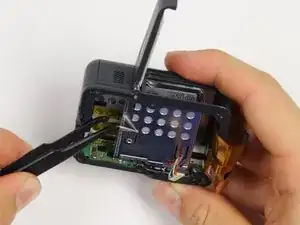

    • Use the tweezers to grasp the housing firmly and pull it away from the three ribbon cables.

    • Pull the battery housing until the half circle grooves on the back housing match up with the grooves on the battery housing.

    • After the screws have been removed from the inside, the battery housing is only held down by adhesive.

  12. LMAkWrQsQSN2vgoU
    LMAkWrQsQSN2vgoU
    mKZgDjpBcnnNwgBD

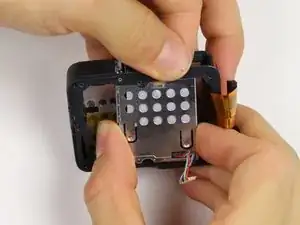

    • Make sure the half circle grooves match up. Otherwise the battery housing will not be able to be pulled out.

    • With your fingers, push from the inside of the battery compartment and pull the battery housing out from the back housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
