GoPro Karma Arms Replacement

Geschrieben von: Kyle Hoff
  • Kommentare: 0
GoPro Karma Arms Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 30 Minuten

Einleitung

Replacing the landing gear in your Karma is a relatively easy task, but requires caution because of small screws. There is a specific tool to help remove the clips connecting the arms but it is not necessary at all. Removing the clips without that tool can be tedious and requires a soft touch so be sure to go slow.

  1. qsYGEQmFSs6VDc3D

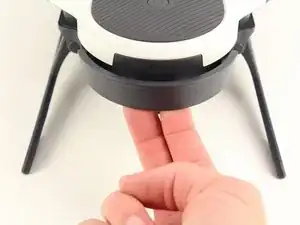

    • Hook your fingers on the tab and pull out the battery.

  2. emI1ly3hOkgfcWIY
    emI1ly3hOkgfcWIY
    5HvFcQheiGuromKT
    kcnRyTY6EnwHJYQl

    • Locate stabilizer collar’s unlock and lock symbols. Twist the collar counterclockwise to unlock the stabilizer from GoPro Karma body.

    • Place the GoPro Karma on a stable surface with the legs folded in and the stabilizer facing towards yourself.

  3. 5DyMMXFZaWuZeiPl

    • Remove the stabilizer by pulling the entire stabilizer out of the drone body.

  4. vgupBwSaPV1V6UmF

    • Flip the drone upside down with the landing gear out.

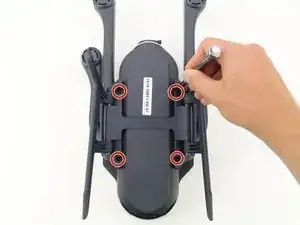

    • Remove the four 1.2 cm long hex screws with a Hex 2.0 screwdriver in the four corners of the landing gear

  5. cNIDDQVYj2nCSDvV

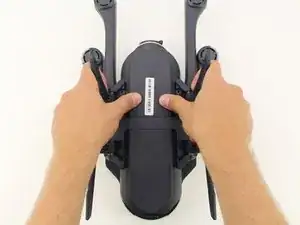

    • Push with your thumb and pull up with your fingers to remove the landing gear.

    • Caution: The landing gear is connected by a thin cable so do not pull too far away.

  6. 4dAenYsZdCfIQPqY
    4dAenYsZdCfIQPqY
    up2L2IvQWMKpN2Jt

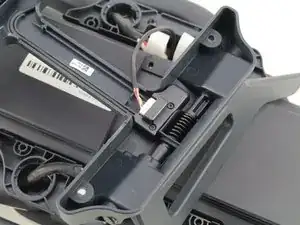

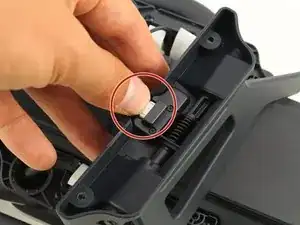

    • Flip over the landing gear and locate the cable connector.

    • Use your thumbnail to disconnect the cable and free the landing gear.

  7. DkOWRY4OFCNxPqmJ

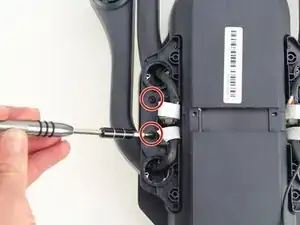

    • Remove the two 1.2 cm long hex screws with a Hex 2.0 screwdriver and set them aside.

  8. nMWTAxk2EJ1tfJGm
    nMWTAxk2EJ1tfJGm
    J2kxxLan2BHBVbUY

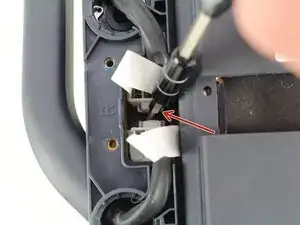

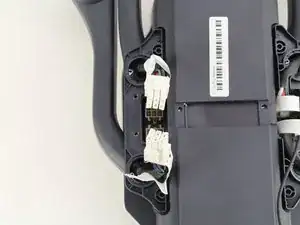

    • Remove both locked connectors by pushing the connector release tool into the hole in the center and pulling up with the white handles.

    • The connector release tool is only included with the purchase of a replacement arm from the GoPro website.

    • If you do not have a connector release tool, use a small screwdriver to push each tab while pulling up with the white handles.

  9. qGOZR2wOSUekQ5re
    qGOZR2wOSUekQ5re
    JlTOdErNVRZ3mDE5
    hSDYOaTuoe2wppGK

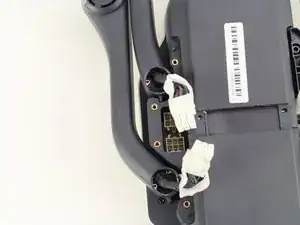

    • Remove the cover plate by pulling up on the side.

    • Feed each connector through the hole and set aside the cover plate.

  10. 13ATZ4ux6bAYcE5U
    13ATZ4ux6bAYcE5U
    gyFMMWCd5FNNAHVT

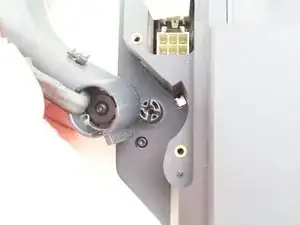

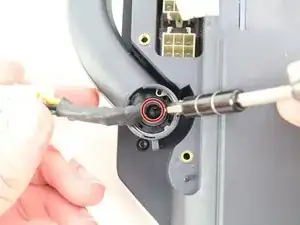

    • Loosen the 2 cm long hex screw in the arm with a Hex 2.0 screwdriver.

    • The screw will not come out but loosen it until it can rotate easily.

    • Pull up and off the broken arm.

Abschluss

To reassemble your device, follow these instructions in reverse order.
