GoPro Karma Harness Replacement

Geschrieben von: Max Verspieren
  • Kommentare: 0
GoPro Karma Harness Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Replacing the harness for the GoPro camera is fairly easy. We will tell you how to remove the stabilizer which holds the harness, how to remove camera from the harness, and how to replace the harness itself.

  1. emI1ly3hOkgfcWIY
    emI1ly3hOkgfcWIY
    5HvFcQheiGuromKT
    kcnRyTY6EnwHJYQl

    • Locate stabilizer collar’s unlock and lock symbols. Twist the collar counterclockwise to unlock the stabilizer from GoPro Karma body.

    • Place the GoPro Karma on a stable surface with the legs folded in and the stabilizer facing towards yourself.

  2. 5DyMMXFZaWuZeiPl

    • Remove the stabilizer by pulling the entire stabilizer out of the drone body.

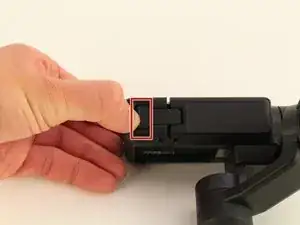

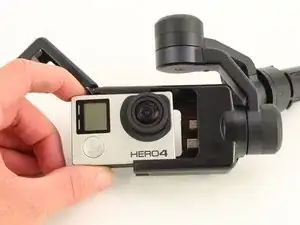

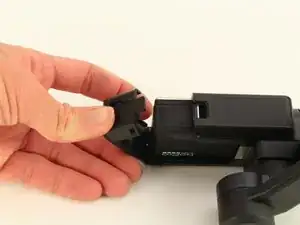

  3. mFHKkFamaQJj6XSj
    mFHKkFamaQJj6XSj
    GhMIPnI3CU1ckNeA
    n1WpjqXhyZKOHDRu

    • Place finger on the tab to open the harness and remove the camera.

    • Be sure to pull the camera straight out lest you damage the connectors.

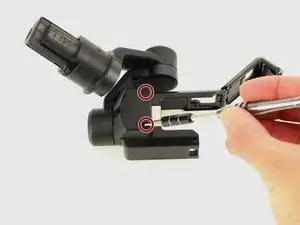

  4. J1sOV1TVDn42KuNL

    • Using a Hex 2.0mm screwdriver, remove the two 12 mm hex screws closest to the harness.

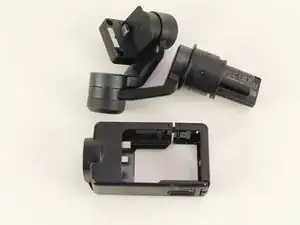

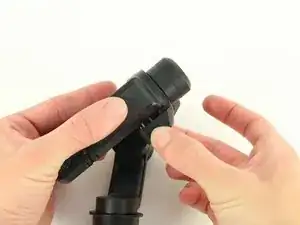

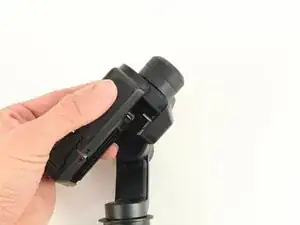

  5. mrYy2VBO6HER6IqT
    mrYy2VBO6HER6IqT
    PeMDQxCyZyHsLgJ1
    Eo2F6kaGLMdSfNmT

    • Pull the harness off of the stabilizer.

    • Be sure to pull the harness straight off lest you damage the connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
