GoPro Karma Propeller Replacement

Geschrieben von: Jay Ingram
  • Kommentare: 2
GoPro Karma Propeller Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

7 - 10 Minuten

Einleitung

The propellers are a very common broken part due to their relative fragility on a drone. Luckily, it is a very easy replacement, and the drone even comes with a few spares. The GoPro Karma wrench is a tool that comes with the drone to hold the motor in place to remove the propellers. Spare ones can be bought on ebay but are not available for purchase from the GoPro site.

  1. qsYGEQmFSs6VDc3D

    • Hook your fingers on the tab and pull out the battery.

  2. emI1ly3hOkgfcWIY
    emI1ly3hOkgfcWIY
    5HvFcQheiGuromKT
    kcnRyTY6EnwHJYQl

    • Locate stabilizer collar’s unlock and lock symbols. Twist the collar counterclockwise to unlock the stabilizer from GoPro Karma body.

    • Place the GoPro Karma on a stable surface with the legs folded in and the stabilizer facing towards yourself.

  3. 5DyMMXFZaWuZeiPl

    • Remove the stabilizer by pulling the entire stabilizer out of the drone body.

  4. fRurh5ssbVLDCTri
    fRurh5ssbVLDCTri
    JHtVTBEmLZVEqlDD
    aJMoCfOXcTYLYyTx

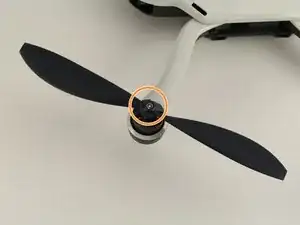

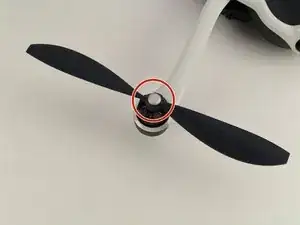

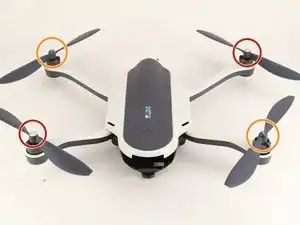

    • Extend the arms and set the drone face up.

    • The front right and back left propellers unscrew clockwise.

    • The front left and back right propellers unscrew counterclockwise.

  5. HXa2L22DLNqWdu23
    HXa2L22DLNqWdu23
    nBkPvKJCOvTXHpPB

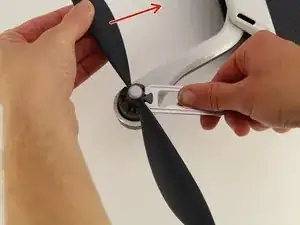

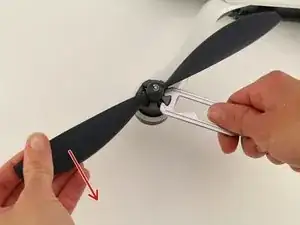

    • Place the GoPro Karma wrench on the motor.

    • Hold the motor in place with the wrench and unscrew the propeller in the indicated direction.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jay Ingram

Mitglied seit: 19/04/18

334 Reputation

2 Kommentare

You got it the wrong way around, to take them off you need to do the exact opposite to what you say.

michael.woelk -

hi, i am trying to fix my Karma. I have to remove the propellers but it is like they are stocked.

I try to unscrew the propellers but i can’t remove them.

Do you know what to do in this case?

Davide Negro -
