Google Chromebook Pixel 2 Fan Replacement

Geschrieben von: Garrett Monteiro
  • Kommentare: 0
Google Chromebook Pixel 2 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

  1. fcCoeRh6ojhkvJtN

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Flip your device over so the bottom panel is facing up.

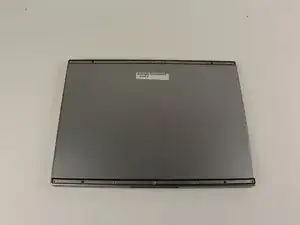

  2. RpQZdyUKrpPV4kJR

    • Peel off the black rubber strips from top and bottom of the back panel.

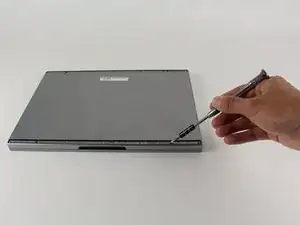

  3. sC1PNfvcxLXkAXQH
    sC1PNfvcxLXkAXQH
    eRIoGfZweP22b6KD

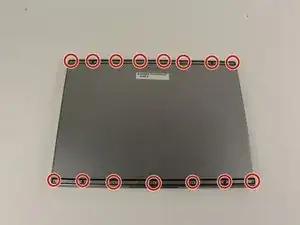

    • Remove the fifteen 3 mm Phillips #00 screws from the back panel.

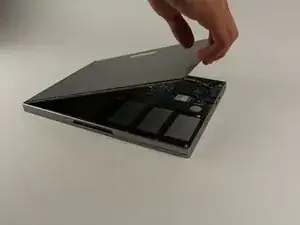

  4. cIpQoRk4GcJuIu6Y

    • Carefully lift the back panel off of the device.

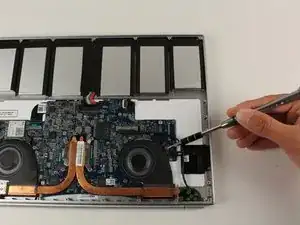

  5. ovfgNTboWZUfEBDq
    ovfgNTboWZUfEBDq
    aojBN2rXtTm6EV3n

    • Remove the three blue 4.0 mm Phillips #00 screws from the fan on the right side.

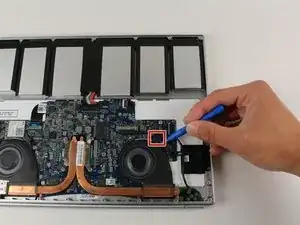

  6. wiM1WRblCKECGDfN

    • Using the plastic opening tool, slide out the right fan’s connector out of the motherboard slot.

  7. o6RPORFjT4X5wtj4

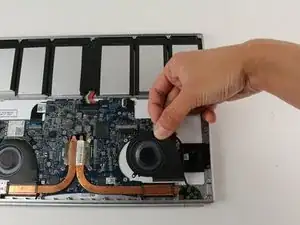

    • Carefully remove lift the right fan out of its slot.

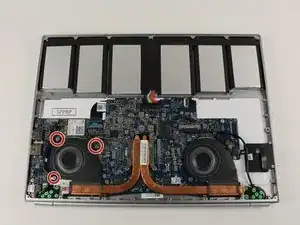

  8. ssCHMHNYB22ICegn
    ssCHMHNYB22ICegn
    JjnJk4OWRrA2dnrF

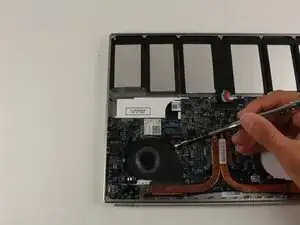

    • Remove three blue 4.0 mm Phillips #00 screws from the left fan.

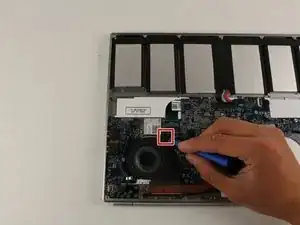

  9. hNBH3Q1G1xQxGSlY

    • Using the plastic opening tool, slide out the left fan’s connector.

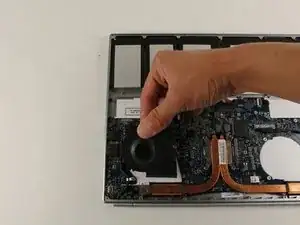

  10. rDew6ALWJenYjaDS

    • Gently lift the left fan out of its slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
