Google Chromebook Pixel 2 Speaker Replacement

Geschrieben von: Garrett Monteiro
  • Kommentare: 0
Google Chromebook Pixel 2 Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace the speakers in the Google Chromebook Pixel 2.

  1. fcCoeRh6ojhkvJtN

    • Working on your device while it is turned on may result in electric shock. Make sure to shut down and unplug your device before you begin.

    • Flip your device over so the bottom panel is facing up.

  2. RpQZdyUKrpPV4kJR

    • Peel off the black rubber strips from top and bottom of the back panel.

  3. sC1PNfvcxLXkAXQH
    sC1PNfvcxLXkAXQH
    eRIoGfZweP22b6KD

    • Remove the fifteen 3 mm Phillips #00 screws from the back panel.

  4. cIpQoRk4GcJuIu6Y

    • Carefully lift the back panel off of the device.

  5. Lp6ofFphsCYcA5v2

    • Remove the three red 4.5 mm Phillips #00 screws from the speaker on the right sight of the motherboard.

  6. KdhoYw1HWvkYDaws

    • Using the plastic opening tool disconnect the speaker wires from the motherboard,

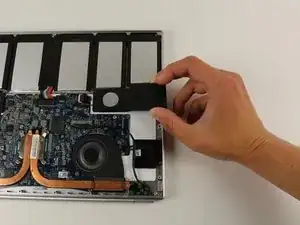

  7. S1e1KUBmBAZExVgj

    • Carefully remove right speaker from the device.

  8. ksIP1JqEaT4bJt5B

    • Using the plastic opening tool, pop out the connector that joins the headphone jack port on the left side to the motherboard.

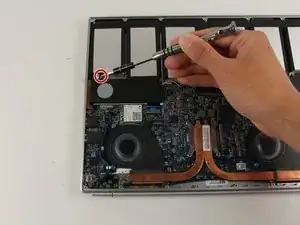

  9. eSltjNKGktS2k6VG

    • Remove the red 4.5 mm Phillips #00 screw from the top of the headphone jack port.

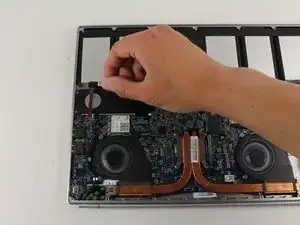

  10. U1tZmWunCwPQT1gw

    • Gently remove the headphone jack port.

  11. N5wmgX1yZ4jx3o2t
    N5wmgX1yZ4jx3o2t

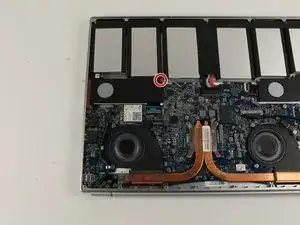

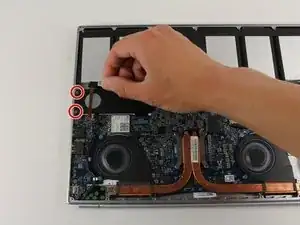

    ILmOO6uoZn2FWOGn

    • Remove the three red 4.5 mm Phillips #00 screws from the speaker.

  12. EFmWq1MFmOZjJNka

    • Remove the left speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
