Google Cr-48 Chromebook Bottom Casing Replacement

Geschrieben von: Robert McLaughlin
  • Kommentare: 0
Google Cr-48 Chromebook Bottom Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 - 15 Minuten

Einleitung

Before starting, please:

  • make sure nothing is attached (such as AC adapter, USB, VGA, audio jack).
  • remove any inserted SD card.

  1. huABA2FiCtnG2Vq3
    huABA2FiCtnG2Vq3
    gnGVSkZRnRx5xsxr
    xMZGgYeYJwN2DqkA

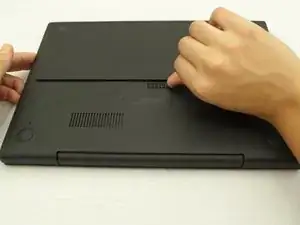

    • Slide the switch on the bottom of the laptop until the battery pops out.

    • Once the battery pops out, you can remove it.

  2. SBv1xHCQtZJUH12x
    SBv1xHCQtZJUH12x
    jcP2VM5oo3hrgmZC

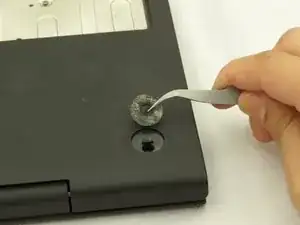

    • Using a pair of tweezers, remove the two rear rubber feet to expose two hidden screws.

  3. HMZRrNHWlCuAB5ES
    HMZRrNHWlCuAB5ES
    b1bx1qpMcZiZU5Yb
    rQm2t2guiDnZ41oS

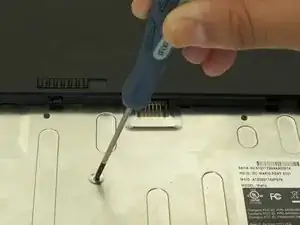

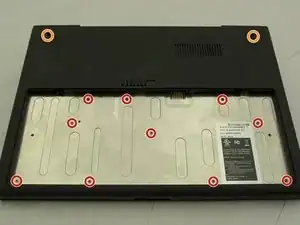

    • Remove ten 3 mm screws in the battery compartment using a Phillips #00 screwdriver.

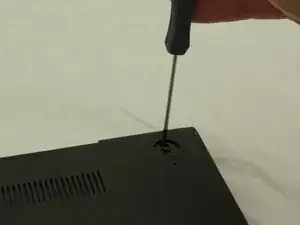

    • Remove two 4.5 mm screws under the rubber feet using a Phillips #00 screwdriver.

  4. OTWCjSmB1UfFgj2d
    OTWCjSmB1UfFgj2d
    kE2yYIRVKnJFyjQC
    lMwRsqSqNVBJVrnx

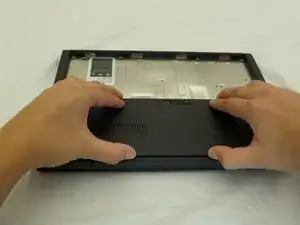

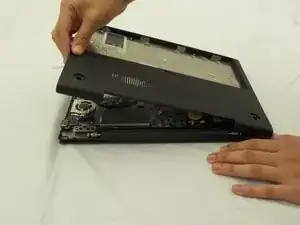

    • Starting where the body of the laptop and the laptop screen meet, pry apart the lower case from the rest of the laptop.

    • The case is easier to remove when separating in a clockwise motion, as seen in the pictures.

Abschluss

To reassemble your device, follow these instructions in reverse order.
