If you want your device to be able to handle multiple tasks smoothly, have faster memory, and boost the efficiency of your workflow, you may want to replace or upgrade your RAM. The following guide shows you how to replace the RAM in your Google Cr-48 Chromebook in seven easy steps.

Your computer's RAM or random access memory gives applications a place to store and access short-term data. RAM is one of your computer's most important components for improving performance. If you notice your system is sluggish, or you have frequent crashes, reboots, blue screens, distorted graphics, or memory errors, it may be due to having too little RAM. Replacing the RAM in your Google Cr-48 Chromebook requires no specific skills and no advanced tools besides a Phillips screwdriver, any pair of household tweezers, and of course your new RAM.

  1. huABA2FiCtnG2Vq3
    huABA2FiCtnG2Vq3
    gnGVSkZRnRx5xsxr
    xMZGgYeYJwN2DqkA
    • Slide the switch on the bottom of the laptop until the battery pops out.

    • Once the battery pops out, you can remove it.

  2. SBv1xHCQtZJUH12x
    SBv1xHCQtZJUH12x
    jcP2VM5oo3hrgmZC
    • Using a pair of tweezers, remove the two rear rubber feet to expose two hidden screws.

  3. HMZRrNHWlCuAB5ES
    HMZRrNHWlCuAB5ES
    b1bx1qpMcZiZU5Yb
    rQm2t2guiDnZ41oS
    • Remove ten 3 mm screws in the battery compartment using a Phillips #00 screwdriver.

    • Remove two 4.5 mm screws under the rubber feet using a Phillips #00 screwdriver.

  4. OTWCjSmB1UfFgj2d
    OTWCjSmB1UfFgj2d
    kE2yYIRVKnJFyjQC
    lMwRsqSqNVBJVrnx
    • Starting where the body of the laptop and the laptop screen meet, pry apart the lower case from the rest of the laptop.

    • The case is easier to remove when separating in a clockwise motion, as seen in the pictures.

  5. W4roBOK4EJpIsVnM
    W4roBOK4EJpIsVnM
    EHTEotn4KF2hGHFw
    LYVXVbSRWWDhaGXE

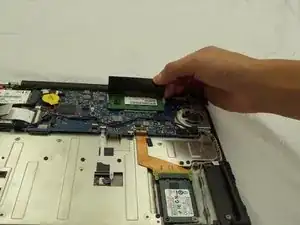

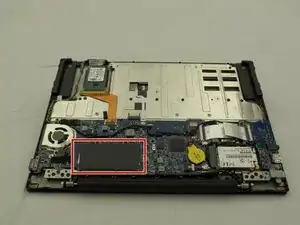

    • Locate the RAM under a black flap alongside where the laptop screen and device body meet.

  6. MQ2DFW3loASlx13o
    MQ2DFW3loASlx13o
    tKytLfqlSgqTyWKH
    iFnJmqNZHdicIIgp

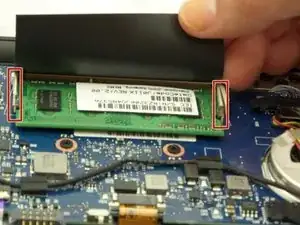

    • Locate the metal clasps on either side of the RAM Card. Using your thumbs, pull the pieces away from the RAM and then the RAM card should pop up.

  7. 3L4gr4unYrHYKbPk
    3L4gr4unYrHYKbPk
    HVOTYWMCDxOfnKsm

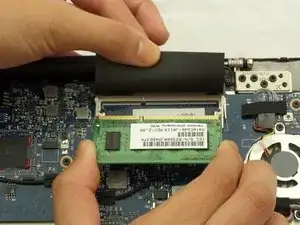

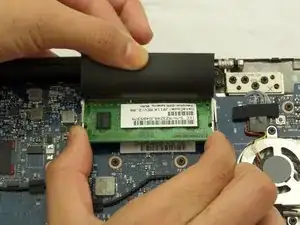

    • Use two fingers to pull the RAM upwards and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
