Google Home Mini USB Power Port Replacement

Geschrieben von: Mia Sulaiman

Kommentare: 10

Google Home Mini USB Power Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

8 Minuten

Einleitung

A guide to change Google Home Mini USB power port.

Werkzeuge

Schritt 2

Remove the rubber bottom as per the Google Home Mini teardown guide.

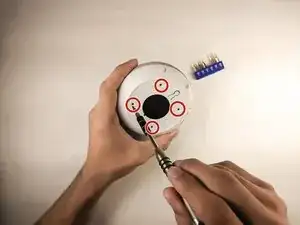

Remove the four 7mm T6 Torx screws from the bottom.

Schritt 3

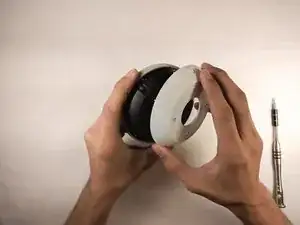

Remove the lower half of the device.
Be careful as a black ribbon cable connects the two halves together.

Black ribbon cable broken. Is there any chance to fix it. Please help. Thank you

Deva Raj - 31/03/21

Schritt 4

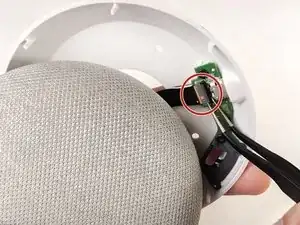

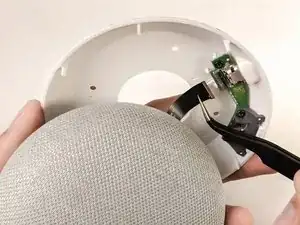

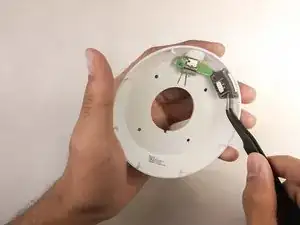

Using a pair of tweezers, unlatch the Zero Insertion Force (ZIF) fastener that connects the ribbon cable to the board.
Flip up and push the ZIF fastener towards outside of the lower case to loosen it.

What if this breaks off. Can i direct connect power.

Hlynur Jonasson - 22/09/18

Where to buy it please tell please

Babu Vlogs - 30/03/19

Schritt 6

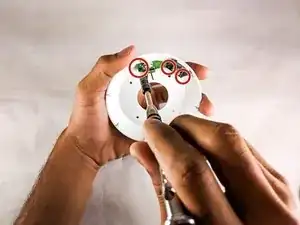

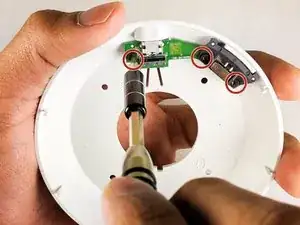

Remove the three 5.3mm T6 Torx screws from the board.

Schritt 7

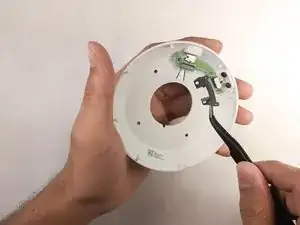

Remove the black metal plate from the board.

Schritt 8

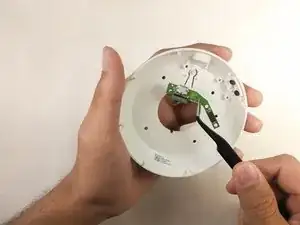

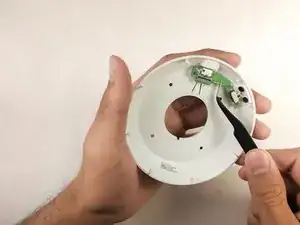

Remove the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.

7 Kommentare

Where I can buy micro USB PCB ?

so_ang - 24/08/18

Where I can buy micro USB PCB ?

Planet Carl - 27/12/19

Would like to know this as well disapointing to have an instruction on how to replace a part, but nowere to buy it.

Wolve 8383 - 15/01/20

Has anyone had any luck buying a replacement part?

Caitlin Barnum - 05/05/20

Just broke mine :-(

Is anyone managed to find a place to buy one?

Jim - 29/08/20

https://www.impextrom.com/en/suplicity-b...

Jim - 29/08/20

If you're able to solder, you can find micro USB ports on Digi-Key.
Forgot to confirm the pin count while mine was taken apart, but would bet it's similar to many common ports such as PN: 10118194-0001LF
