Einleitung
The Google Pixel Buds A-Series are essentially a cheaper version of the Google Pixel Buds 2. One notable difference is that the sound chamber cover is no longer a robust metal grid, but a glued-on very thin and extremely fine mesh.
This mesh can become damaged or clogged with oils and other substances, which can greatly reduce the maximum volume of the buds or create noise and inconsistent audio output due to becoming loose.
Note that Google advises you to not get liquids (other than small amounts of water) on the ear buds, but in my case, ear drops containing alcohol got on the ear buds and caused damage to the mesh.
If the mesh is clogged by oils, there's no way to clean it, as oils won't dissolve in water and using other solvents like alcohol will dissolve the glue holding the mesh. So the only practical approach is to completely remove the mesh.
This guide shows how to remove this protective mesh and restore sound quality. This isn't a complete repair, as there's no practical way to replace the original mesh, but at least this makes the otherwise pretty much unrepairable device usable again.
Werkzeuge
-
-

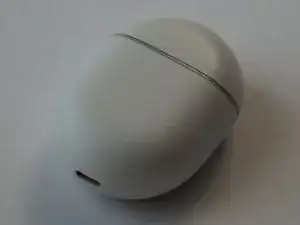

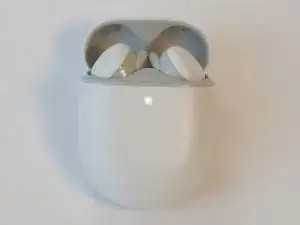

Open the Google Pixel Buds Charging / Carrier case to locate the Buds.
-
Remove the rubber tips.
-
-
-

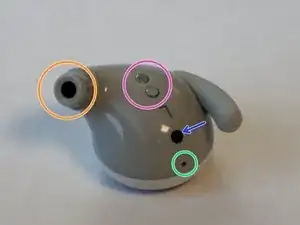

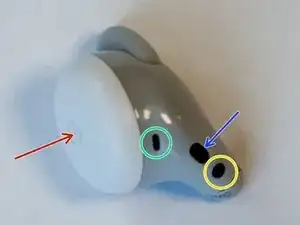

Components of the ear buds:
-
Microphone
-
Vent
-
Charging contacts
-
IR sensor for detecting when the bud is in the ear
-
Touch sensor
-
Sound chamber opening with mesh, our point of interest
-
-
-
Take a small container, fill it with isopropyl alcohol and insert the buds so that the sound chamber opening - but not any other parts - touch the liquid.
-
-
-

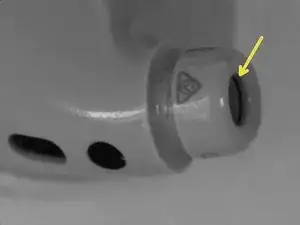

The mesh we're going to remove. The mesh sits in a small groove in the plastic case and is held in by gooey black glue.
-
Groove (after mesh removal)
-

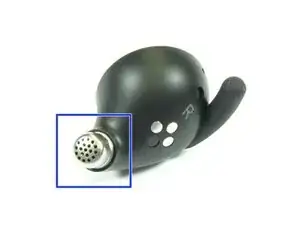

This is the metal grid of the more expensive Pixel Buds 2 model (for comparison).
-
-
-

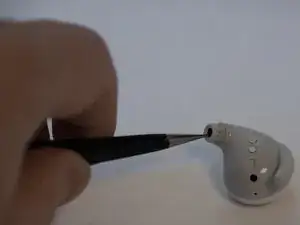

Take a soft brush (like a toothbrush or a small artists brush) and carefully try to push in the mesh.
-
You neither want to create a hole in the mesh nor want to cause damage to the speaker membrane further inside.
-
-
-

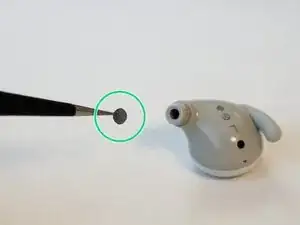

Carefully use fine tweezers to grab the loose mesh and pull it outside.
-
The mesh is likely still stuck to one side of the ridge (assuming you pushed carefully), so it should be easy to retrieve. If not, locate it in the sound chamber and carefully remove it.
-
Most of the glue should have come out together with the mesh. If necessary, carefully remove any remaining residue with the tweezers or a soft brush.
-

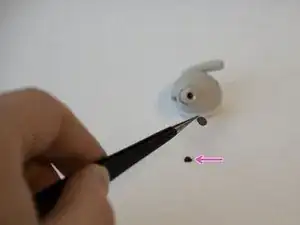

Here's some of the sticky black glue.
-
Reassemble the rubber tips and test the ear buds. Hopefully, the problem should be gone.
The removed mesh could cause increased ingress of dirt and liquids in the future. You could try to create a new cover made out of fine brass mesh for example, but the removed cover mesh also allows you to carefully clean the inside, so this isn't a big deal.
